J6412 Mini Pc Industrial Fanless 6 RS232 RS485 COM Ports Dual LAN GPIO
Mi6412GPC6 J6412 Fanless Industrial Mini PC with 6 RS232/485 COM Ports, Dual LAN & GPIO
| Description | |
| CPU | Intel Celeron J6412, Elkhart Lake, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.6GHz), 1.5M L2 Cache, Intel UHD Graphics (16 EUs). |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 32G) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x Mini PCIe for mSATA SSD |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x mSATA for SSD |
| 1 x M.2 for 4G/5G (B key, Type: 3042/3052)5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization 1 x M.2 for Wi-Fi (E key, Type: 2230) |
|
| GPIO | Yes |
| RS-485 | COM1/2 can be set up as RS-485 |
| AutoStart Jumper | Yes |

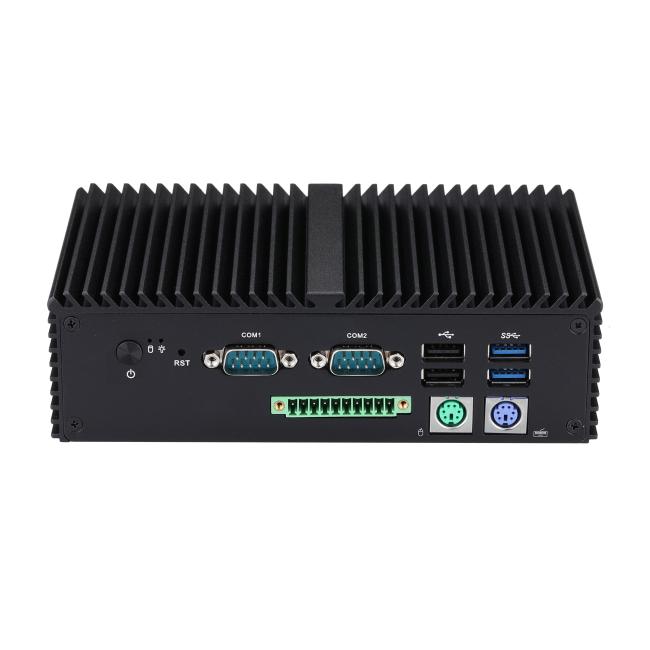

| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| Serial Port | 2 x RS-232 (COM1/2 can be set up as RS-485) |
| LED | 1 x Power LED, 1 x HDD LED |
| GPIO | 1 x GPIO |
| PS2 | 1 x PS2 |
| USB | 2 x USB3.0, 1 x Type C (USB 3.0) |

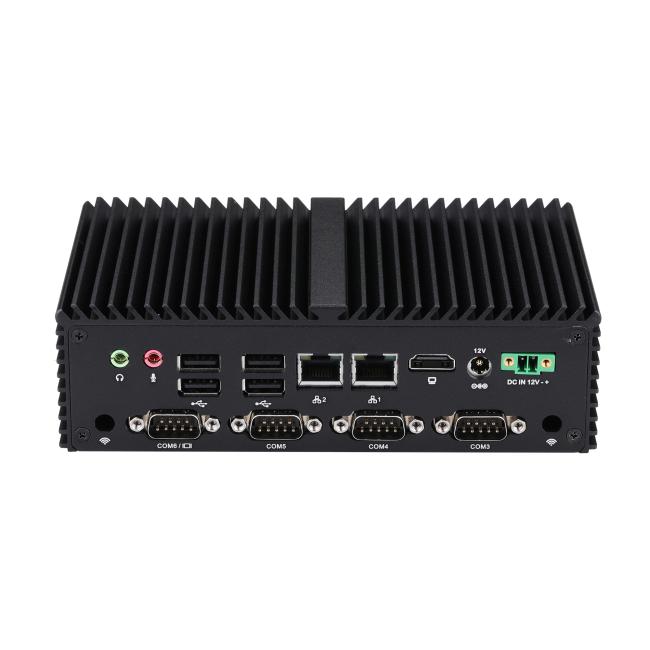

| Rear I/O | |
| Power | 1 x DC Jack |
| Display | 1 x HDMI |
| Phoenix | 1 x 2Pin |
| Serial Port | 4 x RS-232 |
| USB | 4 x USB 2.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 178 x 111 x 52mm |
| Weight | 0.83kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | UEFI win dows 10, UEFI Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |
Product Images & Interface
Product Advantages (Key Features)
-
Extensive Connectivity: Equipped with 6 x RS-232 ports (COM1/2 configurable as RS-485) and GPIO, ensuring seamless integration with legacy industrial equipment and sensors.
-
High-Efficiency Performance: Powered by the Intel Celeron J6412 (Elkhart Lake) quad-core processor, providing a significant performance boost over previous generations while maintaining low power consumption.
-
Rugged Fanless Design: The solid aluminum chassis provides superior heat dissipation, allowing for silent, 24/7 stable operation in harsh, dusty environments without the risk of fan failure.
-
Flexible Storage & RAM: Supports up to 32GB DDR4 memory and dual storage options (mSATA + 2.5-inch SATA SSD), offering a perfect balance between high-speed boot times and large capacity.
Application Fields
-
Industrial Automation & Control: Ideal for CNC machine control, PLC management, and factory production line monitoring.
-
IoT & Data Acquisition: Functions as a robust gateway for collecting data from multiple RS-232/485 sensors and transmitting it to the cloud.
-
Self-Service Terminals: Perfect for powering ATMs, vending machines, and interactive kiosks that require multiple peripheral connections.
-
Smart Traffic & Security: Suitable for intelligent traffic light control, parking management systems, and NVR surveillance setups.
