2400MHz Industrial Mini Pc Rugged Intel I5 6200U 6 COM Ports Industrial Fanless
Mi6200C6 Industrial Mini PC Intel i5-6200U 6 COM Ports Fanless PC
| Description | |
| CPU | Intel Core i5-6200U, Skylake, 2 Cores, 4 Threads, 2.3GHz (Turbo up to 2.8GHz), 3M Cache, Intel HD Graphics 520. |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x M.2 for SSD (M key, Type: 2280) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x Mini PCIe, Full-length for 4G, Half-length for Wi-Fi |
| 1 x M.2 for SSD (M key, Type: 2280) 1 x M.2 for Wi-Fi (E key, Type: 2230) | |
| GPIO | Yes |
| RS-485 | 2, COM3/4 can be set up as RS-485 |
| AutoStart Jumper | Yes |
| Front I/O | |
| Power Button | 1 |
| Serial Port | 1 x RS-232 |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 2 x USB 3.0, 4 x USB 2.0 |
| Rear I/O | |
| Power | 1 x DC Jack |
| Video Output | 2 x HDMI, 1 x VGA |
| Serial Port | 5 x RS-232 |
| USB | 2 x USB 3.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 221 x 121 x 62mm |
| Weight | 1.35kg |
| Packaging Dimension | 285 x 260 x 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | win dows 10, Linux, win dows 7 (Only for 6th Gen Skylake) |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |

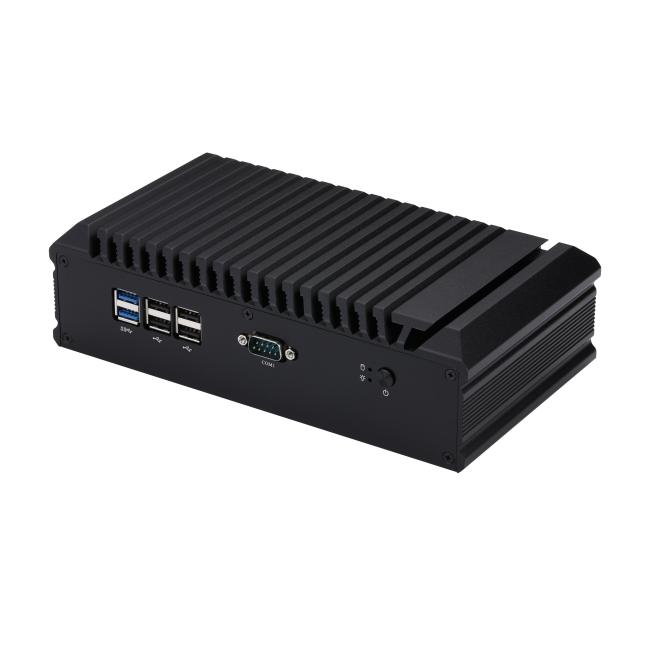

Product Images & Interface
Available CPU Options
3855U: Intel Celeron 3855U, Skylake, 2 Cores, 2 Threads, 1.6GHz, 2M Cache, Intel HD Graphics 510.
6200U: Intel Core i5-6200U, Skylake, 2 Cores, 4 Threads, 2.3GHz (Turbo up to 2.8GHz), 3M Cache, Intel HD Graphics 520.
7100U: Intel Core i3-7100U, Kaby Lake, 2 Cores, 4 Threads, 2.4GHz, 3M Cache, Intel HD Graphics 620.
7200U: Intel Core i5-7200U, Kaby Lake, 2 Cores, 4 Threads, 2.5GHz (Turbo up to 3.1GHz), 3M Cache, Intel HD Graphics 620.
7500U: Intel Core i7-7500U, Kaby Lake, 2 Cores, 4 Threads, 2.7GHz (Turbo up to 3.5GHz), 4M Cache, Intel HD Graphics 620.
8130U: Intel Core i3-8130U, Kaby Lake R, 2 Cores, 4 Threads, 2.2GHz (Turbo up to 3.4GHz), 4M Cache, Intel UHD Graphics 620.
Key Advantages
Rich Connectivity & Legacy Support: Equipped with 6x RS-232 serial ports (2x RS-485), 8x USB ports, and dual Gigabit LAN, making it highly compatible with legacy industrial equipment and modern peripherals.
Superior Triple-Display Output: Supports simultaneous display via 2x HDMI and 1x VGA, ideal for multi-screen monitoring and complex control interfaces.
Robust Fanless Design: The compact (221 x 121 x 62mm) fanless chassis ensures silent operation, reduces dust accumulation, and enhances reliability in harsh industrial environments.
Efficient Multitasking: Powered by the Intel Core i5-6200U with support for up to 32GB DDR4 RAM, providing the perfect balance of energy efficiency and processing power for edge computing.
Application Areas
IoT & Edge Computing: Serves as a reliable gateway for data collection, processing, and transmission in smart city or smart warehouse projects.
Self-Service Terminals: Perfect for powering kiosks, digital signage, vending machines, and ATMs due to its compact size and multiple I/O ports.
Transportation & Logistics: Used in vehicle-mounted systems, toll collection, and automated logistics sorting systems.
- Industrial Automation: Ideal for PLC communication, CNC machine control, and factory production line monitoring.
