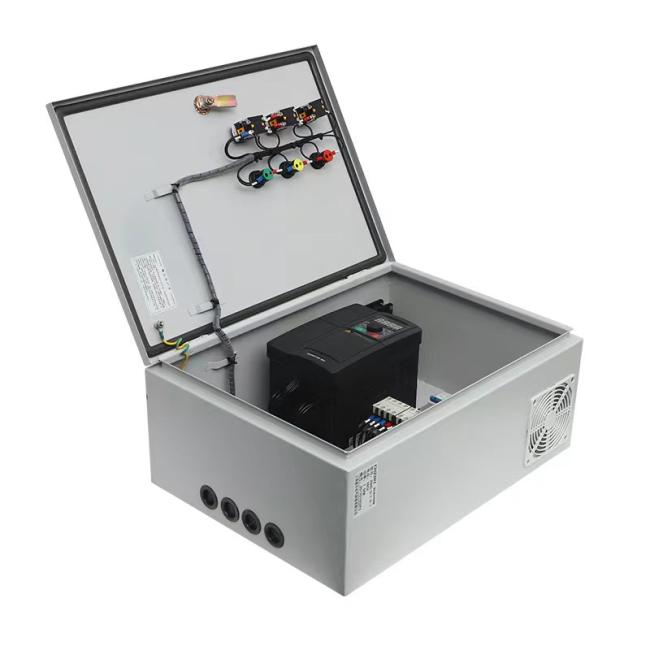

Our Low-Voltage Steel Switch Panel Enclosure is a precision-engineered housing designed for the integration of complex electrical distribution and control systems. Built from high-quality cold-rolled steel, these enclosures provide the "backbone" for motor control centers (MCC), power distribution boards, and automation panels.

As a Manufacturer-Direct solution, we offer full customization of the panel architecture. This includes bespoke internal mounting plates, laser-cut cable entries, and ventilation profiles tailored to your specific switchgear requirements. Whether you are installing high-amperage breakers or sensitive PLC units, our enclosures provide the mechanical strength and environmental protection needed for modern industrial facilities and commercial infrastructure.

• Heavy-Duty Structural Integrity: Fabricated from 1.5mm to 2.0mm high-grade cold-rolled steel. The frame is reinforced with multiple bends to prevent sagging or warping under the heavy load of copper busbars and industrial switchgear.

• Full OEM/ODM Customization: We offer "tailor-made" fabrication. Send us your CAD drawings for custom knockouts, HMI window cutouts, or specific dimensions that fit into restricted electrical room footprints.

• Superior Surface Treatment: Each enclosure undergoes a 7-tank pickling and phosphating process, followed by an electrostatic epoxy powder coating (Standard RAL 7035). This ensures high resistance to scratches, corrosion, and industrial oils.

• Advanced Sealing & Protection: Featuring a CNC-poured polyurethane (PU) gasket system and a concealed hinge design, our cabinets offer reliable protection against dust, moisture, and unauthorized access.

• Earthing & Continuity: Integrated copper grounding studs are pre-welded to the door, body, and mounting plate to ensure total electrical continuity and safety for maintenance staff.

1. Industrial Automation: Housing for PLCs, Variable Frequency Drives (VFDs), and control relays in factory production lines.

2. Power Distribution Centers: Serving as the main or sub-distribution board shell for hotels, office complexes, and hospitals.

3. Infrastructure Projects: Reliable enclosures for traffic control systems, subway power distribution, and wastewater treatment plants.

4. OEM Equipment Building: High-quality base cabinets for manufacturers of pump controllers, generators, and specialized industrial machinery.

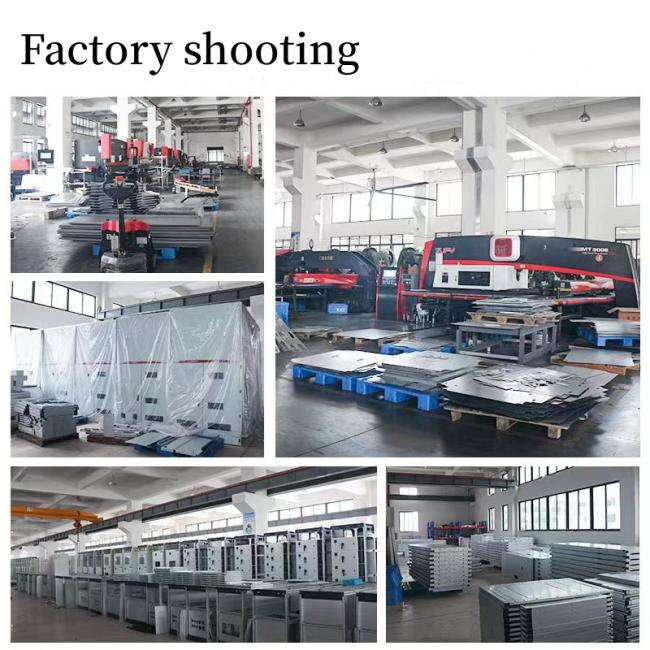

• Millimeter-Perfect Precision: We utilize advanced CNC fiber laser cutting and CNC bending machines to ensure that every cutout and hinge alignment is perfect, reducing your assembly time on-site.

• Flexible Mounting Systems: Every enclosure includes a removable, depth-adjustable galvanized mounting plate and optional DIN-rail brackets for versatile component layout.

• Prototyping to Mass Production: We support small-batch custom prototypes for engineering projects as well as high-volume production runs for wholesalers and contractors.

• Export-Grade Packaging: All panels are shipped in 5-layer reinforced corrugated cartons or sea-worthy wooden crates with protective film to ensure they arrive in "showroom" condition.

Q: Can you provide the enclosure with pre-installed busbars?

A: Yes. While we specialize in the steel enclosures, we also offer semi-populated solutions including T2 copper busbars and insulators based on your specific amperage requirements.

Q: Is it possible to change the color of the powder coating?

A: Absolutely. While RAL 7035 (Light Grey) is our standard, we can provide any RAL or Pantone color to match your company branding or specific site requirements.

Q: What is the typical lead time for a custom-sized control box?

A: Custom fabrication typically takes 7–12 business days depending on the complexity of the cutouts and the quantity of the order.

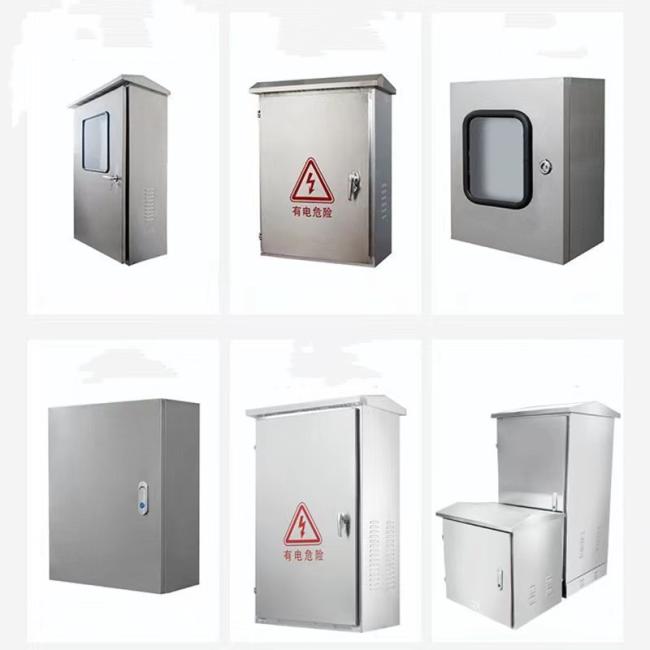

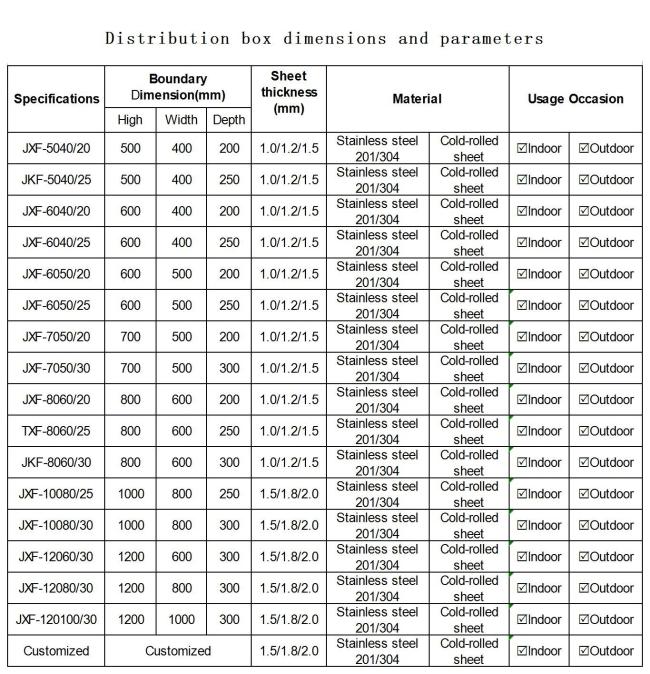

JXF series distribution box is suited for operating in the circuit of AC 50Hz, rated operating voltage 500V and below, in some special cases, the protection grade can reach up to IP55, the top and bottom of the panel will provide knockout holes, if multiple pipes are used for incoming lines, opening plate can be prepared, maxi rated current up to 400A, especially suitable for usage in metering and control box of mining field, hotel, living buildings and etc. Comply with GB7251.12-2013 Low voltage switchgear and
controlgear, IEC60439-2:2011 Low voltage switchgear and controlgear standard.
