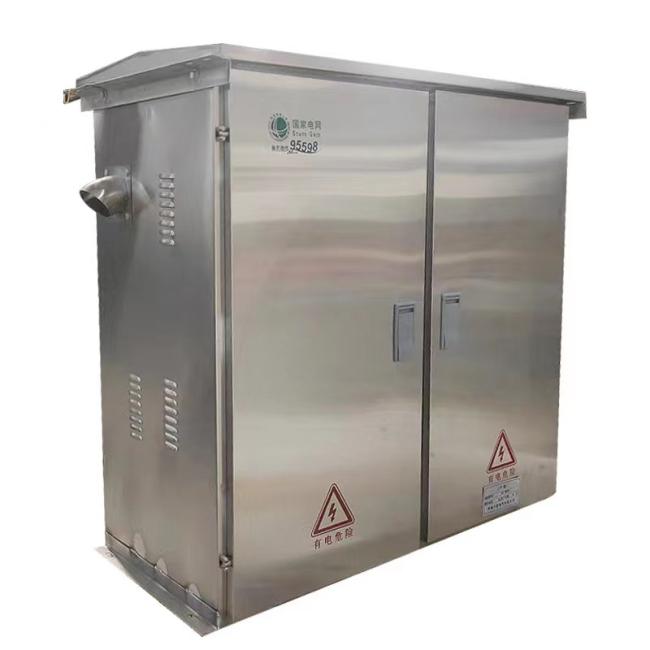

Our Outdoor Stainless Steel Distribution Cabinets provide the ultimate protection for electrical controls, instrumentation, and power distribution systems in exposed environments. Built to withstand driving rain, snow, salt air, and intense UV exposure, these cabinets are the industry standard for outdoor reliability.

The specialized Double-Door Architecture features an internal "dead-front" door to protect operators from live parts while allowing access to switches, and an external heavy-duty door to seal the unit against the elements. Whether for municipal lighting, industrial automation, or telecommunications, this cabinet ensures your critical electronics remain dry and operational 24/7.

• Premium Material Options: Available in 304 or 316 Grade Stainless Steel for maximum corrosion resistance, or high-strength galvanized iron with an outdoor-grade epoxy powder coating.

• IP65 Weatherproof Integrity: Engineered with a seamless robotic foam-in-place gasket system and a sloped rain hood (drip shield) to ensure water, dust, and ice never penetrate the enclosure.

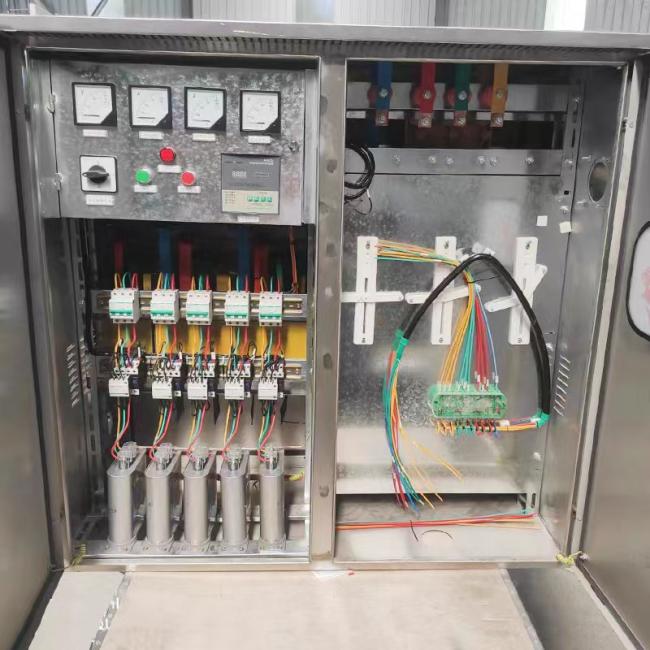

• Dual-Layer Protection (Double Door): The inner door allows for the mounting of meters and switches while shielding the high-voltage busbars behind it. The outer door provides a secondary airtight seal and vandal-resistant locking.

• Vibration & Impact Resistant: The reinforced frame and heavy-duty concealed hinges are designed to resist mechanical impact and the constant vibration found near highways or industrial machinery.

• Optimized Thermal Airflow: Optional integrated ventilation louvers with dust filters allow for heat dissipation while maintaining the cabinet’s ingress protection rating.

1. Municipal Infrastructure: Controlling street lighting, traffic signals, and public CCTV networks.

2. Water Treatment & Irrigation: Housing pump starters and PLC controllers in damp, rural, or coastal locations.

3. Renewable Energy Sites: Serving as an AC/DC combiner box for outdoor solar arrays or wind turbine monitoring.

4. Telecommunications: Protecting sensitive networking equipment and fiber optic terminations in remote areas.

• Anti-Corrosion Guarantee: Our SUS316 stainless steel units are salt-spray tested for 500+ hours, making them ideal for ports, docks, and coastal chemical plants.

• Flexible Interior Layout: The depth-adjustable galvanized mounting plate allows for the installation of various heavy components, from large MCCBs to compact DIN-rail modules.

• Safety First Construction: Every cabinet includes dedicated copper-plated grounding studs on both the body and the doors to ensure total electrical continuity and lightning protection.

• Anti-Vandal Design: Concealed hinges and a flush-mounted locking mechanism prevent unauthorized access and tampering in public spaces.

Q: Can I get this cabinet with pre-cut cable entries?

A: Yes. We offer custom CNC punching for cable glands on the bottom or sides. All entries are supplied with airtight seals to maintain the IP65 rating.

Q: Is the double-door design mandatory for outdoor use?

A: While not mandatory, it is highly recommended for safety. It allows maintenance staff to check readings or flip breakers without exposing themselves—or the internal wiring—to rain or accidental contact.

Q: What is the benefit of Stainless Steel over Iron for outdoor boxes?

A: Stainless steel (especially 304/316) does not require painting and will not rust even if scratched. Iron cabinets are more cost-effective but rely on their powder coating for protection; they are best for non-coastal environments.
