The roller forming section of the 1020 glazed tile roll forming machine acts as the core power and transmission unit of the whole equipment. Driven by a high-power 11Kw servo motor, it delivers stable and reliable power output. The motor's power is efficiently transmitted to each forming roller via a heavy-duty gear drive system, ensuring all rollers rotate synchronously and uniformly. This guarantees smooth, continuous feeding of color steel and galvanized plates, laying a solid foundation for consistent, standardized forming of metal sheets.

In the forming module, 16 rows of high-precision 45Cr quenched and tempered rolls (precision turned and chrome-plated) perform continuous profiling. As flat raw materials pass through the roll sets, precise gaps and pressure shape the metal into the standard glazed tile profile. This meticulous rolling process accurately replicates the classic contour of roof tiles, turning plain sheet metal into high-quality building materials with the required curvature.

The cutting assembly of the 1020 machine is engineered for precision and efficiency. Powered by an 11Kw air-cooled hydraulic pump station and guided by double linear rails, the cutting knife moves up and down rapidly and accurately. Once the formed plate reaches the specified length, the knife cuts cleanly in one smooth motion, ensuring uniform tile length and burr-free edges, with a cutting error controlled within ≤1mm to meet strict quality standards.

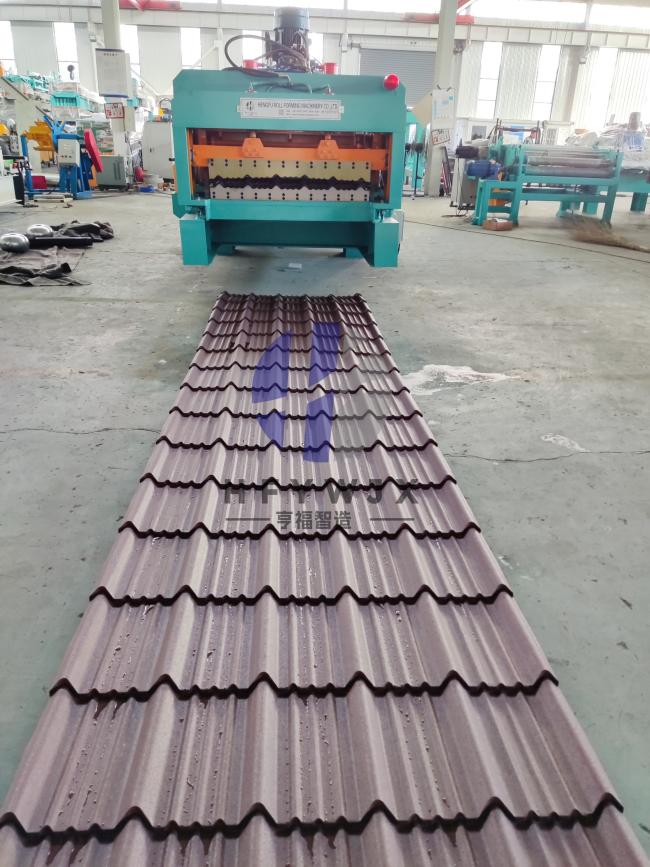

The glazed tiles produced by the 1020 roll forming machine combine excellent aesthetics and durability. With an elegant, standard tile shape and superior weather resistance, they are widely used in residential villas, commercial buildings and industrial factories, delivering long service life and reliable performance for various roofing projects.
