Stable 460 Ridge Cap Machine With PLC Control 14 Rows Forming Stations And Gear Transmission

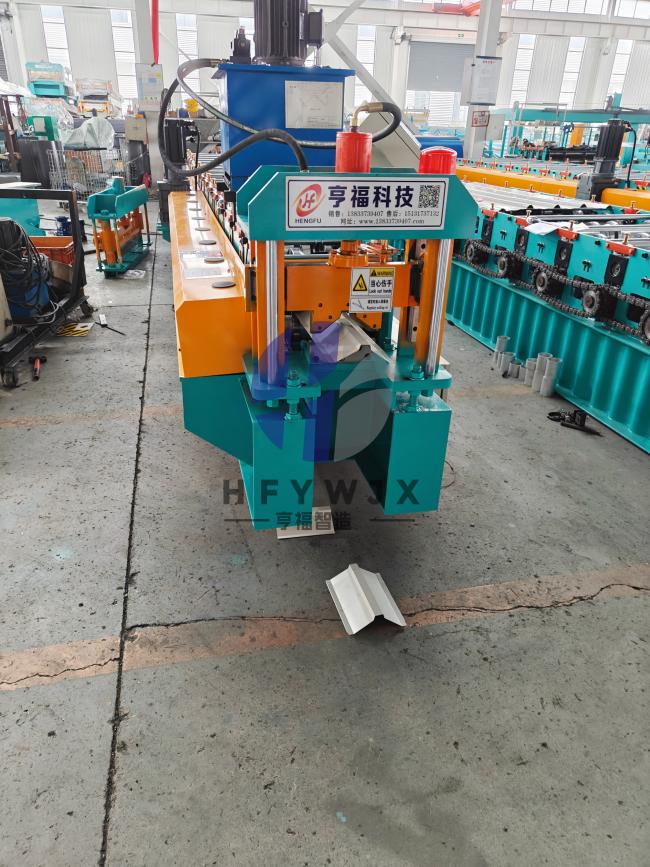

The 460 Ridge Cap Roll Forming Machine offers high-speed, high-precision production for metal roofing ridge tiles. Driven by an advanced servo system, it ensures accurate forming and stable operation throughout the entire production process.
The forming rollers are manufactured from premium materials with precision machining and hard chrome treatment, ensuring excellent wear resistance and long-term performance. Combined with a hydraulic cutting system and intelligent PLC control, the machine guarantees accurate length control and smooth operation, making it ideal for continuous production.
Designed with a strong structure and reliable components, this machine delivers stable performance even in demanding production environments. It is widely used in roofing sheet production lines worldwide, helping manufacturers increase productivity, reduce costs, and maintain consistent product quality.
| Component | Specification |
|---|---|
| Infeed Platform | Hand-cranked Feeding Stand (with Cutting Blade) |
| Frame Structure | Welded 350H Steel; Wall-plate Type Construction |
| Wall Plate Thickness | 14mm Carbon Steel Plate |
| Forming Stations | 14 Rows |
| Main Shaft Diameter | Ø70mm (Solid Shaft) |
| Shaft Material | #45 Steel |
| Roller Material | #45 Steel (Precision-turned, Chrome-plated, and Heat-treated) |
| Length Measurement | Rotary Counter (with Linear Slider Bracket) |
| External Voltage | 3-Phase 380V, 50Hz |
| Low-Voltage Electrical Components | Limit Switches, Contactors, Relays, etc. |
