Fully Automatic High Output 1110 Glazed Roof Tile Roll Former With 11kW Servo Motor
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
45Days
Brand:
HENGFU
Product Description
Fully Automatic High Output 1110 Glazed Tile Production Line
The 1110 glazed tile roll forming machine (Model YX24-222-1110) from Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd. is a high-efficiency equipment for producing glazed tiles. It processes 1250mm width, 0.3-0.5mm thickness Q235 color steel and galvanized steel sheets with stable quality.

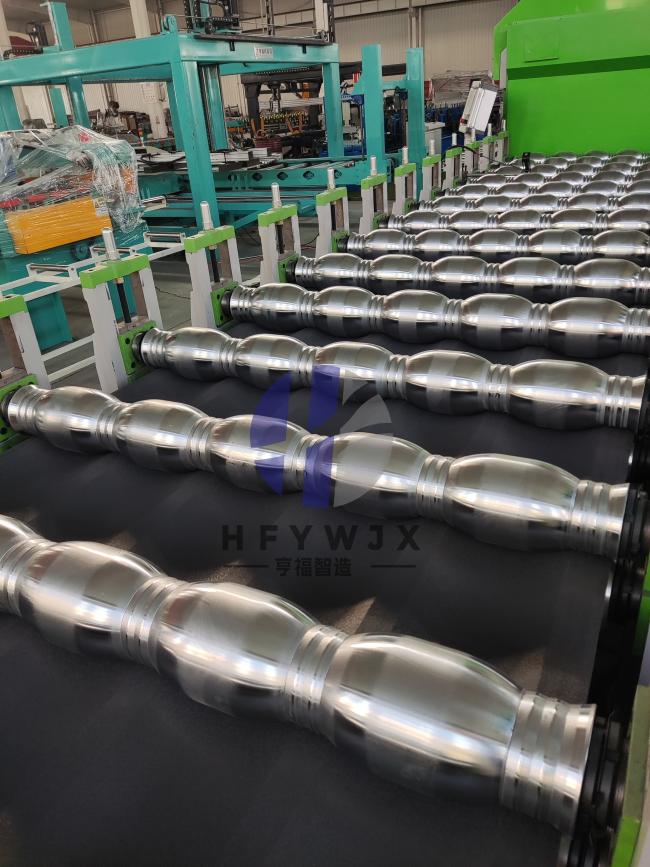

Built with 400H standard steel frame and 16mm thick wall plates, the machine is solid and durable. It has 16-21 rows of 45Cr forming rolls processed by quenching, tempering, fine turning and chrome plating. The 80mm solid main shaft and 11kW servo motor with gear drive ensure reliable running.
This machine uses post-forming double linear guide electric cutting. The Cr12Mov quenched and finely ground mold and cutter ensure burr-free cutting and long service life. The PLC control system with touch screen, remote control and alarm keeps cutting error ≤1mm.
Equipped with double hand-operated feeding frame and manual cutter, the machine is user-friendly. It runs stably at 4-12m/min for continuous production. It is widely used for making glazed tiles in factories, scenic spots, pavilions, hotels and villas.
Technical Specifications
| Model | 1110 |
|---|---|
| Feeding Width | 1250 mm |
| Suitable Material | Color steel sheet, Galvanized steel sheet |
| Material Standard | Q235 |
| Material Thickness | 0.3-0.5 mm |
| Machine Frame | 400H standard steel |
| Wall Plate Thickness | 16 mm |
| Forming Roll Stations | 16-21 rows |
| Roll Material | 45Cr (quenched / tempered / finely turned / chrome plated) |
| Main Shaft | Φ80 mm solid shaft |
| Main Motor | 11 kW servo motor |
| Transmission | Gear box drive |
| Production Speed | 4-12 m/min |
| Cutting Type | Post-forming cutting, double linear guide electric shearing |
Product Gallery
Frequently Asked Questions
Are customers able to visit the factory to test the machine and observe its performance firsthand?
We welcome customers--or a designated third party--to visit our factory to inspect the machine and conduct trial production runs using their own materials.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
