Durable High Precision Corrugated Roof Sheet Forming Machine for Fast Output Metal Plate Cold Roll Former
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
45Days
Brand:
HENGFU
Product Description

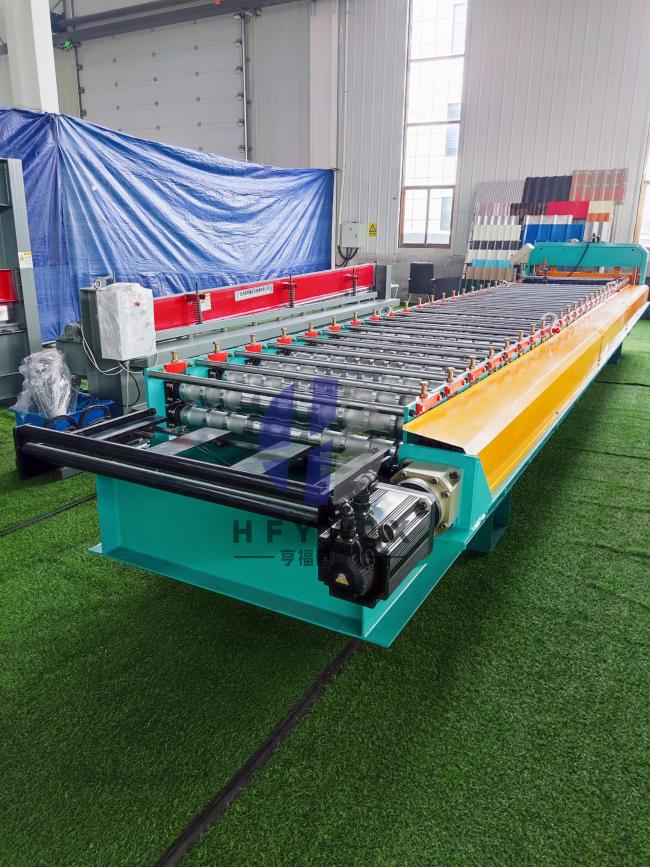

Durable Corrugated Roof Sheet Forming Machine
Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a high-performance economical vertical pressed corrugated tile forming machine, built for stable, efficient, and high-quality metal roof panel production. This professional roll forming equipment combines solid structure, precise forming technology, and intelligent control to provide reliable and consistent output.
Applications & Benefits
This machine is specially designed for processing galvanized steel and color-coated steel coils, which are widely used in industrial plants, warehouses, commercial buildings, and residential roofing projects. It produces vertical pressed corrugated tiles with perfect wave shape, smooth surface, accurate size, and strong structural stability.
- Excellent waterproof performance and wind resistance
- Long service life meeting modern construction demands
- Heavy-duty welded frame with high rigidity and stability
- Smooth, low-vibration operation during continuous production
Quality Construction
The forming rollers are made of high-grade steel with precision machining and hard chrome plating, ensuring wear resistance and scratch-free material processing. The stable transmission system and reliable hydraulic cutting system guarantee high efficiency and low maintenance costs.
Intelligent Control System
Equipped with PLC intelligent control system and touch screen operation, this roof tile machine realizes fully automatic production from feeding, forming to fixed-length cutting. It supports adjustable speed, accurate length setting, and real-time production monitoring.
Technical Specifications
| Raw Material | Galvanized sheet (hardness 80-90) |
| Feeding Width | 1000mm |
| Rolling Thickness | 0.1-0.15mm |
| Production Rate | 40M/min |
| Place of Origin | Cangzhou, Hebei Province |
| Machine Frame | 350H steel frame |
| Dimension (L*W*H) | about 12,000mm x 1,300mm x 1,400mm |
| Cut Off System | Cutting after forming, double linear guide type servo electric shearing, equipped with alarm (No burrs in shearing, extremely low maintenance rate) |
| Usage | Building |
| Electronic Control System | Industrial computer PLC frequency conversion control, cutting length error ≤1mm |
| Roll Material | No. 45 steel rough turning, fine turning, cylindrical grinding and electroplating treatment |
| Spindle Diameter | Φ 70mm (solid shaft) |
| Warranty | 1 year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Key Selling Points | Easy to operate |
Frequently Asked Questions
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
