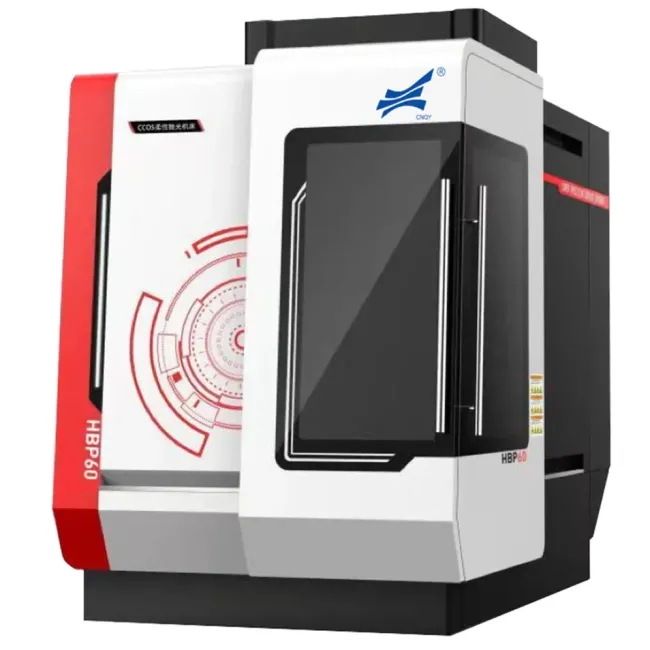

Cost-Effective QHBP60B Six-Axis Flexible Airbag Polishing Machine for Optical Components and Ultra-Precision Surface Finishing

QHBP60B Six-Axis Flexible Airbag Polishing Machine is a high-performance precision machining equipment and a pro-vider of comprehensive precision machining solutions. It features multiple core advantages: in terms of efficiency, it e-nables high-efficiency conformal polishing to meet fast material removal needs; in terms of precision, it can rapidly con-verge to high surface accuracy, and its unique precessional polishing technology not only enhances surface quality but also effectively controls edge effects; in terms of flexibility, its six-axis linkage design and a wide range of polishing too-ls allow it to handle tasks from high-efficiency material removal to ultra-precision polishing; it also has strong expand-ability, with a proprietary CNC system and CAM software that support customizable function development according to customer needs, and excellent cost-effectiveness, as it has low daily operation and maintenance costs beyond the one-time equipment purchase cost. In terms of processing characteristics, it is equipped with a unique non-orthogonal ro-tary swing arm with precessional motion—this design prevents the polishing speed at the contact zone center from dro-pping to zero , generates random surface textures for better surface quality, and supports a quasi-Gaussian removal fu-nction to facilitate surface figure convergence. It also has adjustable-pressure series airbag polishing heads that ensure good conformity with the workpiece surface, and when combined with advanced CAM algorithms, further improve poli-shing efficiency and workpiece surface quality. The machine is supported by an open-architecture CNC system and pr-ofessional optical polishing CAM software . It also offers versatile polishing tools, including various airbag tools for diff-erent processing needs and compatibility with other types of polishing tools to enhance flexibility. Its proven machining cases cover optical componentsand optical moulds , and a rapid polishing test on aspherical monocrystalline silicon s-howed that deep grinding marks were significantly reduced after 10 hours of polishing and completely removed after 32 hours.

• Six-axis flexible airbag polishing machine for optical components and optical molds
• High-efficiency conformal polishing for fast material removal and surface finishing
• Rapid convergence to high surface accuracy for precision optical processing
• Unique precessional polishing technology improves surface quality and controls edge effects

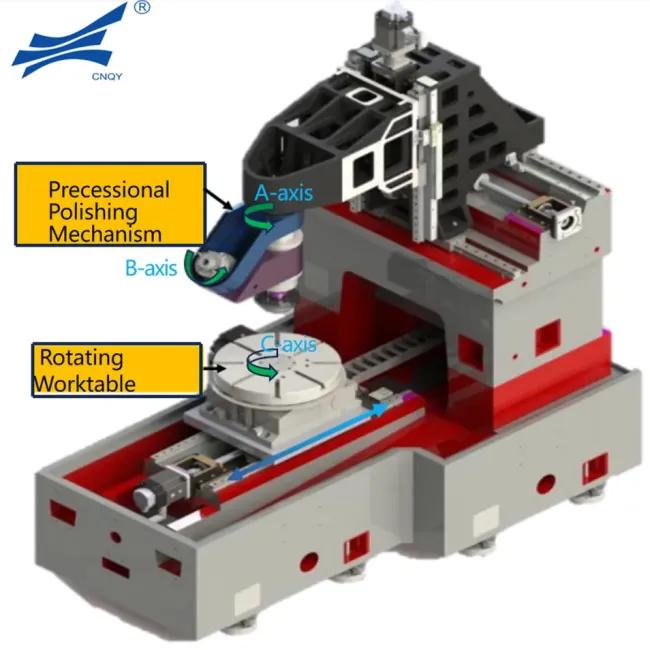

• Non-orthogonal rotary swing arm prevents polishing speed at the contact center from dropping to zero
• Generates random surface textures for better polishing uniformity and surface quality
• Supports quasi-Gaussian removal function for faster surface figure convergence
• Adjustable-pressure airbag polishing heads provide excellent surface conformity

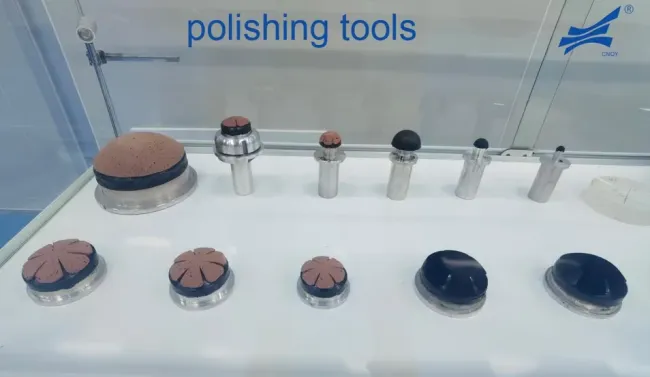

• Compatible with various airbag polishing tools and other polishing tool types
• Six-axis linkage design supports complex polishing paths and flexible processing
• Proprietary CNC system and professional optical polishing CAM software
• Open-architecture system supports customized function development
• Low daily operation and maintenance costs for better long-term cost performance
• Proven performance on optical components, optical molds, and aspherical monocrystalline silicon parts

The QHBP60B is mainly used for high-efficiency polishing, surface figure correction, and ultra-precision finishing of optical components, optical molds, aspherical surfaces, monocrystalline silicon parts, and other high-accuracy workpieces.

Flexible airbag polishing provides good conformity with the workpiece surface, making it suitable for curved surfaces and complex optical parts. It helps improve polishing uniformity, reduce surface defects, and achieve high-quality surface finishing.

Precessional polishing helps prevent the polishing speed at the contact center from becoming zero. It improves surface texture randomness, reduces center polishing defects, controls edge effects, and supports better surface quality during optical polishing.

This machine is suitable for optical components, optical molds, aspherical parts, monocrystalline silicon, precision glass components, and other workpieces requiring high surface accuracy. The exact process depends on material properties, surface shape, polishing tools, and accuracy requirements.

Please provide your workpiece material, surface type, size, current surface condition, target accuracy, and polishing efficiency requirements. You can also send drawings or product pictures, and our team will recommend a suitable polishing process and machine configuration.

Yes. We support customization of polishing tools, airbag polishing heads, CNC functions, CAM software modules, polishing process parameters, fixture systems, and other machine configurations according to customer production needs.
