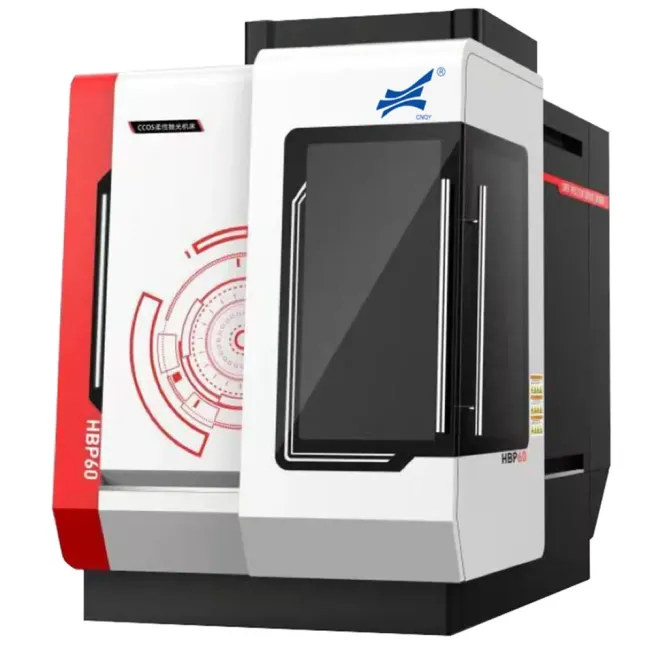

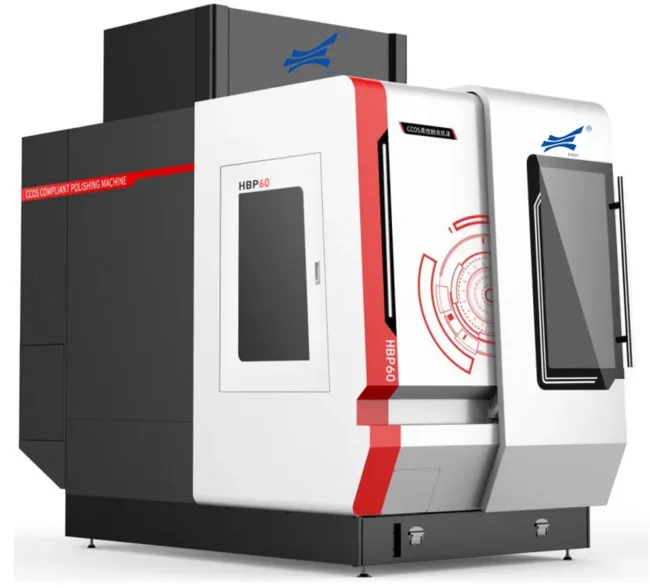

Precision QHBP60B Six-Axis CNC Flexible Airbag Polishing Machine for Optical Components and Ultra-Precision Surface Finishing

QHBP60B Six-Axis Flexible Airbag Polishing Machine is a high-performance precision machining equipment and a pro-vider of comprehensive precision machining solutions. It features multiple core advantages: in terms of efficiency, it e-nables high-efficiency conformal polishing to meet fast material removal needs; in terms of precision, it can rapidly con-verge to high surface accuracy, and its unique precessional polishing technology not only enhances surface quality but also effectively controls edge effects; in terms of flexibility, its six-axis linkage design and a wide range of polishing too-ls allow it to handle tasks from high-efficiency material removal to ultra-precision polishing; it also has strong expand-ability, with a proprietary CNC system and CAM software that support customizable function development according to customer needs, and excellent cost-effectiveness, as it has low daily operation and maintenance costs beyond the one-time equipment purchase cost. In terms of processing characteristics, it is equipped with a unique non-orthogonal ro-tary swing arm with precessional motion—this design prevents the polishing speed at the contact zone center from dro-pping to zero , generates random surface textures for better surface quality, and supports a quasi-Gaussian removal fu-nction to facilitate surface figure convergence. It also has adjustable-pressure series airbag polishing heads that ensure good conformity with the workpiece surface, and when combined with advanced CAM algorithms, further improve poli-shing efficiency and workpiece surface quality. The machine is supported by an open-architecture CNC system and pr-ofessional optical polishing CAM software . It also offers versatile polishing tools, including various airbag tools for diff-erent processing needs and compatibility with other types of polishing tools to enhance flexibility. Its proven machining cases cover optical componentsand optical moulds , and a rapid polishing test on aspherical monocrystalline silicon s-howed that deep grinding marks were significantly reduced after 10 hours of polishing and completely removed after 32 hours.

• Precision six-axis CNC flexible airbag polishing machine for optical surface finishing
• Suitable for optical components, optical molds, aspherical surfaces, and freeform surfaces
• Flexible airbag polishing head provides excellent surface conformity
• Six-axis linkage supports complex surface polishing from multiple angles
• High-efficiency conformal polishing for fast grinding mark removal
• Supports rough polishing, fine polishing, surface figure correction, and ultra-precision finishing
• Unique precessional polishing technology improves surface quality and controls edge effects

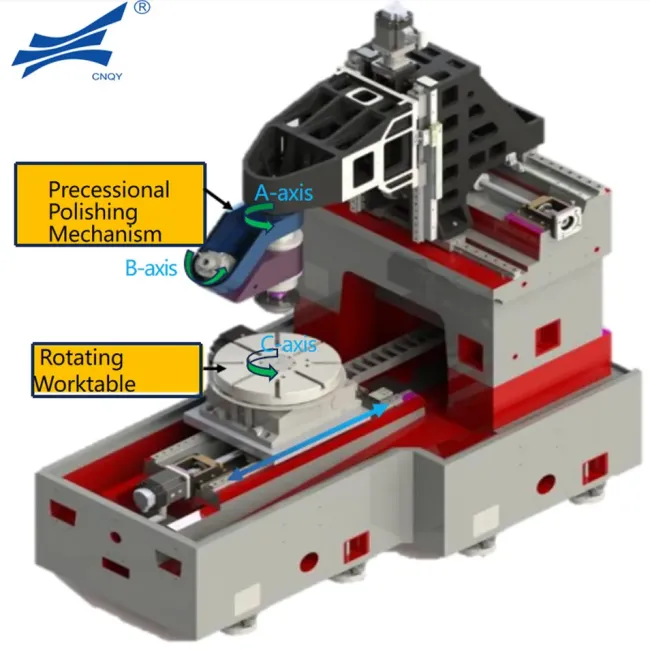

• Non-orthogonal rotary swing arm prevents polishing speed at the contact center from becoming zero
• Quasi-Gaussian removal function helps accelerate surface figure convergence
• Adjustable-pressure airbag polishing heads improve polishing stability
• Advanced CAM algorithms support accurate polishing path planning
• Open-architecture CNC system supports customized function development

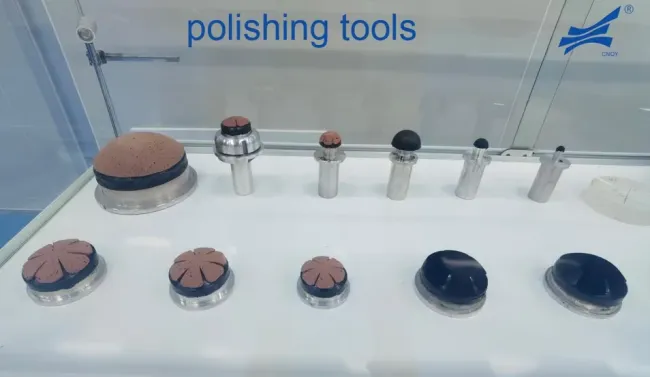

• Compatible with various airbag polishing tools and other polishing tools
• Low daily operation and maintenance costs for better long-term cost performance

The QHBP60B is mainly used for precision polishing, surface figure correction, grinding mark removal, and ultra-precision finishing of optical components, optical molds, aspherical surfaces, freeform surfaces, monocrystalline silicon parts, and precision glass workpieces.

The QHBP60B combines six-axis CNC linkage, flexible airbag polishing, precessional polishing technology, adjustable polishing pressure, and advanced CAM algorithms. These features help improve polishing accuracy, surface uniformity, and final optical surface quality.

Flexible airbag polishing allows the polishing head to conform closely to the workpiece surface. It is especially suitable for curved and complex optical surfaces, helping reduce surface defects and improve polishing consistency.

Precessional polishing helps prevent the polishing speed at the contact center from dropping to zero. It reduces center defects, improves removal uniformity, creates better surface texture, and helps control edge effects.

This machine is suitable for optical components, optical molds, aspherical parts, freeform surfaces, monocrystalline silicon, precision glass components, and other high-accuracy workpieces. The actual polishing process depends on material properties, surface shape, polishing tools, and accuracy requirements.

Please provide your workpiece material, surface type, size, current surface condition, target accuracy, and polishing efficiency requirements. You can also send drawings or product pictures, and our team will recommend a suitable polishing process and machine configuration.

Yes. We support customization of polishing tools, airbag polishing heads, CNC functions, CAM software modules, polishing process parameters, fixture systems, control system configuration, and other machine specifications according to customer production needs.
