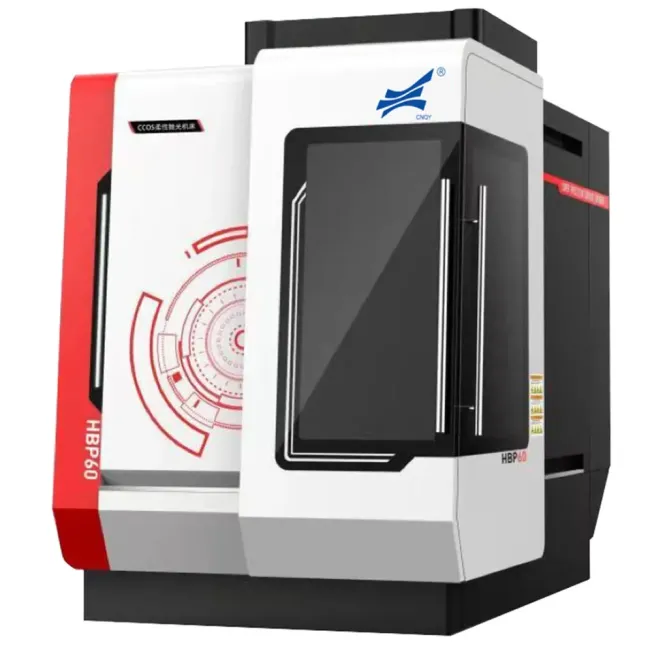

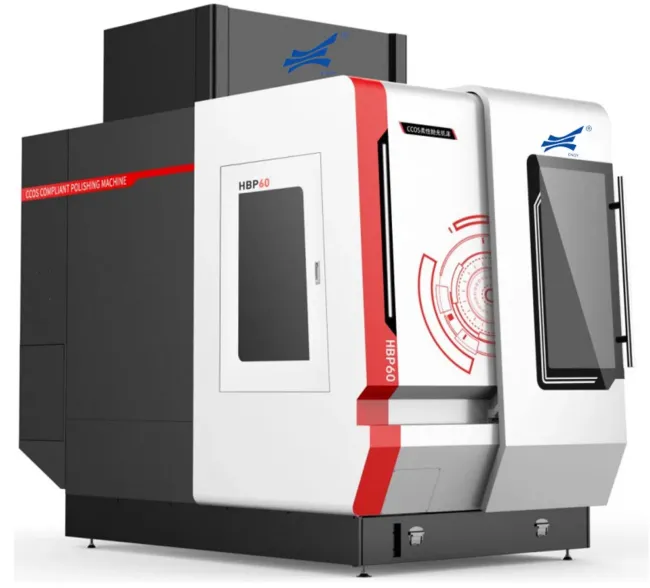

QHBP60B Six-Axis CNC Flexible Airbag Polishing Machine for Optical Molds and Precision Surface Finishing

QHBP60B Six-Axis Flexible Airbag Polishing Machine is a high-performance precision machining equipment and a pro-vider of comprehensive precision machining solutions. It features multiple core advantages: in terms of efficiency, it e-nables high-efficiency conformal polishing to meet fast material removal needs; in terms of precision, it can rapidly con-verge to high surface accuracy, and its unique precessional polishing technology not only enhances surface quality but also effectively controls edge effects; in terms of flexibility, its six-axis linkage design and a wide range of polishing too-ls allow it to handle tasks from high-efficiency material removal to ultra-precision polishing; it also has strong expand-ability, with a proprietary CNC system and CAM software that support customizable function development according to customer needs, and excellent cost-effectiveness, as it has low daily operation and maintenance costs beyond the one-time equipment purchase cost. In terms of processing characteristics, it is equipped with a unique non-orthogonal ro-tary swing arm with precessional motion—this design prevents the polishing speed at the contact zone center from dro-pping to zero , generates random surface textures for better surface quality, and supports a quasi-Gaussian removal fu-nction to facilitate surface figure convergence. It also has adjustable-pressure series airbag polishing heads that ensure good conformity with the workpiece surface, and when combined with advanced CAM algorithms, further improve poli-shing efficiency and workpiece surface quality. The machine is supported by an open-architecture CNC system and pr-ofessional optical polishing CAM software . It also offers versatile polishing tools, including various airbag tools for diff-erent processing needs and compatibility with other types of polishing tools to enhance flexibility. Its proven machining cases cover optical componentsand optical moulds , and a rapid polishing test on aspherical monocrystalline silicon s-howed that deep grinding marks were significantly reduced after 10 hours of polishing and completely removed after 32 hours.

• Six-axis CNC flexible airbag polishing machine for optical molds
• Suitable for aspherical molds, freeform molds, optical components, and precision glass parts
• Flexible airbag polishing head provides excellent surface conformity
• Six-axis linkage supports complex mold surface polishing from multiple angles
• Supports rough polishing, fine polishing, surface correction, and ultra-precision finishing
• Unique precessional polishing technology improves surface quality and controls edge effects

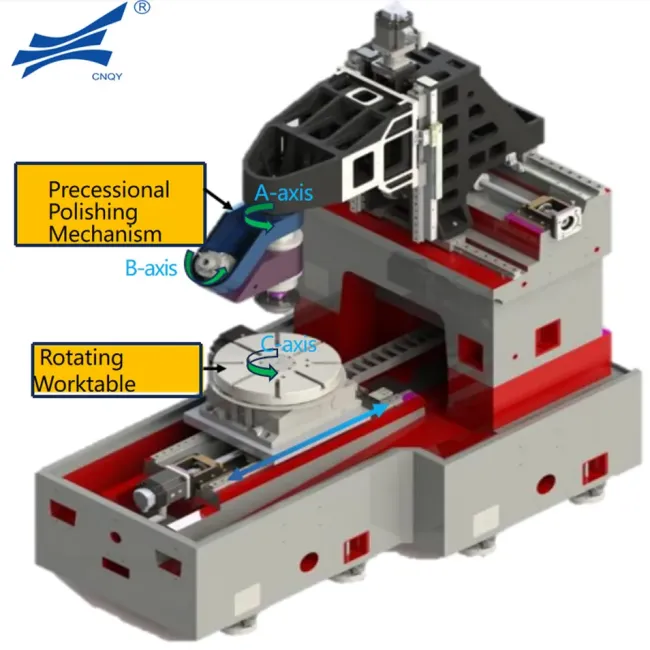

• Non-orthogonal rotary swing arm prevents polishing speed at the contact center from becoming zero
• Quasi-Gaussian removal function helps accelerate surface figure convergence
• Adjustable-pressure airbag polishing heads improve polishing stability
• Advanced CAM algorithms support accurate polishing path planning
• Open-architecture CNC system supports customized function development

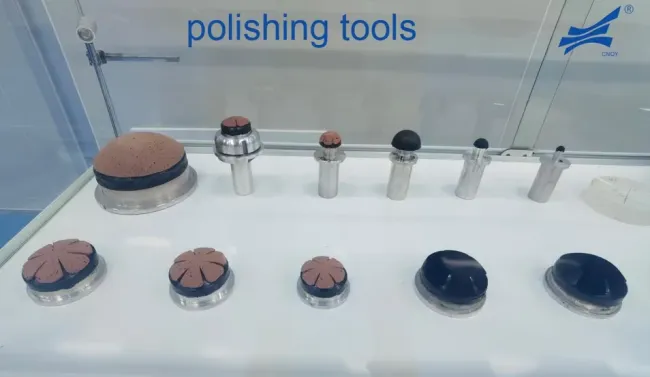

• Compatible with various airbag polishing tools and other polishing tools
• Suitable for optical mold manufacturing and high-accuracy surface finishing

The QHBP60B is mainly used for optical mold polishing, aspherical surface correction, freeform surface finishing, grinding mark removal, and ultra-precision polishing of optical components, molds, monocrystalline silicon parts, and precision glass workpieces.

Optical molds usually have complex curved surfaces and strict surface accuracy requirements. The QHBP60B uses six-axis CNC linkage and flexible airbag polishing technology, allowing the polishing head to fit the mold surface closely and achieve stable polishing results.

Flexible airbag polishing provides excellent surface conformity. It is suitable for curved surfaces, aspherical molds, freeform molds, and complex optical parts, helping improve polishing uniformity, reduce defects, and achieve better surface quality.

Precessional polishing helps prevent the polishing speed at the contact center from dropping to zero. It reduces center defects, improves polishing uniformity, creates better surface texture, and helps control edge effects during optical polishing.

This machine is suitable for optical molds, aspherical molds, freeform molds, optical components, monocrystalline silicon, precision glass components, and other high-accuracy workpieces. The actual polishing process depends on material properties, surface shape, polishing tools, and accuracy requirements.

Please provide your workpiece material, surface type, size, current surface condition, target accuracy, and polishing efficiency requirements. You can also send drawings or product pictures, and our team will recommend a suitable polishing process and machine configuration.

Yes. We support customization of polishing tools, airbag polishing heads, CNC functions, CAM software modules, polishing process parameters, fixture systems, control system configuration, and other machine specifications according to customer production needs.
