Armoured Round Drilling Hose Pipe Anti Kink For Oilfield Drilling Rig
Price:
$18-$130
MOQ:
1
Delivery Time:
5-7 Work Days
Brand:
Hongruntong Marine
Product Description

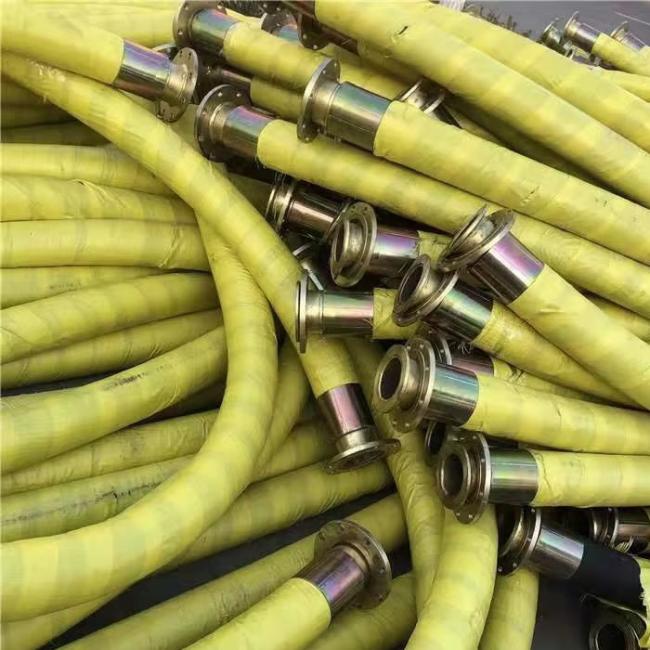

Armoured Round Rotary Drilling Hose Pipe For Drilling Rig
Rotary Drilling Hose
A Rotary Drilling Hose is an essential component in oilfield drilling operations, primarily used to transfer drilling mud at high pressure. Constructed with premium synthetic rubber and reinforced with multiple steel wire layers, it withstands extreme pressures and challenging environments.
This hose is resistant to oil, heat, and abrasion, ensuring durability and long-term performance. It meets API 7K requirements, guaranteeing safety and reliability for both land and offshore drilling rigs. The Rotary Drilling Hose is available in various pressure ratings and sizes to suit different operational needs, providing a stable and efficient solution for drilling fluid transportation.
Technical Specifications
| Tube | Modified nitrile, black, specifically engineered for the effective handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric and steel cable, with a layer of rubber positioned between the cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion cover, designed to provide exceptional resistance to abrasion, corrosion, cutting, gouging, oil, and weather conditions. |
| Coupling | Swaged couplings, full range of couplings are available, such as hammer union, flanges, hubs, male thread etc. |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C (-104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes are available upon request |
| Test | Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose. |
Key Features
- Anti Kink Technology: Built with structural integrity to prevent kinking under high-pressure conditions.
- High Burst Pressure: Offers a significantly high burst pressure rating for added safety and reliability.
- Low Pressure Loss: Optimized internal structure ensures smooth fluid flow with minimal resistance.
- Corrosion Resistance: Protective layers safeguard against corrosion caused by harsh drilling environments.
Engineered for the Toughest Applications
- Geothermal Drilling: Used in geothermal energy projects to circulate high-temperature drilling fluids in extreme heat conditions.
- Directional Drilling: Provides flexibility and durability for horizontal and directional drilling in complex well formations.
- Ultra Deep Well Drilling: High pressure-resistant hoses facilitate drilling in ultra-deep wells where extreme conditions demand superior performance.
- High Temperature Drilling Environments: Engineered to withstand extreme heat in volcanic or high-temperature drilling sites.
What Sets Us Apart
- API 7K Certification Compliance: Our hoses meet or exceed API 7K standards for safety and performance in oil and gas applications.
- Customizable Specifications: Tailored solutions in size, pressure rating, and end fittings to meet diverse client needs.
- High-Pressure Abrasion Resistance: Engineered for extreme conditions with multiple layers of high-tensile steel wire reinforcement.
- Oil Chemical Weather Resistance: Our hoses perform reliably in harsh environments, including offshore and desert conditions.
Product Specifications Table
| Model | I.D. (inch/mm) | O.D. (mm) | W.P. (mpa/psi) | T.P. (mpa/psi) | Weight (kg/m) | B.R. (mm) |
|---|---|---|---|---|---|---|
| HMRDH-Grade A | 1 1/2 / 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| HMRDH-Grade A | 2 / 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| HMRDH-Grade A | 2 1/2 / 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 / 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| HMRDH-Grade B | 2 / 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| HMRDH-Grade B | 2 1/2 / 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| HMRDH-Grade B | 3 / 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| HMRDH-Grade B | 3 1/2 / 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| HMRDH-Grade B | 4 / 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| HMRDH-Grade B | 5 / 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| HMRDH-Grade B | 6 / 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 / 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| HMRDH-Grade C | 2 / 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| HMRDH-Grade C | 2 1/2 / 64 | 88 | 28(4000) | 56(8000) | 7.86 | 1200 |
| HMRDH-Grade C | 3 / 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| HMRDH-Grade C | 3 1/2 / 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| HMRDH-Grade C | 4 / 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| HMRDH-Grade C | 5 / 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| HMRDH-Grade C | 6 / 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 / 51 | 73 | 25(5000) | 70(10000) | 6.46 | 900 |
| HMRDH-Grade D | 2 1/2 / 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| HMRDH-Grade D | 3 / 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| HMRDH-Grade D | 3 1/2 / 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| HMRDH-Grade D | 4 / 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| HMRDH-Grade D | 5 / 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| HMRDH-Grade D | 6 / 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 / 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| HMRDH-Grade E | 2 1/2 / 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| HMRDH-Grade E | 3 / 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| HMRDH-Grade E | 3 1/2 / 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| HMRDH-Grade E | 4 / 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| HMRDH-Grade E | 5 / 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 / 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1000 |
| HMRDH-Grade F | 2 1/2 / 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| HMRDH-Grade F | 3 / 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| HMRDH-Grade F | 3 1/2 / 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| HMRDH-Grade F | 4 / 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 / 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
Frequently Asked Questions
What materials are used in the inner tube of a Rotary Drilling Hose?
High grade synthetic rubber, resistant to oil, heat, and abrasion.
What kind of reinforcement is used in Rotary Drilling Hoses?
Multiple layers of high-tensile steel wire for strength and pressure resistance.
What sizes are available for Rotary Drilling Hoses?
Common sizes range from 2 inches to 6 inches in diameter, with various lengths available.
What is the burst pressure of a Rotary Drilling Hose?
Typically 2.5 to 4 times the working pressure for safety reasons.
