High Pressure Oil Resistant Rotary Drill Hose 3 Inch for Petroleum Hydraulic Fluids
3 Inch Rotary Drilling Hose - Oil Resistant, Anti-Kink, Extended Service Life, Durable Construction
Rotary drilling hose is a high-pressure flexible hose designed to deliver drilling fluid (mud) between the mud pump and the top drive or rotary swivel in oil and gas drilling operations. Built with multiple steel wire layers and a synthetic rubber cover, it resists abrasion, vibration, and high pressure.
It operates reliably in harsh environments with temperature ranges from -40°C to +120°C and pressure ratings up to 7,500 psi. Anti-kinking structure and flame-retardant cover ensure both durability and operational safety.
| Component | Specification |
|---|---|
| Tube | Modified nitrile, black, specifically engineered for the effective handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric and steel cable, with a layer of rubber positioned between the cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion cover, designed to provide exceptional resistance to abrasion, corrosion, cutting, gouging, oil, and weather conditions. |

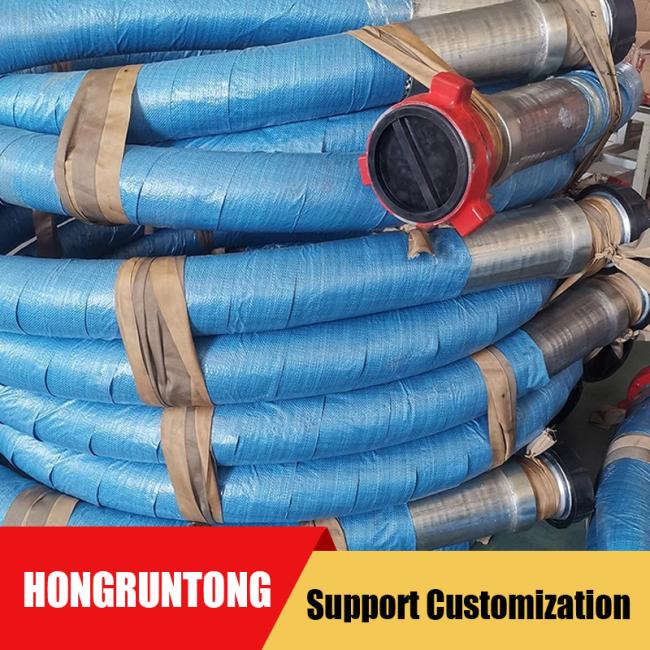

| Coupling | Swaged couplings, full range of couplings available including hammer union, flanges, hubs, male thread etc. |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C (-104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes available upon request |
| Test | Each hose tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance issued for each hose. |
| Model | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. mpa(psi) | T.P. mpa(psi) | Weight (kg/m) | B.R. (mm) |
|---|---|---|---|---|---|---|---|
| HMRDH-Grade A | 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| HMRDH-Grade A | 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| HMRDH-Grade A | 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| HMRDH-Grade B | 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| HMRDH-Grade B | 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| HMRDH-Grade B | 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| HMRDH-Grade B | 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| HMRDH-Grade B | 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| HMRDH-Grade B | 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| HMRDH-Grade B | 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| HMRDH-Grade C | 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| HMRDH-Grade C | 2 1/2 | 64 | 88 | 28(4000) | 56(8000) | 7.86 | 1200 |
| HMRDH-Grade C | 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| HMRDH-Grade C | 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| HMRDH-Grade C | 4 | 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| HMRDH-Grade C | 5 | 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| HMRDH-Grade C | 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 | 51 | 73 | 35(5000) | 70(10000) | 6.46 | 900 |
| HMRDH-Grade D | 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| HMRDH-Grade D | 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| HMRDH-Grade D | 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| HMRDH-Grade D | 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| HMRDH-Grade D | 5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| HMRDH-Grade D | 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| HMRDH-Grade E | 2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| HMRDH-Grade E | 3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| HMRDH-Grade E | 3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| HMRDH-Grade E | 4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| HMRDH-Grade E | 5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 | 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1000 |
| HMRDH-Grade F | 2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| HMRDH-Grade F | 3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| HMRDH-Grade F | 3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| HMRDH-Grade F | 4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
Durable construction reduces the need for frequent inspections, lowering operational costs.
Lightweight yet tough design simplifies hose handling, rig-up, and rig-down processes.

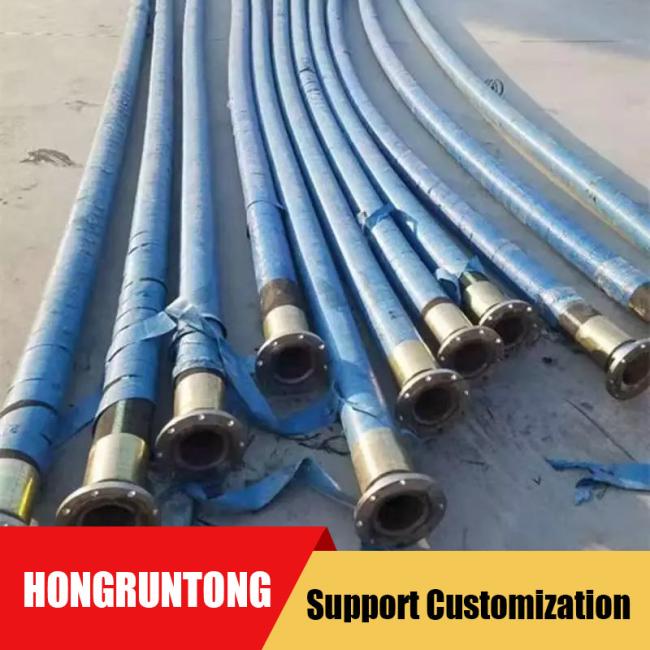

Hose ends can be customized with integral fittings, flanges, or couplings based on site needs.
Successfully used in both offshore and onshore drilling projects worldwide, demonstrating dependable performance in harsh conditions.
- Onshore Oil Gas Drilling Rigs: Used to transport high-pressure drilling mud from mud pumps to the kelly or top drive. Handles abrasive fluids in conventional and directional drilling.
- Offshore Drilling Platforms: Marine-grade hoses resist saltwater corrosion and harsh weather. Critical for deepwater drilling where high burst pressure is required.
- Geothermal Well Drilling: Withstands high-temperature fluids (up to 150°C/302°F) in geothermal energy extraction.
- Flexible Production for Small or Large Orders: Whether you need 10 hoses or 10,000, we scale production accordingly without compromising quality.
- Environmental and Safety Compliance: Our plant meets international safety and environmental standards including ISO and CE certifications.
- Continuous Innovation: We invest in R&D to develop lighter, stronger, and more resistant hose structures for evolving industry needs.
- Strong Industry Reputation: Trusted by major oil & gas companies and drilling contractors globally for consistent product reliability and service.
A: It is used to convey drilling fluid (mud) between the mud pump and the top drive or swivel during oil and gas drilling operations.
A: Our hoses comply with API 7K standards and are tested for pressure, safety, and performance.
A: We offer hoses rated from 3,000 psi to 7,500 psi, depending on application requirements.
A: Common inner diameters range from 2 inches to 6 inches, with customized lengths available.
