Steel Wire Reinforced Rotary Drilling Hose Mud Hose With Anti Abrasion Cover
Price:
$18-$130
MOQ:
1
Delivery Time:
5-7 Work Days
Brand:
Hongruntong Marine
Product Description
Rotary Drilling Hose Steel Wire Reinforced 35-75 Mpa
Product Overview
Mud Hose UV Resistant Pressure Rated Steel Wire Reinforced Core
Abrasion Resistant Outer Cover
Engineered for mobility and quick deployment, this ultra-flexible rotary drilling hose combines reduced bending radius with high-pressure endurance. It allows easy rig-up and rig-down on mobile drilling units and directional drilling setups, improving handling in compact workspaces.
The anti-abrasion cover and strong tensile layers allow frequent repositioning without degradation.
Case Study: A portable rig in Canada working across frozen terrain faced delays due to rigid hoses cracking during cold repositioning. Switching to low-temperature rotary hoses with improved bend radius eliminated breakages. Downtime dropped by 30%, and daily repositioning was completed 45 minutes faster on average.
Technical Specifications
| Tube | Modified nitrile, black, specifically engineered for the effective handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric and steel cable, with a layer of rubber positioned between the cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion cover, designed to provide exceptional resistance to abrasion, corrosion, cutting, gouging, oil, and weather conditions. |
| Coupling | Swaged couplings, full range of couplings are available, such as hammer union, flanges, hubs, male thread etc. |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C (-104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes are available upon request |
| Test | Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose. |
Product Models & Dimensions
| Model | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. mpa(psi) | T.P. mpa(psi) | Weight (kg/m) | B.R. (mm) |
|---|---|---|---|---|---|---|---|
| HMRDH-Grade A | 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| HMRDH-Grade A | 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| HMRDH-Grade A | 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| HMRDH-Grade B | 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| HMRDH-Grade B | 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| HMRDH-Grade B | 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| HMRDH-Grade B | 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| HMRDH-Grade B | 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| HMRDH-Grade B | 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| HMRDH-Grade B | 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| HMRDH-Grade C | 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| HMRDH-Grade C | 2 1/2 | 64 | 88 | 28(4000) | 56(8000) | 7.86 | 1200 |
| HMRDH-Grade C | 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| HMRDH-Grade C | 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| HMRDH-Grade C | 4 | 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| HMRDH-Grade C | 5 | 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| HMRDH-Grade C | 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 | 51 | 73 | 35(5000) | 70(10000) | 6.46 | 900 |
| HMRDH-Grade D | 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| HMRDH-Grade D | 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| HMRDH-Grade D | 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| HMRDH-Grade D | 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| HMRDH-Grade D | 5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| HMRDH-Grade D | 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| HMRDH-Grade E | 2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| HMRDH-Grade E | 3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| HMRDH-Grade E | 3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| HMRDH-Grade E | 4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| HMRDH-Grade E | 5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 | 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1000 |
| HMRDH-Grade F | 2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| HMRDH-Grade F | 3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| HMRDH-Grade F | 3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| HMRDH-Grade F | 4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
Key Features
- Excellent Flexibility: Engineered to maintain flexibility even under high pressure, allowing easy rig movement and repositioning.
- Oil Resistant Inner Tube: Lined with nitrile or synthetic rubber that resists degradation from oil-based drilling fluids.
- Wide Temperature Range: Operates efficiently from -40°C to +120°C, with optional high-temperature models rated up to +150°C.
- Flame Retardant Outer Layer: Optional flame-resistant rubber covers are available to meet fire safety standards in high-risk environments.
Engineered for the Toughest Applications
- Arctic Cold Climate Drilling: Low-temperature flexible hoses (-40°C/-40°F) for Arctic operations.
- Sour Gas Wells (H₂S Environments): H₂S-resistant materials prevent degradation in acidic conditions.
- Fracking (Hydraulic Fracturing): High-pressure mud delivery for fracturing pumps (short-term peak pressure tolerance).
What Sets Us Apart
- Strict Quality Control System: Every hose undergoes hydrostatic testing, dimensional inspection, and visual QC to guarantee defect-free delivery.
- Customized Hose Assemblies: We offer hoses with tailored lengths, pressures, and end fittings to meet specific rig and project requirements.
- High Performance Material Selection: We use premium synthetic rubbers, steel wires, and bonding compounds to ensure top durability and chemical resistance.
- Wide Pressure and Temperature Range: Our hoses are designed to handle up to 7,500 psi and temperatures from -40°C to +150°C, ideal for harsh drilling sites.
Frequently Asked Questions
Q: Are your hoses flame retardant?
A: Yes, we offer models with flame-resistant covers to meet safety standards in high-risk zones.
Q: Do you offer OEM or private label service?
A: Yes, we support OEM production and branding for distributors and equipment manufacturers.
Q: How are hoses packaged for shipment?
A: Hoses are wrapped, capped, and palletized or wood-crated for international transport.
Q: What certifications do your products have?
A: Our hoses are API 7K certified and manufactured under ISO 9001 quality management systems.

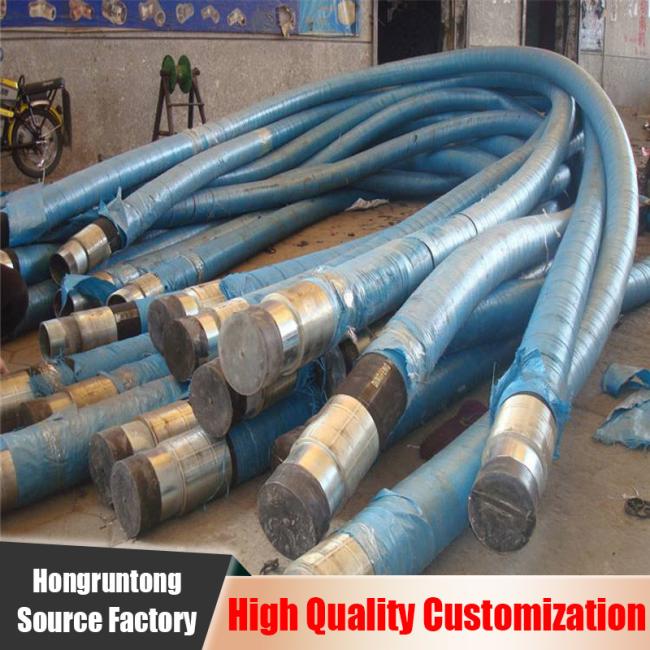

Product Images
