Natural Rubber Slurry Suction Pipe Continental Discharge Manure Drag Hose OEM
Price:
$56-$180
MOQ:
1
Delivery Time:
5-7 Work Days
Brand:
Hongruntong Marine
Product Description
Bend Slurry Suction Hose Continental Discharge Manure Drag Hose
Slurry Pipe Bend Continental Discharge Slurry Manure Drag Hose For Sale

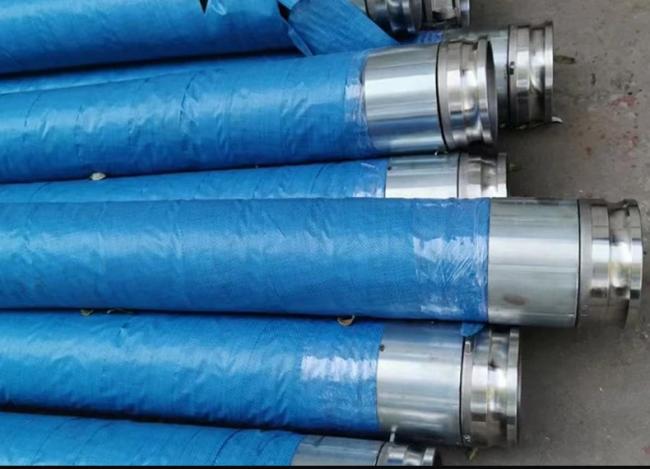

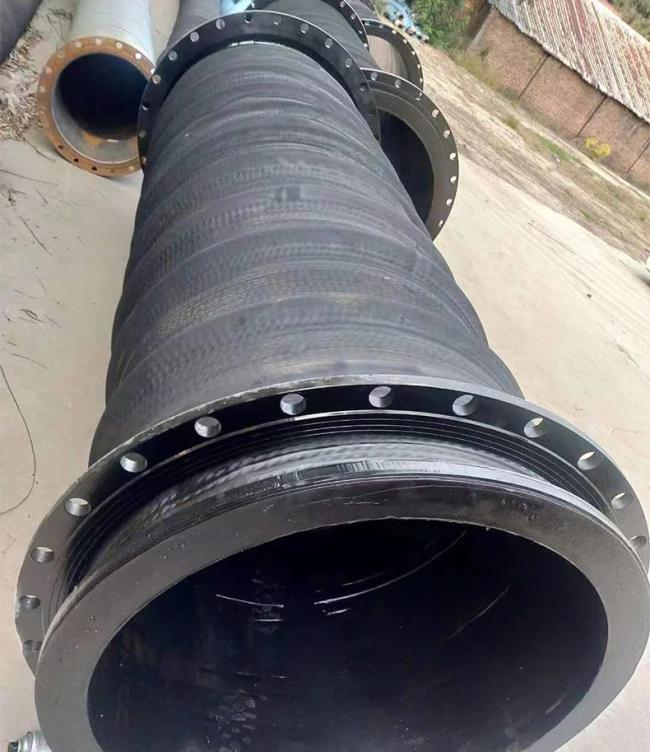

Slurry Suction Hose – Optimized for Heavy-Duty Material Transport
The Slurry Suction Hose is a high-performance solution designed for the efficient suction and transfer of abrasive materials like slurry, sand, and gravel. Its rugged design and specialized construction provide a dependable option for industries where durability and reliability are essential. Whether in dredging, mining, or industrial applications, this hose ensures uninterrupted performance and reduces downtime.

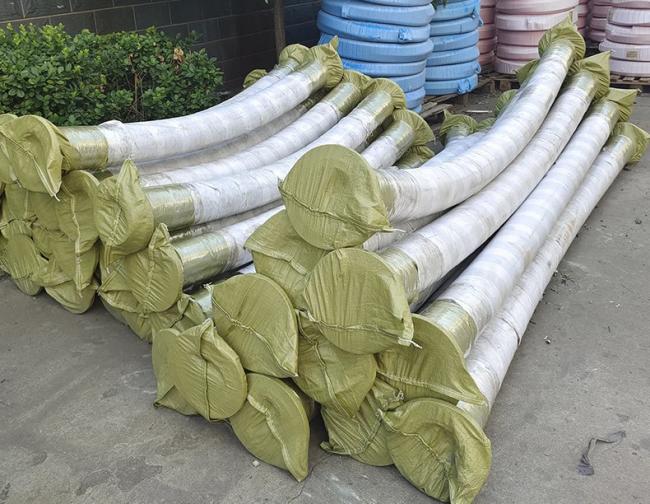

Construction Details
| Component | Specification |
|---|---|
| Inner Liner | Natural rubber in various thicknesses and compounds |
| Reinforcement | Nylon cord fabric with spring steel wire helix |
| Outer Cover | Black abrasion and UV-resistant natural rubber |
Technical Specifications
| Parameter | Specification |
|---|---|
| Hose Size | 50~1500 |
| Hose Length | Up to 12m |
| Pressure Rating | 5-40bar |
| Temperature Rating | -40°C to +80°C |
| Safety Factor | 4:1 |
| Bend Radius | 8 to 10 times diameter (Standard) |

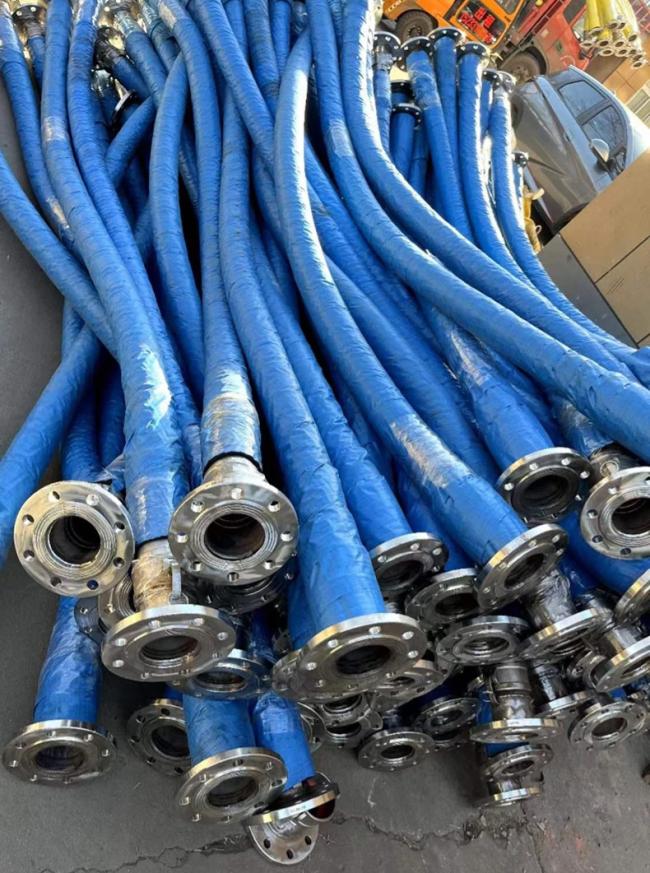

| End Fittings | Fixed flanges, swivel flanges, plain cut, cuffed, swollen, custom fittings |
| Flange Types | D, E, F, ANSI 150, ANSI 300, Custom |
| Materials | Stainless steel, Hot-dipped galvanised, Carbon steel, Custom paint |
Product Features
- Abrasion-Resistant Inner Lining: The inner layer is crafted from high-grade wear-resistant rubber, providing exceptional protection against abrasive particles and extending service life.
- Reinforced Structural Layers: Equipped with a combination of fabric and steel wire reinforcements, the hose resists kinking and collapse under high suction forces.
- Wide Operational Range: Capable of withstanding extreme temperatures and high vacuum pressures, ensuring optimal performance in various working conditions.
Applications
- Marine Dredging: Used for suction and transfer of sand, silt, and slurry in dredging projects.
- Mining Sites: Handles heavy-duty slurry transfer in mining operations.
- Industrial Processing: Suitable for transferring liquid-solid mixtures in chemical plants, refineries, and factories.
Key Advantages
- Custom-Made Options: Sizes, lengths, and end fittings can be tailored to project requirements.
- Lightweight and Flexible: Designed for ease of handling and quick installation.
- Weather-Resistant Properties: Protected against UV, ozone, and environmental wear for outdoor use.
Frequently Asked Questions
Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
What about the lead time of the sample or the final order?
3-7 days for normal samples
20-40 days for a formal order.
20-40 days for a formal order.
How much is the minimum quantity for each item in one order?
1 piece for each item.
Is it possible to print your logo or brand on the hose?
Yes, we can print your logo or design on the hose after receipt of your formal authorization.
Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all the listed rubber hose.
