Multiple Sizes HDPE Hose Floats High Visibility Color Dredge Floats Weather Resistant

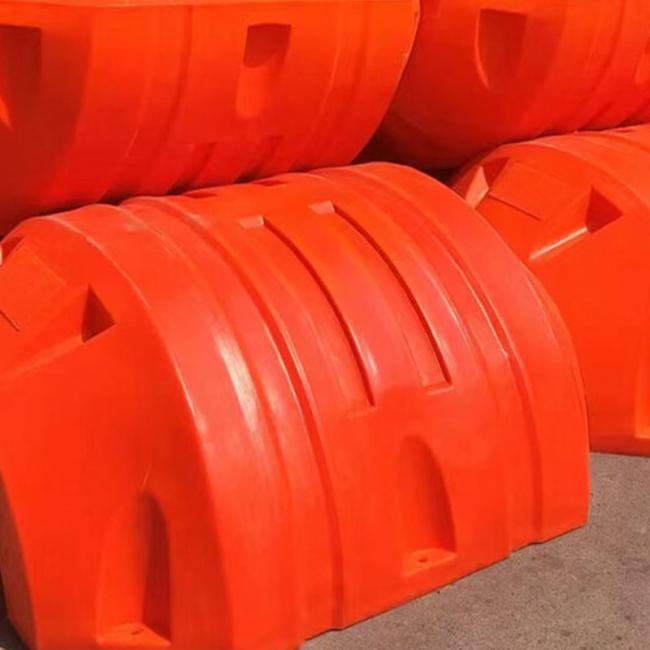

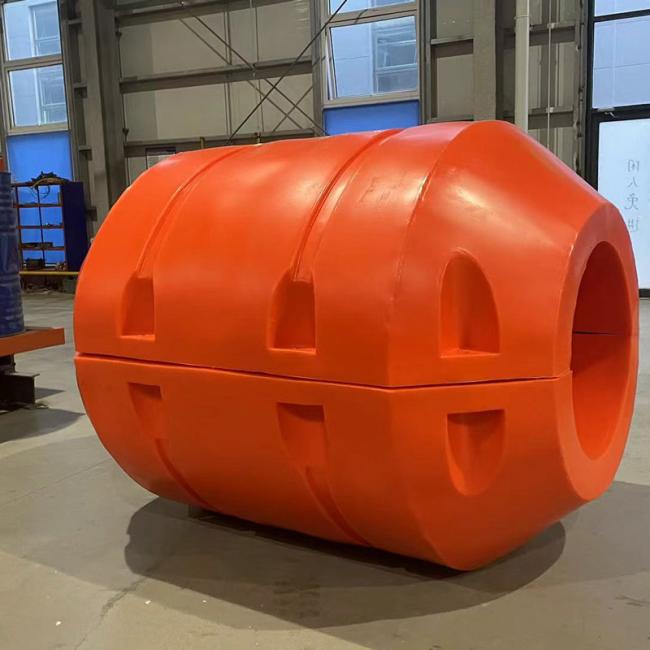

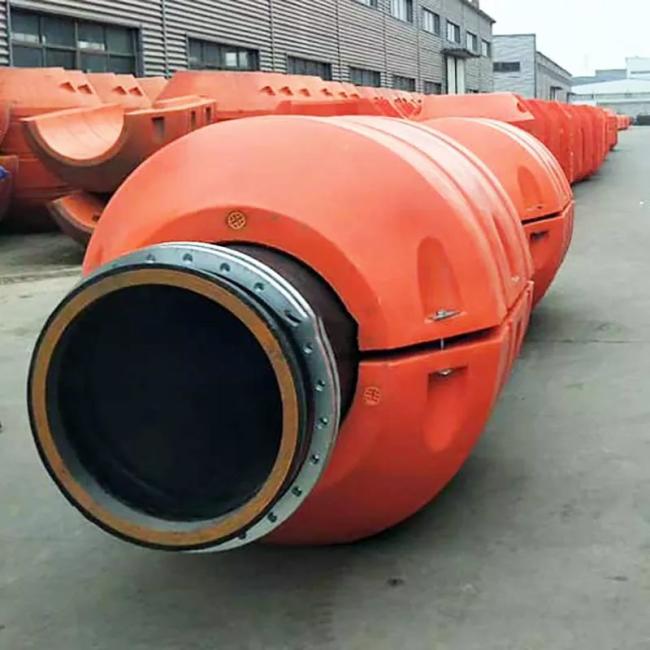

Our General Purpose Hose Float is engineered to provide reliable buoyancy and long-term durability for marine hoses and pipes in various environments. Manufactured using high-quality HDPE (High-Density Polyethylene), it resists UV radiation, saltwater corrosion, and harsh weather conditions. Each float consists of two bolted halves, allowing for quick installation and easy maintenance. Whether used in dredging, mining, or offshore applications, this float ensures secure pipe positioning and reduces the risk of damage from sinking or twisting. Its bright color enhances visibility and safety on open water.
| Item | Requirements | Item | Requirements |
|---|---|---|---|
| Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
| Break Elongation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
| Impact Strength | ≥32.4KJ/m2 | Breaking Elongation | 4-6% |
| Bending Strength | ≥15.7MPa | Compressive Strength | 0.1-0.24MPa |
| Weather Resistance After total aging energy≥3.5GJ/m2 |
Break Elongation %≥ | 10 | |
| Oxidative Induction Time 200°Cmm≥ | 10 | ||
| Characteristic | |||
| * Good flexibility, excellent impact resistance, particularly suitable for construction in open sea | * Lightweight weight easy to install and handle, low costs for moving | * High corrosive resistance, 3 times longer life than steel floats | * Higher cost performance than steel float |
| I.D. | O.D. | Length | Thickness | Net Buoyancy |
|---|---|---|---|---|
| mm | mm | mm | mm | KGS/Float |
| 160-180 | 500 | 800 | 4 | 280 |
| 225 | 600 | 700 | 4 | 320 |
| 280 | 700 | 900 | 4 | 450 |
| 340 | 1000 | 1000 | 6 | 500 |
| 410 | 1100 | 1100 | 6 | 550 |
| 460 | 1200 | 1200 | 6 | 1200 |
| 510 | 1300 | 1300 | 7 | 1250 |
| 560 | 1300 | 1500 | 8 | 1360 |
| 610 | 1400 | 1600 | 8 | 1600 |
| 630 | 1480 | 1600 | 8 | 1950 |
| 680 | 1550 | 1800 | 8 | 2200 |
| 730 | 1620 | 1900 | 9 | 2300 |
| 780 | 1700 | 2000 | 9 | 2700 |
| 840 | 1850 | 2100 | 12 | 3200 |
| 890 | 2000 | 2400 | 12 | 4600 |
| 940 | 2040 | 2500 | 13 | 4900 |
| 1150 | 2400 | 2600 | 14 | 6500 |
| *NOTE: The floaters customized are available. | ||||
Our hose floats are treated with UV stabilizers and designed to withstand extreme temperatures, humidity, and continuous sunlight exposure. Whether deployed in tropical marine waters or cold inland rivers, the float maintains structural integrity and color stability over time, ensuring reliable year-round operation.
Most models are produced in bright orange or yellow, significantly improving visibility in marine traffic zones. This enhances safety for surrounding vessels and workers. Optional reflective strips and numbering can also be added for nighttime operation or tracking purposes.
These floats are suitable for a wide range of applications, including dredging, offshore oil transport, aquaculture, environmental cleanup, and mining slurry systems. Their modular design makes them adaptable to different hose sizes, pressures, and operating environments, giving users a versatile and scalable solution.
We offer customized hose float solutions to meet specific project needs. Options include varying buoyancy levels, dimensions, colors, logos, and even integrated sensor mounts. This flexibility ensures the product aligns with your operational standards, branding, and technical specifications.
- Dredging pipelines
- Marine hose deployment
- Offshore oil and gas operations
- Slurry transportation in mining
- Aquaculture and fish farming systems
All raw materials are sourced from certified suppliers and fully traceable through our ERP system. Our products comply with ISO, CE, and relevant marine safety regulations, offering clients peace of mind in terms of both quality and regulatory compliance.
With well-established logistics partnerships and efficient supply chain management, we ensure timely delivery worldwide. Our floats are shipped to over 50 countries, with on-time delivery rates consistently above 98%, even for large-volume or urgent orders.
We provide full lifecycle support—from pre-sales consultation and technical drawings to on-site installation guidance and after-sales troubleshooting. Our multilingual team ensures clear communication and fast response, wherever your project is located.
While we have a strong foundation, we continuously invest in innovation. Our R&D team actively develops new float designs, eco-friendly materials, and integrated monitoring technologies to meet evolving industry demands and environmental standards.
A: Yes, we can provide custom colors and add logos, serial numbers, or other markings upon request.

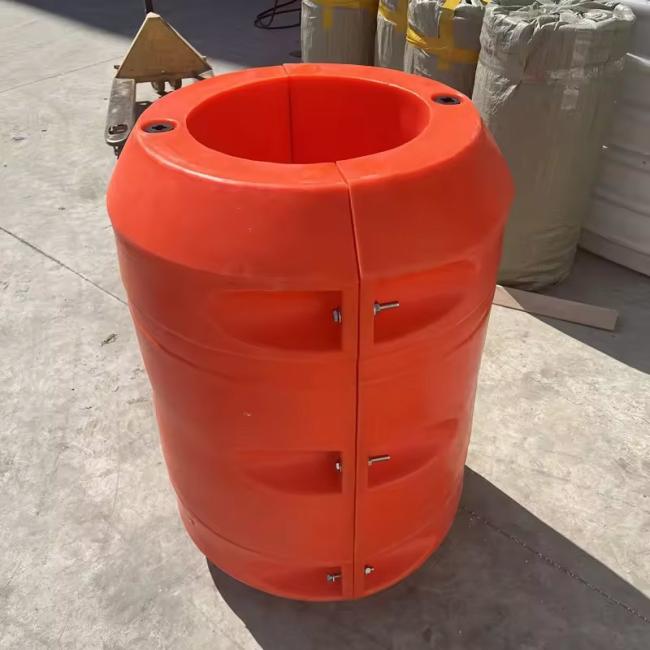

A: Each float consists of two halves secured with stainless steel bolts around the pipe, allowing quick and easy installation.
A: Yes, they can be removed, inspected, and reused in different projects if properly maintained.
A: Yes, we provide buoyancy tests, material test reports, and ISO/CE certification documents upon request.
