Heavy Duty Dredge Hose High Pressure Resistant Dredge Pipeline Slurry Transport

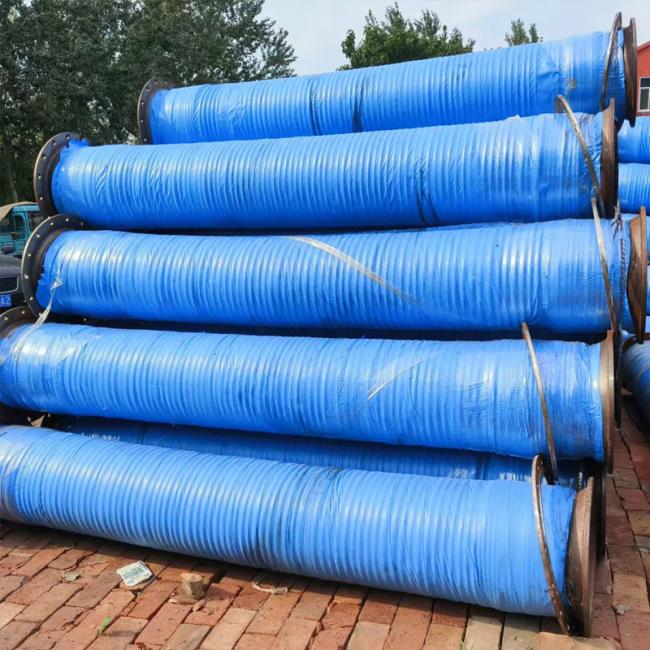

Dredge Pipeline systems are engineered for high-pressure slurry transport in demanding marine and offshore environments. The system integrates heavy-duty steel pipes with flexible dredge hose sections to form a continuous and efficient conveying line for sediment, sand, and mineral mixtures. Available in diameters ranging from 150 mm to over 1000 mm, these pipelines are designed to meet varying flow rates and project scales.
Constructed using high-strength carbon steel and lined with abrasion-resistant materials, the pipeline ensures durability when handling high-density slurry. The external coating provides excellent corrosion resistance, making it suitable for long-term deployment in saltwater conditions. The modular flange connection design allows for rapid installation and secure sealing, minimizing leakage risks under high pressure.
With superior hydraulic performance and low friction loss, dredge pipelines significantly improve transport efficiency while reducing energy consumption. They are widely used in offshore construction, artificial island development, and long-distance slurry transfer operations, offering a reliable and cost-effective solution for complex dredging projects.
A large-scale offshore reclamation project required transporting dredged sand over a distance of 3.8 kilometers to build an industrial platform. The project involved continuous pumping of high-density slurry with varying solid concentrations.
The main challenge was maintaining pipeline stability under strong currents and wave action while ensuring uninterrupted material flow. A dredge pipeline system with reinforced steel pipes and strategically placed flexible hose sections was deployed to absorb movement and reduce stress concentration.
During operation, the system maintained stable pressure and achieved a consistent flow rate exceeding 5000 m³/h. Compared to the previous pipeline solution, downtime was reduced by 40%, and maintenance costs decreased significantly. The project was completed ahead of schedule, and the client praised the system for its reliability and adaptability in offshore conditions.
| Name | Dredge Pipeline |
|---|---|
| Nominal Bores | From 150mm (6") to 1200mm (47") |
| Length | Up to 11.8 Metres (38ft) |
| Working Pressure | Up to 20 bar |
| Safety Factor | 4:1 |
| Flange Options | Fixed, Swivel, Double-Flange and Built-in-Nipple Designs |
| Features | Heavy-Duty Robust Construction Designed to Handle Large Dredged Particles Hoop-Ring or Spring-Wire-Helix Construction for Flexibility or Full Vacuum During Service Tailor-Made Designs, Including Self-Floater, Suction Dredge Hose and Flexible Discharge Hoses Suitable for Slurries Containing Rock, Shell and Coral |
| Model | I.D. | W.P. | B.P. | Min Bending Radius | Wear Layer Thickness | Length | |
|---|---|---|---|---|---|---|---|
| inch | mm | bar | bar | mm | mm | m | |
| HM-DP150 | 6 | 150 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DP200 | 8 | 200 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DP250 | 10 | 250 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-DP300 | 12 | 300 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DP350 | 14 | 350 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DP400 | 16 | 400 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DP450 | 18 | 450 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DP500 | 20 | 500 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-DP600 | 24 | 600 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-DP650 | 26 | 650 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-DP700 | 28 | 700 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DP750 | 30 | 750 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DP800 | 32 | 800 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DP850 | 34 | 850 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-DP900 | 36 | 900 | 25-30 | 75-90 | 15D | 30-50 | 11.8 |
| HM-DP1000 | 40 | 1000 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
| HM-DP1100 | 44 | 1100 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
The dredge pipeline utilizes precision-engineered flange connections combined with high-quality sealing gaskets to ensure leak-free operation under high pressure. This design minimizes slurry loss and environmental contamination while maintaining stable flow conditions.
The pipeline system is designed with modular sections that can be quickly assembled and disassembled. This feature significantly reduces installation time, especially in remote or offshore environments where efficiency is critical.
Manufactured from high-strength steel, the pipeline can withstand external impacts, internal pressure fluctuations, and mechanical stress. This robustness ensures safe operation even in challenging conditions.
The internal surface of the pipeline is engineered to reduce friction and turbulence, allowing smoother slurry flow. This results in improved transport efficiency and reduced energy consumption from pumping systems.
- Offshore Engineering Projects: Dredge pipelines are widely used in offshore construction, including artificial island development and seabed preparation. Their durability and flexibility make them suitable for dynamic marine environments.
- Long Distance Slurry Transport: For projects requiring material transport over several kilometers, these pipelines provide efficient and continuous delivery, reducing reliance on multiple handling systems.
- Coastal Protection and Beach Nourishment: Pipelines are used to transport sand for shoreline reinforcement, helping prevent coastal erosion and maintaining ecological balance.
- Strong Manufacturing Capability: Advanced production facilities equipped with modern machinery and strict quality control systems ensure consistent product quality and large-volume order handling.
- Flexible Customization Options: Tailored pipeline solutions based on project specifications, including pipe diameter, wall thickness, pressure rating, and lining materials.
- Reliable Delivery and Logistics: Efficient production planning and global shipping experience ensure timely delivery to project sites worldwide.
- Professional Technical Support Team: Dedicated engineering team provides technical consultation, installation guidance, and after-sales support.
- What connection types are available?
Flange connections are standard, but quick-release couplings can also be customized. - How is leakage prevented?
High-quality gaskets and precision machining ensure tight sealing under pressure. - Can pipelines be installed offshore?
Yes, they are specifically designed for offshore and marine environments. - What is the maximum transport distance?
It depends on pump capacity, but pipelines can support several kilometers. - Are spare parts available?
Yes, replacement parts such as gaskets and hose sections are readily available.
