Wear Resistant Floating Dredge Pipeline Leak Proof For Marine Slurry Transport

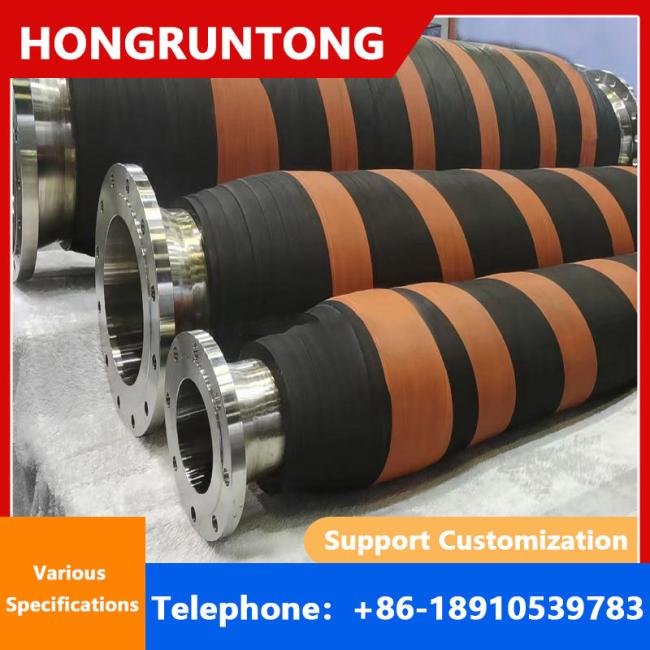

The Floating Pipeline is a high-efficiency marine slurry transportation system designed for dredging, mining discharge, and large-scale offshore engineering operations. It features a heavy-duty multi-layer reinforced carcass combined with a high-performance abrasion-resistant rubber inner tube, ensuring stable operation under continuous high-pressure flow conditions.
In a deep-sea dredging project in Indonesia, the contractor needed to transport large volumes of seabed material from a dredging vessel located offshore to a discharge point over 2 kilometers away. After implementing Hongruntong Marine Floating Pipeline, the system achieved stable surface positioning throughout continuous 20-hour daily operation cycles, recording a 36% increase in material discharge efficiency and significantly reduced downtime.
| Material | PTFE, Galvanized Steel Wire, PVC Coated Polyester Cloth |
| Product Name | Floating Pipeline |
| Inner Wire | Stainless Steel 316 |
| Lining | Polyamide |
| Carcass | Polyamide fabrics, Polyester films |
| Outer Wire | Stainless Steel 316 |
| Working Pressure | 10 bar to 21 bar |
| Maximum Length | 40 meters |
| Sample | Available |
| Delivery time | Normally 3-5 days |
| Model | Dimensions (mm) | Dimensions (inch) | Working Pressure (bar) | Working Pressure (psi) | Safety Factor | Bending Radius (mm) | Weight (kg) | Length (m) |
|---|---|---|---|---|---|---|---|---|
| HM-FDH20 | 20 | 3/4" | 16 | 230 | 6:1 | 80 | 0.8 | 40 |
| HM-FDH25 | 25 | 1" | 16 | 230 | 6:1 | 100 | 1 | 40 |
| HM-FDH32 | 32 | 11/4" | 16 | 230 | 6:1 | 125 | 1.3 | 40 |
| HM-FDH40 | 40 | 11/2" | 16 | 230 | 6:1 | 140 | 1.5 | 40 |
| HM-FDH50 | 50 | 2" | 16 | 230 | 6:1 | 180 | 2.5 | 40 |
| HM-FDH65 | 65 | 21/2" | 16 | 230 | 6:1 | 200 | 3.3 | 40 |
| HM-FDH80 | 80 | 3" | 16 | 230 | 6:1 | 260 | 4 | 40 |
| HM-FDH100 | 100 | 4" | 16 | 230 | 6:1 | 380 | 6.8 | 40 |
| HM-FDH125 | 125 | 5" | 16 | 230 | 6:1 | 440 | 9.2 | 40 |
| HM-FDH150 | 150 | 6" | 16 | 230 | 6:1 | 500 | 13.2 | 40 |
| HM-FDH200 | 200 | 8" | 16 | 230 | 6:1 | 750 | 18 | 40 |
| HM-FDH250 | 250 | 10" | 16 | 230 | 6:1 | 900 | 26 | 25 |
- Dynamic Load Resistant Structural System: Withstands continuous dynamic loading from wave motion and vessel movement with reinforced carcass structure
- High Efficiency Abrasion Protection Layer: Advanced wear-resistant rubber technology for superior resistance to abrasive slurry materials
- Optimized Hydraulic Flow Channel Design: Minimizes friction loss and improves slurry transport efficiency
- Stable Integrated Buoyancy Performance: Built-in flotation system ensures uniform buoyancy distribution
- Offshore Mining Slurry Transport
- Coastal Reclamation Engineering
- Marine Infrastructure Construction
- Industrial Grade Manufacturing Technology: Advanced production processes including precision vulcanization and multi-layer reinforcement winding
- Customized Engineering Design Capability: Engineered based on real project conditions for maximum operational efficiency
- Comprehensive Testing and Verification Process: Strict testing procedures including pressure resistance and flotation stability assessments
- Global Engineering Project Experience: Proven performance in complex marine environments worldwide
Yes, it is designed for high density sand slurry and sediment transport with strong abrasion resistance.
Depending on working conditions, the system can operate for several years with proper maintenance and usage control.
Yes, the buoyancy and reinforcement system is engineered for deep sea and long distance offshore applications.
No, the pipeline includes integrated buoyancy modules, eliminating the need for external floats.
Yes, it is compatible with a wide range of dredgers and pumping systems.
