Wear Resistant Ceramic Lined Rubber Hose with High Abrasion Resistance, Flexible Design, and Long Service Life for Slurry Conveying
Industrial-grade abrasion-resistant conveying component designed for high-solid-content slurry transport systems in mining and mineral processing industries.
Constructed using a composite engineering structure consisting of a high-strength elastomer outer body and an internal ceramic-lined wear channel. The ceramic lining is composed of high-purity alumina segments integrated into a flexible matrix, forming a hybrid structure that combines rigidity at the wear surface with flexibility at the structural body.
This design addresses the primary failure modes of conventional rubber hoses, including internal wall thinning, surface cracking, and structural fatigue under cyclic pressure loading.
Location: Western Australia Pilbara Region
Application: Large-scale iron ore mining and beneficiation plant slurry transport network
The Ceramic Hose solution was introduced as a replacement for critical high-wear pipeline segments, particularly at discharge points and high-impact directional zones. Following installation, the system demonstrated significantly improved wear resistance performance under continuous slurry flow conditions.
Operational lifecycle extension exceeded multiple times the original service interval, resulting in reduced maintenance frequency and improved system uptime.
| Name | Ceramic Hose Pipe |
| Tube | NR, BR, SBR |
| Reinforcement | High Tensile Steel Wire Spiral |
| Cover | NR, CR |
| Working Pressure | < 25 Bars |
| Flange Material | Q235B carbon steel paint |
| Working Temperature | -30℃ to +80℃ |
| Safety Factor | 5:1 |
| Inner Diameter (mm) | Working Pressure (Mpa) | Burst Pressure (Mpa) | Length (m) | Wall Thickness (mm) |
|---|---|---|---|---|
| 300 | 0.4-1.2 | 3.6 | 1-3 | 34-37 |
| 414 | 0.4-1.2 | 3.6 | 1-3 | 35-37 |
| 560 | 0.4-1.2 | 3.6 | 2-3 | 40-45 |
| 600 | 0.4-1.2 | 3.6 | 2-3 | 40-45 |
| 700 | 0.8-1.5 | 4.5 | 2-3 | 40-45 |
| 800 | 1.2-2.5 | 5.5 | 2-3 | 50-52 |
| 900 | 1.5-2.5 | 7.5 | 2-3 | 55-58 |
| 1000 | 2.0-2.5 | 7.5 | 3-5 | 75-78 |
Installed between the pump and cutter of the dredger, suction the slurry. Suction hose & armored hose with HB steel ring in, suitable for limestone, granite, coral, and minerals etc.
- High Abrasion Resistance
- Light Weight
- Oil and Heat Resistant
- Flexible, easy to bending

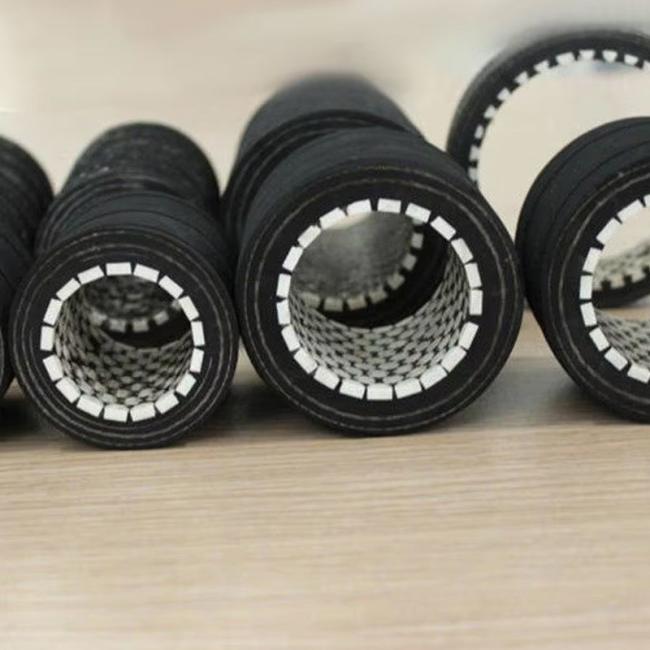

Ceramic Wear-Resistant Internal Lining Structure
The internal flow channel is engineered with high-hardness alumina ceramic segments that provide a controlled abrasion barrier, ensuring long-term dimensional stability under continuous abrasive flow conditions.
Reinforced Multi-Layer Composite Structural System
Integrates multiple reinforcement layers composed of high-tensile synthetic fibers embedded within elastomer matrices, ensuring stable deformation control and preventing structural fatigue failure.
Pressure Fluctuation Absorption Design
Engineered to maintain structural integrity under dynamic pressure variations commonly encountered in slurry pumping systems through elastic deformation of reinforcement layers.
Extended Operational Lifecycle Engineering
Integration of ceramic wear surfaces with reinforced elastomeric structure significantly extends operational lifespan in abrasive environments by isolating abrasive interaction from load-bearing components.
- Iron Ore Slurry Transport Systems: High-density mineral slurry pipelines with continuous abrasion from iron ore particles and silica-based materials
- Material Transfer Points: Flexible connection sections between crushing equipment, screening systems, and beneficiation units
- Tailings and Waste Slurry Discharge Systems: Long-distance tailings transport applications requiring long-term structural resistance
- Industrial Manufacturing Capability: Advanced production capability in manufacturing ceramic-lined composite hoses with controlled precision
- Engineering-Based Product Development: Applies engineering design principles focused on wear mechanics and structural load distribution
- Comprehensive Quality Control: Systematic inspection including pressure testing, abrasion resistance evaluation, and structural integrity verification
- Global Mining Industry Experience: Experience supplying engineered hose systems for mining and bulk material handling projects worldwide
Ceramic lining provides significantly higher hardness and abrasion resistance compared to elastomer materials, reducing direct wear from mineral particles and extending operational lifespan in slurry transport applications.
Yes, the structure is engineered for continuous-duty operation under cyclic pressure and abrasive flow conditions typical in mining slurry transport systems.
Ceramic Hose can be customized in diameter, length, and connection interfaces to integrate with existing pipeline systems without requiring major structural modifications.
The composite structure is designed to maintain mechanical stability under typical industrial temperature fluctuations, ensuring consistent performance in standard mining operating environments.
Maintenance requirements are minimal and generally limited to periodic external inspection and system pressure monitoring to ensure continued structural integrity.
