Heavy Duty Corrugated Sidewall Conveyor Belt High Tensile Strength Cleated Rubber Conveyor Belt
Price:
USD20-120/Meter
MOQ:
100 Meters
Delivery Time:
10-25 days
Brand:
MWIN
Product Description
High Tensile Strength Corrugated Sidewall Cleated Conveyor Rubber Belt With Big Loading Capacity

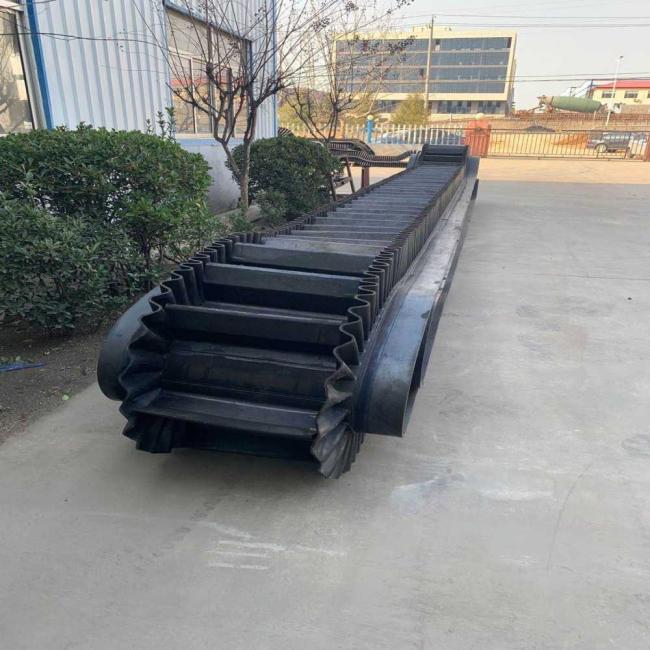

MWIN Corrugated Sidewall Conveyor Belt is a high-performance, heavy-duty conveyor belt engineered for large-inclination (0°-90°) and vertical bulk material handling. Manufactured by Qingdao MWIN Industry And Trade Co., Ltd., it integrates a robust base belt, flexible corrugated sidewalls, and reinforced transverse cleats to form enclosed material-carrying compartments, enabling efficient, spillage-free conveying in space-constrained environments.
This conveyor system is widely used in mining, cement, coal, ports, grain, and chemical industries, replacing traditional bucket elevators and complex multi-transfer systems.
Structure & Components
MWIN's corrugated sidewall belt features a three-part integrated design, bonded via high-temperature vulcanization for exceptional structural integrity:
Base Belt (Carrying & Traction Core)
- Reinforcement: Textile (polyester/nylon) or steel cord carcass, with tensile strength ranging from EP100 to ST2000 kN/m, supporting heavy loads and long conveying distances
- Rubber Compounds: Wear-resistant top cover (abrasion loss: 80-250 mm³), low-friction bottom cover, and thickened edge protection
Corrugated Sidewalls (Skirts)
- Design: Wave-shaped (sinusoidal, W-type) rubber sidewalls, flexible enough to bend around pulleys
- Specifications: Height from 50 mm to 400 mm, thickness 6-15 mm; available in standard and high-strength grades
- Function: Prevent lateral spillage and enable steep-angle conveying up to 90°
Transverse Cleats (Cross Partitions)
- Types: T-type, C-type, TC-type (tapered), and vertical cleats, customized for material characteristics
- Height: 50 mm to 400 mm, matching sidewall height to form sealed compartments
- Bonding: Vulcanized directly to base belt and sidewalls for high shear strength
Technical Dimensions
| Base Belt Width B (mm) | Sidewall Height H(mm) | Cleat Height H1(mm) | BF (mm) | BR (mm) | Belt Width (mm) |
|---|---|---|---|---|---|
| 300 | 40 | 35 | 25 | 180 | 35 |
| 300 | 60 | 55 | 50 | 120 | 40 |
| 300 | 80 | 75 | |||
| 400 | 60 | 55 | 50 | 180 | 60 |
| 400 | 80 | 75 | |||
| 400 | 100 | 90 | |||
| 500 | 80 | 75 | 50 | 250 | 75 |
| 500 | 100 | 90 | |||
| 500 | 120 | 110 | |||
| 650 | 100 | 90 | 50 | 350 | 100 |
| 650 | 120 | 110 | |||
| 650 | 160 | 140 | 75 | 300 | |
| 800 | 120 | 110 | 50 | 460 | 120 |
| 800 | 160 | 140 | 75 | 410 | |
| 800 | 200 | 180 | |||
| 1000 | 60 | 140 | 75 | 550 | 150 |
| 1000 | 200 | 280 | |||
| 1000 | 240 | 220 | |||
| 1200 | 160 | 140 | 75 | 690 | 180 |
| 1200 | 200 | 180 | |||
| 1200 | 240 | 220 | |||
| 1200 | 300 | 280 | 105 | 630 | |
| 1400 | 200 | 180 | 75 | 830 | 210 |
| 1400 | 240 | 220 | |||
| 1400 | 300 | 280 | 105 | 770 | |
| 1400 | 400 | 360 | |||
| 1600 | 200 | 180 | 75/105 | 970 | 240 |
Packaging & Shipping
PP waterproof cloth + Steel core + Side plastic sheet. Can be packed as per customer requirement. Usually can load 10-20 rolls into one 40HC container.
Delivery Time: Shipped in 15-30 days after payment
Outstanding Performance Features
- Ultra-High Inclination Capability: Conveys materials at angles from 0° to 90°, eliminating transfer points
- Space-Saving Design: Compact layout minimizes footprint and civil engineering costs
- High Conveying Efficiency: Enclosed compartments maximize loading volume, boosting throughput by 30%-50%
- Spillage & Dust Control: Sidewalls and cleats prevent material loss and dust emission
- Flexible Routing: Smoothly transitions between horizontal, inclined, and vertical sections
- Durable Construction: High-adhesion vulcanization and wear-resistant materials extend service life
- Versatile Material Compatibility: Handles powders, granules, lumps, pastes, and liquids (bulk density 0.5-2.5 t/m³)
- Low Energy Consumption: Reduced friction and optimized design lower power usage
Industrial Applications
Corrugated sidewall conveyor belts are used in industries where materials need to be transported at steep angles or vertically:
- Mining: Transporting coal, ore, and other minerals
- Agriculture: Handling grains, seeds, and fertilizers
- Construction: Moving sand, gravel, and cement
- Recycling: Transporting waste materials and recyclables
- Food Processing: Handling bulk food products like sugar, flour, and grains
- Power Plants: Transporting ash and other byproducts
Manufacturer Profile
Qingdao MWin Industry and Trade Company is a professional enterprise producing various categories of rubber conveyor belts, rubber seals and other rubber products. With many years of production, sales and export experience, our customers spread worldwide with excellent reputation.
We maintain high quality standards with efficient service, ensuring all products meet customer requirements. Our facility includes a separate laboratory with complete testing equipment to guarantee product quality for all samples and production batches.
