Heavy Duty Bucket Elevator Conveyor Belt Black Conveyor Belt For Mining Industry
Price:
USD30-150/Meter
MOQ:
80 Meters
Delivery Time:
10-25 days
Brand:
MWIN
Product Description
Heavy Duty Bucket Elevator Conveyor Belt for Cement Mining And Coal Conveyor System
Steel Cord Heavy Duty Bucket Elevator Conveyor Belt is a high-performance, heavy-density conveyor belt specifically engineered for vertical bucket elevators handling large volumes of bulk materials under severe working conditions. Featuring high-tensile steel cord as the load-bearing carcass combined with high-quality rubber covers, this belt is ideal for heavy-load, high-lift, and long-service-life conveying applications.
Product Structure
The belt consists of three main components:
- Steel cord tensile layer: High-strength, low-elongation steel cords arranged longitudinally to bear major tension
- Top and bottom rubber covers: Wear-resistant, impact-resistant rubber compound to protect the steel cord and resist abrasion
- Intermediate rubber: Ensures firm adhesion between steel cords and rubber layers, preventing delamination
Key Features
- High tensile strength for heavy-duty applications
- Excellent impact resistance and long service life
- Minimal elongation during operation
- Superior slotting properties and bending flexibility
- Ideal for long-distance, high-speed material transportation
This product is widely used in coal mining, ports, metallurgy, power generation, chemical processing, and various industrial fields for efficient material transport.
Product Specifications
Strength Parameters
| Strength | Tensile Strength (N/mm) | Steel Cord Diameter (mm) | Steel Cord Pitch (mm) | Top Cover (mm) | Bottom Cover (mm) | Weight (Kg/M) |
|---|---|---|---|---|---|---|
| ST630 | 630 | 3.0 | 10 | 5 | 5 | 18 |
| ST800 | 800 | 3.5 | 10 | 5 | 5 | 19.5 |
| ST1000 | 1000 | 4.0 | 12 | 6 | 5 | 22.4 |
| ST1250 | 1250 | 4.5 | 12 | 6 | 6 | 24 |
| ST1600 | 1600 | 5.0 | 12 | 6 | 6 | 25.9 |
| ST2000 | 2000 | 6.0 | 12 | 6 | 6 | 31.8 |
| ST2500 | 2500 | 7.2 | 15 | 6 | 6 | 36.1 |
| ST3150 | 3150 | 8.1 | 15 | 8 | 8 | 40.4 |
| ST3500 | 3500 | 8.6 | 15 | 8 | 8 | 43.8 |
| ST4000 | 4000 | 8.9 | 15 | 8 | 8 | 45 |
| ST4500 | 4500 | 9.7 | 16 | 8.5 | 8.5 | 46.7 |
| ST5000 | 5000 | 10.9 | 17 | 9 | 9 | 50.7 |
Production Standards
Rubber Cover Grade Specifications
| Rubber Cover Grade | Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) |
|---|---|---|---|
| H | 24.0 | 450 | 120 |
| D | 18.0 | 400 | 100 |
| L | 15.0 | 350 | 200 |
DIN 22102 Standards
| Standards | Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) | Cover to Ply N/mm (≤1.5mm) | Cover to Ply N/mm (>1.5mm) | Ply to Ply N/mm |
|---|---|---|---|---|---|---|
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
AS 1332 Standards
| Standards | Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion (mm³) | Cover to Ply N/mm (≤1.9mm) | Cover to Ply N/mm (>1.9mm) | Ply to Ply N/mm |
|---|---|---|---|---|---|---|
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
We also offer belts with cover grades in accordance with international standards including DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, and others.
Packaging & Shipping
Standard packaging includes PP film wrapping with secure belt fastening for optimal protection. Customized packaging options available in steel cages, pallets, or according to specific customer requirements.
Company Profile
Qingdao MWin Rubber Products Co., Ltd. is a manufacturer specializing in industrial rubber products, particularly material handling system solutions. The company is dedicated to the R&D, production, and sales of various high-performance rubber conveyor belts and related equipment. Our core business focuses on providing reliable and efficient bulk material handling products for heavy industries such as mining, ports, power generation, building materials, and grain.
With many years of production, sales, and export experience, our customer base spans globally, earning us an excellent reputation. We maintain high quality standards and efficient service to fully comply with customer requirements and deliver qualified products.
Related Products
Heat Resistant Conveyor Belt
Constructed from multiple layers of rubber-cotton canvas or polyester canvas bonded through high-temperature vulcanization. Suitable for conveying hot materials below 175°C including coke, cement, slag, and hot castings.
Primarily used in metallurgical and construction industries for high-temperature material transport. Features EPDM rubber cover layers and high-temperature canvas fabric with excellent heat resistance and extended lifespan.
Chevron Pattern Conveyor Belt
Angled conveyor belt with patterned cover rubber on the working surface and flat cover on the non-working surface. Available in various belt core materials including cotton canvas, polyester-cotton blends, nylon, and polyester.
Ideal for conveying materials with inclination angles of 0-40° to prevent material sliding. Custom pattern designs available according to user requirements.
Corrugated Sidewall Cleat Conveyor Belt
High-angle conveyor system consisting of base belt, sidewalls, and cleats. Sidewalls prevent material slippage and spillage through secondary vulcanization process for strong connection.
- Increased conveying angle (30-90 degrees)
- Compact footprint with low investment requirements
- High conveying capacity and lifting height
- Smooth transition from horizontal to inclined operation
- Ideal for powders, granules, small chunks, pastes, and liquids
- Energy efficient with simple structure and long service life
Suitable for metallurgy, power generation, coal, chemical, grain, ports, and machinery industries.
PVC/PU Conveyor Belt
Made from polyvinyl chloride (PVC) with polyester fiber cloth and PVC adhesive construction. Operating temperature range: -10°C to +80°C. Features international toothed joints and excellent lateral stability.
Widely used in food, tobacco, logistics, packaging, coal mining, metallurgical, and chemical industries.
Belt Joint Solutions
Conveyor belt splicing methods include mechanical splicing using belt buckles, cold bonding with adhesives, and hot vulcanization. Each method offers distinct advantages for different applications and belt types.
Belt Conveyor Machine Rollers
Crucial components supporting conveyor belt and material weight. Available in steel and plastic materials, accounting for significant portions of conveyor system cost and performance.

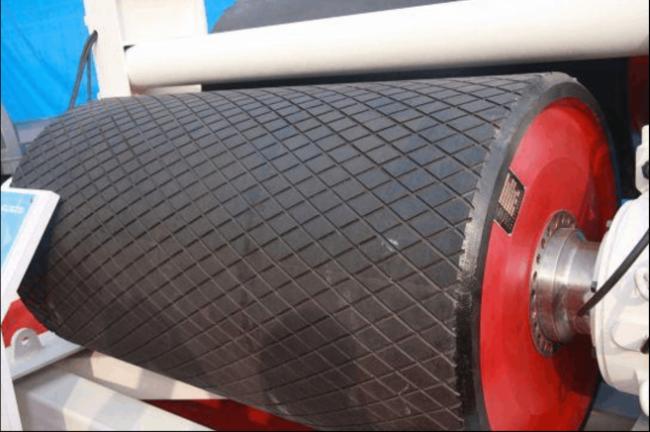

Rubber Coated Pulleys
Pulley lagging process involves wrapping elastic, wear-resistant rubber around metal rollers to increase friction, protect belts, and ensure efficient, stable conveyor operation.
Frequently Asked Questions
How soon can we get a reply after we send you an inquiry?
We will reply to you within 2 hours after receiving the inquiry during working days.
Are you a direct manufacturer or a trading company?
We have our own factory and international trade department, handling both production and sales directly.
What products can you provide?
We produce ST cord conveyor belts, sensor conveyor belts, pip conveyor belts, anti-tear conveyor belts, EPDM conveyor belts, high temperature resistant conveyor belts, heat resistant conveyor belts, fire resistant conveyor belts, EP conveyor belts, NN conveyor belts, SW fabric conveyor belts, cotton conveyor belts, chevron conveyor belts, rough top conveyor belts, oil resistant conveyor belts, chemical resistant conveyor belts, flat transmission belts, and rubber V belts.
What application fields are your products mainly involved in?
Primarily used for transportation tasks in metallurgy, chemical, cement, coking, steel and other industrial sectors.
What is the production capacity of your company?
Our facility covers 20,000 square meters with 12,000 square meters of building space. We operate 12 production lines with comprehensive product design, production, quality control, and after-sales service departments.
How does your company guarantee product quality?
We maintain complete physical and chemical testing equipment with a dedicated quality management team. All properties are controlled from raw material analysis through semi-finished products to finished product testing.
What is the payment method?
We confirm transaction methods during quoting, including FOB, CIF, CNF or other negotiable methods based on order quantity.
How to deliver goods to customers?
We primarily ship by sea from Qingdao port for convenience. For urgent shipments, air transport is available through the nearby international airport.
