Heavy Duty Industrial Rubber Corrugated Sidewall Cleated Conveyor Belt For Bulk Material Handling
MWIN Corrugated Sidewall Conveyor Belt is a high-performance, heavy-duty conveyor belt engineered for large-inclination (0°–90°) and vertical bulk material handling. Manufactured by Qingdao MWIN Industry And Trade Co., Ltd., it integrates a robust base belt, flexible corrugated sidewalls, and reinforced transverse cleats to form enclosed material-carrying compartments, enabling efficient, spillage-free conveying in space-constrained environments. It is widely used in mining, cement, coal, ports, grain, and chemical industries, replacing traditional bucket elevators and complex multi-transfer systems.

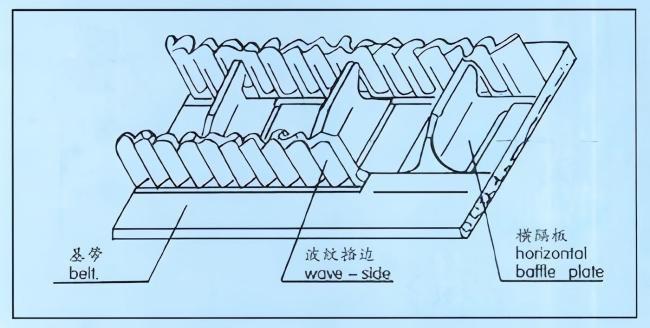

1. Corrugated Sidewalls: The most distinctive feature is the vertical, corrugated (wave-shaped) rubber walls vulcanized onto both edges of the base belt. These sidewalls effectively contain the material and prevent it from rolling or sliding off the sides during high-angle ascent.
2. Cross Cleats (Bars): Flexible rubber cleats, spaced at regular intervals across the width of the belt, are vulcanized between the sidewalls. They form a series of closed compartments or "pockets" that securely hold the material in place, preventing backflow.
3. High-Strength Base Belt: The foundation is a robust fabric-reinforced (e.g., EP, NN) or steel cord reinforced belt, providing the necessary tensile strength to carry the loaded material and withstand the system's drive forces.
4. Flexibility: Despite its strength, the belt system remains flexible enough to travel over standard conveyor pulleys at the head and tail ends.
| Parameter | Value Range | Notes |
|---|---|---|
| Belt Width | 300 mm - 2500 mm | Custom widths available |
| Sidewall Height | 60 mm - 300 mm | Standard: 100/160/200/240/300 mm |
| Cleat Height | 40 mm - 280 mm | T/C/TC types available |
| Tensile Strength | EP100 - ST2000 kN/m | Textile or steel cord reinforcement |
| Operating Temperature | -30°C to +150°C | Special grades for extreme temps |
| Max Conveying Angle | 0° - 90° | Vertical lifting capability |
| Material Particle Size | Up to 400 mm | Suitable for large bulk materials |
| Conveying Capacity | 1 m³/h - 6000 m³/h | Customizable for throughput demands |
| Standards | GB/T 10822, ISO 14890 | Compliance with global norms |
- T-Type Cleats: Low-profile cleats for light materials and moderate inclines
- C-Type Cleats: Medium-height cleats for general-purpose use
- TC-Type Cleats: Combination of T and C cleats for heavy-duty applications
- S-Type Cleats: High cleats for steep inclines and heavy materials
• Mining & Quarrying: Coal, ore, aggregates, and minerals.
• Cement & Building Materials: Clinker, limestone, gypsum, sand.
• Grain & Agriculture: Wheat, corn, soybeans, feed, fertilizer.
• Ports & Terminals: Bulk cargo loading/unloading with limited space.
• Power Plants: Coal, ash, and slag handling.
• Chemicals & Industrial: Plastic pellets, cement additives, industrial powders.
