Intelligent Integrated Modular Wastewater Treatment Plant Sludge Dewatering Septic Tank
Intelligent Integrated Sewage Treatment Equipment, Sludge Dewatering, Septic Tank

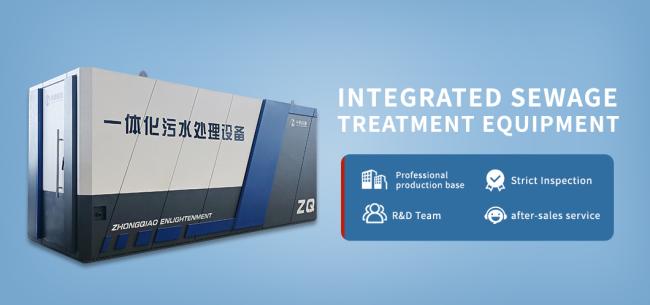

Zhong Qiao Box Integrated Sewage Treatment Equipment is a high-efficiency, energy-saving, and environmentally friendlysewage treatment equipment independently developed and produced by Shandong Zhong Qiao Enlightenment EnvironmentalProtection Equipment Co., Ltd. This equipment integrates multiple functions such as sewage treatment, sludge-waterseparation, and disinfection, and is widely used in the treatment of various industrial and domestic sewage.
The decorative panels are formed from cold-rolled steel sheets through CNC bending in one step. The anti-corrosion treatmentuses powder electrostatic spraying, followed by melting, leveling, and curing at 200 degrees Celsius, resulting in a smooth and brightappearance.
The decorative panels are reinforced with square steel supports between the panels and the main body. They can be equippedwith electric heating and insulation materials like rubber-plastic or rock wool, ensuring normal operation even in the cold regions ofnorthern areas.
| Model | Treatment Capacity (m³/day) |
Dimensions (L*W*H)(mm) |
Equipment Weight (t) |
Operating Weight (t) |
Total Installed Power (kw) |
Operating Power (kw) |
Operating Cost (CNY/ton) |
Operating Cost (CNY/day) |
Cable Specifications (mm²) |
| WSZ-0.25 | 5 | 2,340*1,200*1,660 | 1.33 | 5.32 | 3.84 | 2.72 | 3.2 | 16.01 | 1.5 |
| WSZ-0.5 | 10 | 2,350*1,518*2,160 | 1.72 | 9.42 | 3.84 | 2.72 | 1.6 | 16.01 | 1.5 |
| WSZ-1 | 20 | 4,831*1,518*2,160 | 2.61 | 18.44 | 4.6 | 3.1 | 0.92 | 18.47 | 2.5 |
| WSZ-1.25 | 30 | 4,705*2,030*2,160 | 3.09 | 23.7 | 6.1 | 3.85 | 0.78 | 23.33 | 2.5 |
| WSZ-1.67 | 40 | 6,125*2,030*2,160 | 3.68 | 30.53 | 6.1 | 3.85 | 0.68 | 27.22 | 2.5 |
| WSZ-2 | 50 | 6,125*2,030*2,660 | 4.25 | 37.32 | 6.1 | 3.85 | 0.54 | 27.22 | 2.5 |
| WSZ-2.5 | 60 | 6,596*2,262*2,660 | 4.78 | 44.47 | 7.5 | 4.55 | 0.54 | 32.51 | 4 |
| WSZ-3 | 70 | 7,659*2,262*2,660 | 5.3 | 51.38 | 7.5 | 4.55 | 0.46 | 32.51 | 4 |
| WSZ-3.5 | 80 | 8,722*2,262*2,660 | 5.81 | 58.29 | 9.1 | 5.35 | 0.48 | 38.56 | 4 |
| WSZ-4 | 100 | 10,850*2,262*2,660 | 6.85 | 72.14 | 9.1 | 5.35 | 0.44 | 44.06 | 4 |
| WSZ-5 | 120 | 12,975*2,262*2,660 | 8.16 | 86.23 | 14.85 | 8.6 | 0.62 | 74.3 | 6 |
| WSZ-6 | 150 | 11,215*3,060*2,860 | 9.3 | 107.45 | 14.85 | 8.6 | 0.5 | 74.3 | 6 |
| WSZ-7 | 170 | 12,631*3,060*2,860 | 10.15 | 120.69 | 14.85 | 8.6 | 0.44 | 74.3 | 6 |
| WSZ-8 | 200 | 15,469*3,060*2,860 | 15.72 | 146.29 | 15.55 | 9.3 | 0.41 | 82.37 | 6 |
| WSZ-10 | 250 | 18,884*3,060*2,860 (in two groups) |
17.71 | 182.98 | 21.8 | 12.8 | 0.43 | 108.29 | 10 |
| WSZ-12.5 | 300 | 22,426*3,060*2,860 (in two groups) |
20.25 | 216.51 | 21.8 | 12.8 | 0.36 | 108.29 | 10 |
| WSZ-15 | 360 | 26,682*3,060*2,860 (in two groups) |
25.38 | 258.89 | 30.9 | 17.7 | 0.41 | 146.59 | 10 |
| WSZ-17 | 400 | 30,450*3,060*2,860 (in three groups) |
28.13 | 294.61 | 30.9 | 17.7 | 0.37 | 146.59 | 10 |
| WSZ-20 | 500 | 36,834*3,060*2,860 (in three groups) |
33.74 | 356.09 | 30.9 | 17.7 | 0.29 | 146.59 | 10 |
| Note:Custom non-standard sizes are available.The dimensions in the table are for reference only;actual dimensions will prevail. | |||||||||

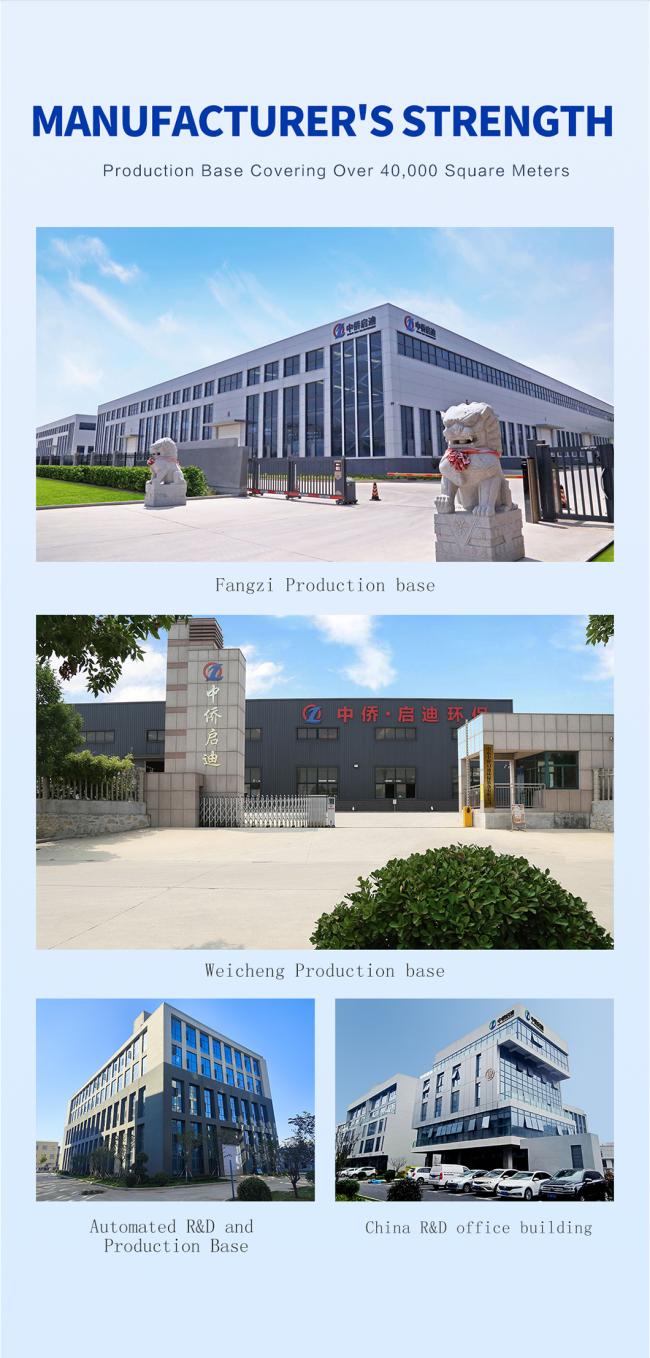

Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd., founded in 2013, is a professional integrated wastewater treatment equipment manufacturer. With two large production bases covering over 40,000 square meters and an annual production capacity of more than 800 integrated units, the company is a trustworthy high-endcontract manufacturer.
The integrated equipment OEM sector is equipped with advanced machinery, including large bending machines, shearing machines, plate rolling machines, plipe rolling machines, laser cutting machines, laser pipe cutting machines, automatic welding machines, and more. Additionally. the company boasts a team of high-level technical experts, including process designers, industrial designers, mechanical engineers, and environmental engineers.
In the new material (PPH) OEM sector, the company operates advanced manufacturing lines, such as an integrated PPH tank production line, MBBR production line, and PP welding rod production line. It also possesses cutting-edge plastic product processing equipment, including large-scale automatic horizontal and vertical welding machines, CNC engraving machines bending machines, butt welding machines, and cutting machines. By leveraging the unique characteristics of new materialtanks and improving the production process, along with the use of self-produced MBBR filers, the company has significantly reduced costs and enhanced the competitiveness of its clients.
