Hospital Medical Box Integrated Sewage Treatment Equipment 100m³/D
Hospital Medical Waste Water Treatment, Integrated Waste Water Treatment Equipment

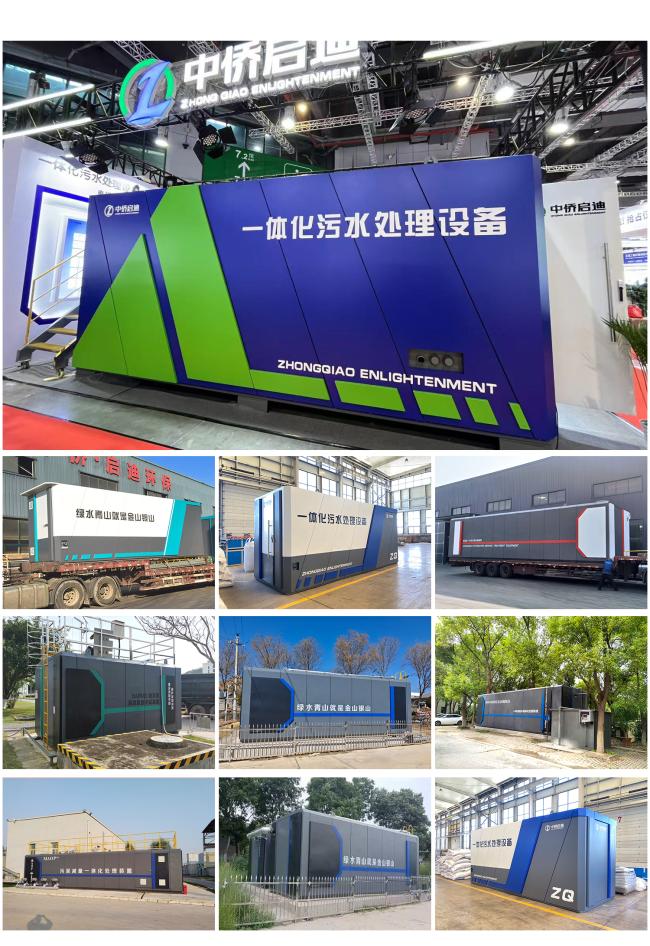

Zhong Qiao Box Integrated Sewage Treatment Equipment is a high-efficiency, energy-saving, and environmentally friendly sewage treatment equipment independently developed and produced by Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd. This equipment integrates multiple functions such as sewage treatment, sludge-water separation, and disinfection, and is widely used in the treatment of various industrial and domestic sewage.
The decorative panels are formed from cold-rolled steel sheets through CNC bending in one step. The anti-corrosion treatment uses powder electrostatic spraying, followed by melting, leveling, and curing at 200 degrees Celsius, resulting in a smooth and bright appearance.
The decorative panels are reinforced with square steel supports between the panels and the main body. They can be equipped with electric heating and insulation materials like rubber-plastic or rock wool, ensuring normal operation even in the cold regions of northern areas.
ZhongqiaoBox integrated sewage treatment equipment covers a treatment capacity of 5–5,000 tons per day, and can be flexibly adapted to different scenarios through single unit, parallel connection of multiple units, or modular expansion.
- Small scale (5–50 tons/day): Rural sewage, small hospitals, homestays, emergency sites
- Medium scale (50–500 tons/day): Residential quarters, towns, small and medium-sized factories, scenic spots
- Large scale (500–5,000 tons/day): Industrial parks, centralized treatment, large emergency projects
- Adopts expandable container / skid mounted modules, with a single unit of 10–100 tons/day.
- Multiple units in parallel can achieve flexible expansion to 20–500 tons/day.
- Project examples:
- Saudi Arabia project: 4 units in parallel = 1,200 tons/day
- Tianjin / Xinjiang projects: up to 2,000 tons/day
- Main processes: AO, AO+MBR, stably removing COD, ammonia nitrogen, total nitrogen, total phosphorus.
- Effluent standards: Level 1A / Level 1B, reclaimed water reuse, local discharge standards.
- Strong shock resistance: adapts to water quality fluctuations, low sludge yield, stable operation.
- Rural areas / small hospitals: 5–50 tons/day
- Residential quarters / towns: 50–200 tons/day
- Industrial parks / large emergency: 500–2,000 tons/day
- Ultra-large scale: 2,000–5,000 tons/day (multi-module combination)
| Model | Treatment Capacity (m³/day) |
Dimensions (L×W×H)(mm) |
Equipment Weight (t) |
Operating Weight (t) |
Total Installed Power (kw) |
Operating Power (kw) |
Operating Cost (CNY/ton) |
Operating Cost (CNY/day) |
Cable Specifications (mm²) |
|---|---|---|---|---|---|---|---|---|---|
|
WSZ-0.25
|
5
|
2,340×1,200×1,660
|
1.33
|
5.32
|
3.84
|
2.72
|
3.2
|
16.01
|
1.5
|
|
WSZ-0.5
|
10
|
2,350×1,518×2,160
|
1.72
|
9.42
|
3.84
|
2.72
|
1.6
|
16.01
|
1.5
|
|
WSZ-1
|
20
|
4,831×1,518×2,160
|
2.61
|
18.44
|
4.6
|
3.1
|
0.92
|
18.47
|
2.5
|
|
WSZ-1.25
|
30
|
4,705×2,030×2,160
|
3.09
|
23.7
|
6.1
|
3.85
|
0.78
|
23.33
|
2.5
|
|
WSZ-1.67
|
40
|
6,125×2,030×2,160
|
3.68
|
30.53
|
6.1
|
3.85
|
0.68
|
27.22
|
2.5
|
|
WSZ-2
|
50
|
6,125×2,030×2,660
|
4.25
|
37.32
|
6.1
|
3.85
|
0.54
|
27.22
|
2.5
|
|
WSZ-2.5
|
60
|
6,596×2,262×2,660
|
4.78
|
44.47
|
7.5
|
4.55
|
0.54
|
32.51
|
4
|
|
WSZ-3
|
70
|
7,659×2,262×2,660
|
5.3
|
51.38
|
7.5
|
4.55
|
0.46
|
32.51
|
4
|
|
WSZ-3.5
|
80
|
8,722×2,262×2,660
|
5.81
|
58.29
|
9.1
|
5.35
|
0.48
|
38.56
|
4
|
|
WSZ-4
|
100
|
10,850×2,262×2,660
|
6.85
|
72.14
|
9.1
|
5.35
|
0.44
|
44.06
|
4
|
|
WSZ-5
|
120
|
12,975×2,262×2,660
|
8.16
|
86.23
|
14.85
|
8.6
|
0.62
|
74.3
|
6
|
|
WSZ-6
|
150
|
11,215×3,060×2,860
|
9.3
|
107.45
|
14.85
|
8.6
|
0.5
|
74.3
|
6
|
|
WSZ-7
|
170
|
12,631×3,060×2,860
|
10.15
|
120.69
|
14.85
|
8.6
|
0.44
|
74.3
|
6
|
|
WSZ-8
|
200
|
15,469×3,060×2,860
|
15.72
|
146.29
|
15.55
|
9.3
|
0.41
|
82.37
|
6
|
|
WSZ-10
|
250
|
18,884×3,060×2,860
(in two groups) |
17.71
|
182.98
|
21.8
|
12.8
|
0.43
|
108.29
|
10
|
|
WSZ-12.5
|
300
|
22,426×3,060×2,860
(in two groups) |
20.25
|
216.51
|
21.8
|
12.8
|
0.36
|
108.29
|
10
|
|
WSZ-15
|
360
|
26,682×3,060×2,860
(in two groups) |
25.38
|
258.89
|
30.9
|
17.7
|
0.41
|
146.59
|
10
|
|
WSZ-17
|
400
|
30,450×3,060×2,860
(in three groups) |
28.13
|
294.61
|
30.9
|
17.7
|
0.37
|
146.59
|
10
|
|
WSZ-20
|
500
|
36,834×3,060×2,860
(in three groups) |
33.74
|
356.09
|
30.9
|
17.7
|
0.29
|
146.59
|
10
|

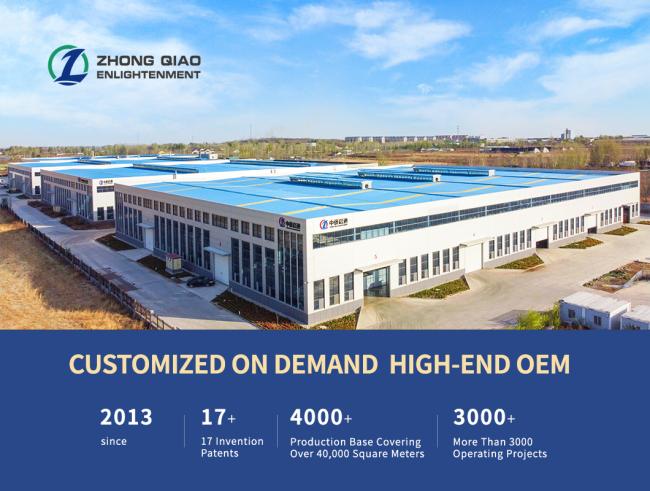

Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd., founded in 2013, is a professional DEM/ODM integrated wastewater treatment equipment manufacturer. With two large production bases covering over 40,000 square meters and an annual production capacity of more than 800 integrated units, the company is a trustworthy high-end contract manufacturer.
The integrated equipment OEM sector is equipped with advanced machinery, including large bending machines, shearing machines, plate rolling machines, plipe rolling machines, laser cutting machines, laser pipe cutting machines, automatic welding machines, and more. Additionally. the company boasts a team of high-level technical experts, including process designers, industrial designers, mechanical engineers, and environmental engineers.
In the new material (PPH) OEM sector, the company operates advanced manufacturing lines, such as an integrated PPH tank production line, MBBR production line, and PP welding rod production line. It also possesses cutting-edge plastic product processing equipment, including large-scale automatic horizontal and vertical welding machines, CNC engraving machines bending machines, butt welding machines, and cutting machines. By leveraging the unique characteristics of new material tanks and improving the production process, along with the use of self-produced MBBR filers, the company has significantly reduced costs and enhanced the competitiveness of its clients.
