Box Integrated Waste Water Prefabricated Sewage Treatment Plant 53m²
Domestic Waste Water Treatment Equipment Zhong Qiao Enlightenment
Zhong Qiao Box Integrated Sewage Treatment Equipment is a high-efficiency, energy-saving, and environmentally friendly sewage treatment equipment independently developed and produced by Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd. This equipment integrates multiple functions such as sewage treatment, sludge-water separation, and disinfection, and is widely used in the treatment of various industrial and domestic sewage.

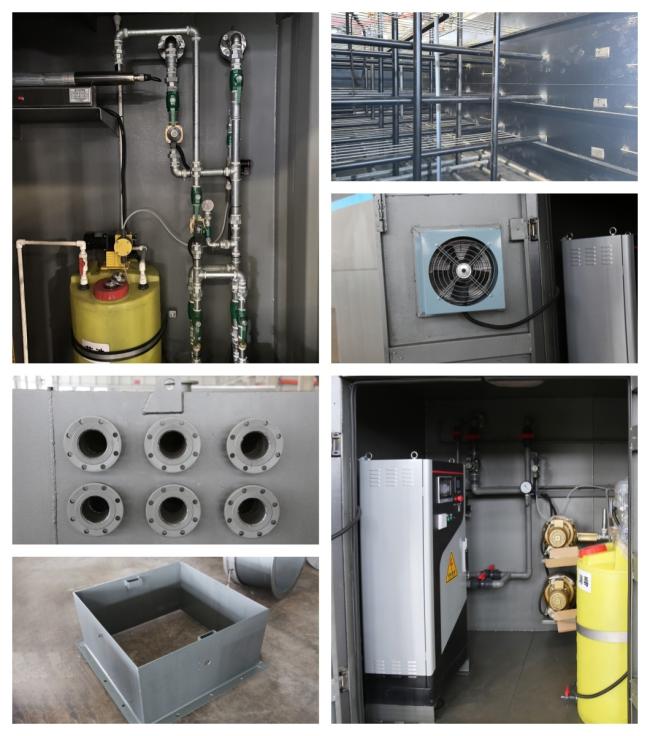

The decorative panels are formed from cold-rolled steel sheets through CNC bending in one step. The anti-corrosion treatment uses powder electrostatic spraying, followed by melting, leveling, and curing at 200 degrees Celsius, resulting in a smooth and bright appearance.
The decorative panels are reinforced with square steel supports between the panels and the main body. They can be equipped with electric heating and insulation materials like rubber-plastic or rock wool, ensuring normal operation even in the cold regions of northern areas.
ZhongqiaoBox integrated sewage treatment equipment covers a treatment capacity of 5–5,000 tons per day, and can be flexibly adapted to different scenarios through single unit, parallel connection of multiple units, or modular expansion.
- Small scale (5–50 tons/day): Rural sewage, small hospitals, homestays, emergency sites
- Medium scale (50–500 tons/day): Residential quarters, towns, small and medium-sized factories, scenic spots
- Large scale (500–5,000 tons/day): Industrial parks, centralized treatment, large emergency projects
- Adopts expandable container / skid mounted modules, with a single unit of 10–100 tons/day.
- Multiple units in parallel can achieve flexible expansion to 20–500 tons/day.

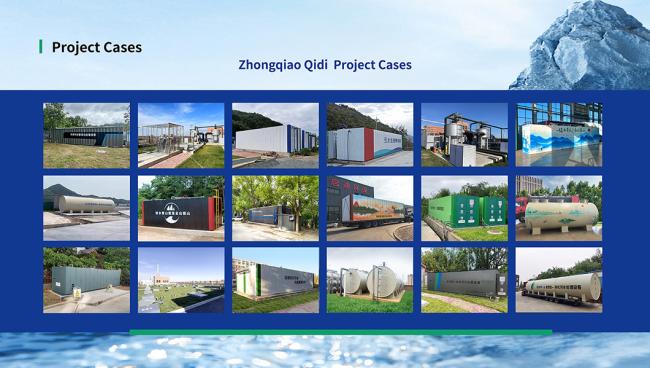

- Project examples:
- Saudi Arabia project: 4 units in parallel = 1,200 tons/day
- Tianjin / Xinjiang projects: up to 2,000 tons/day
- Main processes: AO, AO+MBR, stably removing COD, ammonia nitrogen, total nitrogen, total phosphorus.
- Effluent standards: Level 1A / Level 1B, reclaimed water reuse, local discharge standards.
- Strong shock resistance: adapts to water quality fluctuations, low sludge yield, stable operation.
- Rural areas / small hospitals: 5–50 tons/day
- Residential quarters / towns: 50–200 tons/day
- Industrial parks / large emergency: 500–2,000 tons/day
- Ultra-large scale: 2,000–5,000 tons/day (multi-module combination)
| Model | Treatment Capacity (m³/day) |
Dimensions (L×W×H)(mm) |
Equipment Weight (t) |
Operating Weight (t) |
Total Installed Power (kw) |
Operating Power (kw) |
Operating Cost (CNY/ton) |
Operating Cost (CNY/day) |
Cable Specifications (mm²) |
|---|---|---|---|---|---|---|---|---|---|
|
WSZ-0.25
|
5
|
2,340×1,200×1,660
|
1.33
|
5.32
|
3.84
|
2.72
|
3.2
|
16.01
|
1.5
|
|
WSZ-0.5
|
10
|
2,350×1,518×2,160
|
1.72
|
9.42
|
3.84
|
2.72
|
1.6
|
16.01
|
1.5
|
|
WSZ-1
|
20
|
4,831×1,518×2,160
|
2.61
|
18.44
|
4.6
|
3.1
|
0.92
|
18.47
|
2.5
|
|
WSZ-1.25
|
30
|
4,705×2,030×2,160
|
3.09
|
23.7
|
6.1
|
3.85
|
0.78
|
23.33
|
2.5
|
|
WSZ-1.67
|
40
|
6,125×2,030×2,160
|
3.68
|
30.53
|
6.1
|
3.85
|
0.68
|
27.22
|
2.5
|
|
WSZ-2
|
50
|
6,125×2,030×2,660
|
4.25
|
37.32
|
6.1
|
3.85
|
0.54
|
27.22
|
2.5
|
|
WSZ-2.5
|
60
|
6,596×2,262×2,660
|
4.78
|
44.47
|
7.5
|
4.55
|
0.54
|
32.51
|
4
|
|
WSZ-3
|
70
|
7,659×2,262×2,660
|
5.3
|
51.38
|
7.5
|
4.55
|
0.46
|
32.51
|
4
|
|
WSZ-3.5
|
80
|
8,722×2,262×2,660
|
5.81
|
58.29
|
9.1
|
5.35
|
0.48
|
38.56
|
4
|
|
WSZ-4
|
100
|
10,850×2,262×2,660
|
6.85
|
72.14
|
9.1
|
5.35
|
0.44
|
44.06
|
4
|
|
WSZ-5
|
120
|
12,975×2,262×2,660
|
8.16
|
86.23
|
14.85
|
8.6
|
0.62
|
74.3
|
6
|
|
WSZ-6
|
150
|
11,215×3,060×2,860
|
9.3
|
107.45
|
14.85
|
8.6
|
0.5
|
74.3
|
6
|
|
WSZ-7
|
170
|
12,631×3,060×2,860
|
10.15
|
120.69
|
14.85
|
8.6
|
0.44
|
74.3
|
6
|
|
WSZ-8
|
200
|
15,469×3,060×2,860
|
15.72
|
146.29
|
15.55
|
9.3
|
0.41
|
82.37
|
6
|
|
WSZ-10
|
250
|
18,884×3,060×2,860
(in two groups) |
17.71
|
182.98
|
21.8
|
12.8
|
0.43
|
108.29
|
10
|
|
WSZ-12.5
|
300
|
22,426×3,060×2,860
(in two groups) |
20.25
|
216.51
|
21.8
|
12.8
|
0.36
|
108.29
|
10
|
|
WSZ-15
|
360
|
26,682×3,060×2,860
(in two groups) |
25.38
|
258.89
|
30.9
|
17.7
|
0.41
|
146.59
|
10
|
|
WSZ-17
|
400
|
30,450×3,060×2,860
(in three groups) |
28.13
|
294.61
|
30.9
|
17.7
|
0.37
|
146.59
|
10
|
|
WSZ-20
|
500
|
36,834×3,060×2,860
(in three groups) |
33.74
|
356.09
|
30.9
|
17.7
|
0.29
|
146.59
|
10
|
