Customization Waste Water Integrated Sewage Treatment Equipment in Food Production Plant
The containerized integrated sewage treatment equipment, also known as corrugated board integrated sewage treatmentequipment, features an exterior made entirely of corrugated steel plates.This design offers an attractive appearance and highstrength.
ZhongQiao Enlightenment containerized integrated sewage treatment equipment has evolved to its third generation afteryears of development. The four coner columns of the box have also been redesigned from the traditional container constructionmethod, adopting an integrated molding approach. The internal structure of the equipment has been fully integrated with thecorrugated board structure based on years of production experience. This includes components such as the internal sludgehopper, distribution system, and weir structures.

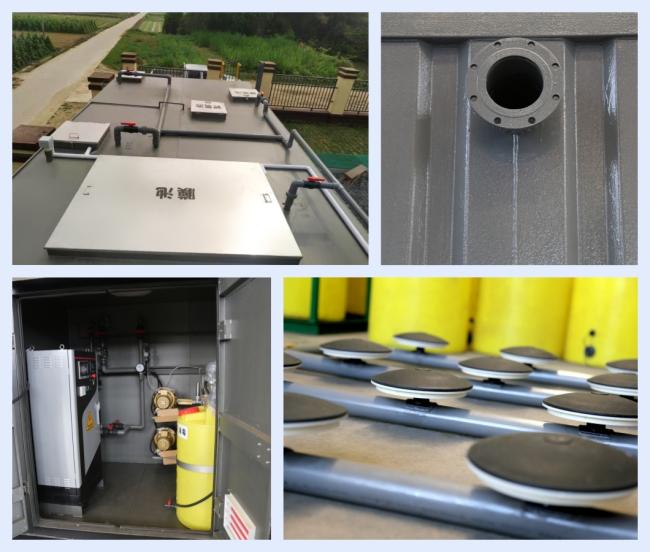

- The appearance relies on corrugated plates, offering both aesthetic appeal and high strength.
- Dimensions are not limited to standard container sizes; customization is available with flexible options.
- Treatment units can bedesigned as single or multiple sets, tailored to site conditions.
- Unrestricted by process constraints, various technologies such as A/O,AA/O,AO+MBR, MBBR, ete., can be used.
- Can be installed either underground or above ground.
- Options are available for including equipmentrooms or adjustment tanks.
| Name | Inlet Water Main Indicators | Grade A Effluent Indicator | Grade B effluent indicator |
| Chemical Oxygen Demand (mg/L) | ≤500 | ≤50 | ≤60 |
| Biochemical Oxygen Demand (mg/L) | ≤350 | ≤10 | ≤20 |
| Ammonia nitrogen (mg/L) | ≤45 | ≤5(8) | ≤15(8) |
| pH | 6.0-9.0 | 6.0-9.0 | 6.0-9.0 |
| Suspended solids (mg/L) | ≤270 | ≤10 | ≤20 |
| Total phosphorus (mg/L) | ≤5 | ≤0.5 | ≤1 |

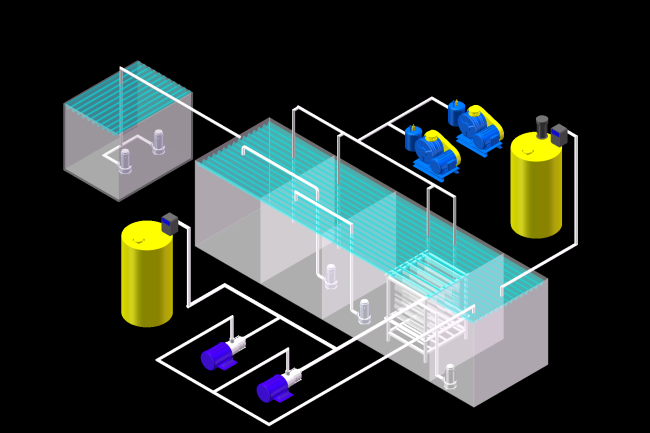

Comprehensive mechanical and dynamic modeling, fully independent design and construction, Zhongqiao Enlightenment leverages years of experience in integrated sewage treatment equipment research and development, production, and sewage plant design processes to optimize our process structure through 3D modeling, mechanical analysis, and fluid dynamics analysis of customer projects.
Creo mechanical simulation software solves complex mechanical pressure bearing practical scenarios and provides scientific and refined analysis of equipment structure. It optimizes design based on user water quality, ensuring high reliability and stability of the equipment.
| model | Water treatment capacity (m³/d) | outline dimension | weight of equipment |
running weight |
installed power | Power consumption |
running expense | running expense | Cable specifications | floor space |
| L x W x H (mm) | (t) | (t) | (kW) | (kW) | (Yuan/ton of water) | (CNY/day) | (mm²) | (m²) | ||
| MBR-0.25 | 5 | 2720×1090×2160 | 1.18 | 7.58 | 5.365 | 3.245 | 4.08 | 20.41 | 2.5 | 19.38 |
| MBR-0.5 | 10 | 3440×1090×2160 | 1.35 | 9.45 | 5.365 | 3.245 | 2.04 | 20.41 | 2.5 | 20.75 |
| MBR-1 | 20 | 3890×1610×2160 | 1.83 | 15.36 | 7.165 | 4.145 | 1.14 | 22.87 | 4 | 24.26 |
| MBR-1.25 | 30 | 5340×1610×2160 | 2.23 | 20.80 | 7.27 | 4.25 | 0.92 | 27.73 | 4 | 28.10 |
| MBR-1.67 | 40 | 4910×2040×2160 | 2.45 | 24.09 | 7.87 | 4.55 | 0.87 | 34.78 | 4 | 31.02 |
| MBR-2 | 50 | 6360×2040×2160 | 3.55 | 31.57 | 7.87 | 4.55 | 0.70 | 34.78 | 4 | 39.97 |
| MBR-2.5 | 60 | 6360×2040×2660 | 4.05 | 38.56 | 7.87 | 4.55 | 0.67 | 40.07 | 4 | 39.97 |
| MBR-3 | 70 | 7090×2040×2660 | 4.36 | 42.83 | 8.63 | 5.31 | 0.57 | 40.07 | 4 | 42.84 |
| MBR-3.5 | 80 | 6890×2540×2660 | 4.91 | 51.46 | 10.23 | 6.11 | 0.58 | 46.12 | 4 | 48.63 |
| MBR-4 | 100 | 8340×2540×2660 | 5.60 | 61.95 | 11.73 | 6.86 | 0.60 | 59.62 | 4 | 53.93 |
| MBR-5 | 120 | 9060×2540×2860 | 6.21 | 72.03 | 13.73 | 7.86 | 0.76 | 91.58 | 6 | 58.51 |
| MBR-6 | 150 | 11230×2540×2860 | 7.62 | 89.20 | 18.82 | 11.07 | 0.61 | 91.58 | 6 | 67.40 |
| MBR-7 | 170 | 10510×2930×2860 | 8.04 | 96.11 | 18.82 | 11.07 | 0.54 | 91.58 | 6 | 70.29 |
| MBR-8 | 200 | 12680×2930×2860 | 9.19 | 115.45 | 21.02 | 12.57 | 0.51 | 101.26 | 10 | 80.65 |
| MBR-10 | 250 | 15580×2930×2860 | 11.16 | 141.72 | 26.07 | 15.27 | 0.51 | 127.18 | 10 | 101.15 |
| MBR-12.5 | 300 | 9780×2930×2860 (in two groups) |
14.49 | 178.40 | 26.25 | 15.45 | 0.45 | 133.63 | 10 | 117.81 |
| MBR-15 | 360 | 11230×2930×2860 (in two groups) |
16.02 | 204.23 | 34.65 | 20.35 | 0.48 | 171.94 | 16 | 131.31 |
| MBR-17 | 400 | 12680×2930×2860 (in two groups) |
17.56 | 230.07 | 35.85 | 21.15 | 0.45 | 179.31 | 16 | 144.30 |
| MBR-20 | 500 | 15580×2930×2860 (in two groups) |
21.45 | 282.56 | 39.45 | 22.95 | 0.36 | 179.31 | 16 | 171.30 |
