Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment

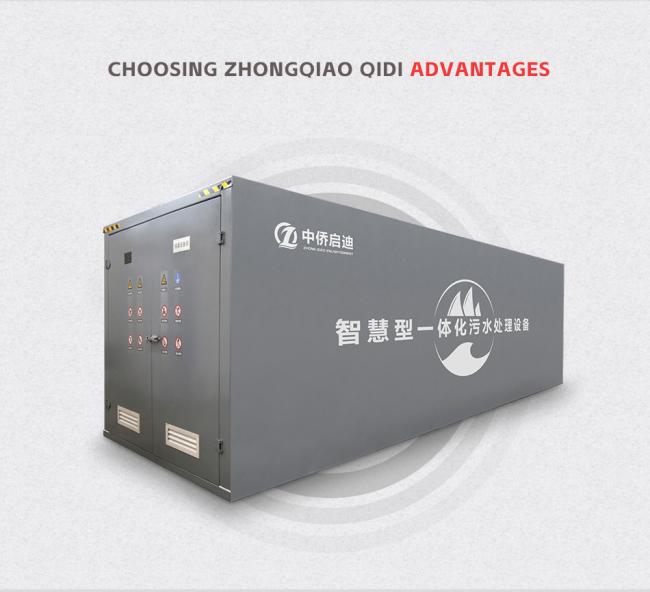

Our Carbon Steel Flat Plate Integrated Sewage Treatment Equipment is a reliable and cost-efficient solution for industrial wastewater treatment. Built with high-strength Q235B carbon steel and multi-layer anti-corrosion protection, the equipment features excellent durability, stability, and long service life even in harsh working environments.
The compact all-in-one design combines pretreatment, biological reaction, sedimentation, and disinfection in a single unit, reducing land occupation and simplifying on-site installation. Supported by advanced AO/A²O/MBR processes, it achieves high removal rates of COD, BOD, ammonia nitrogen and total phosphorus, ensuring stable effluent quality that meets strict discharge standards.

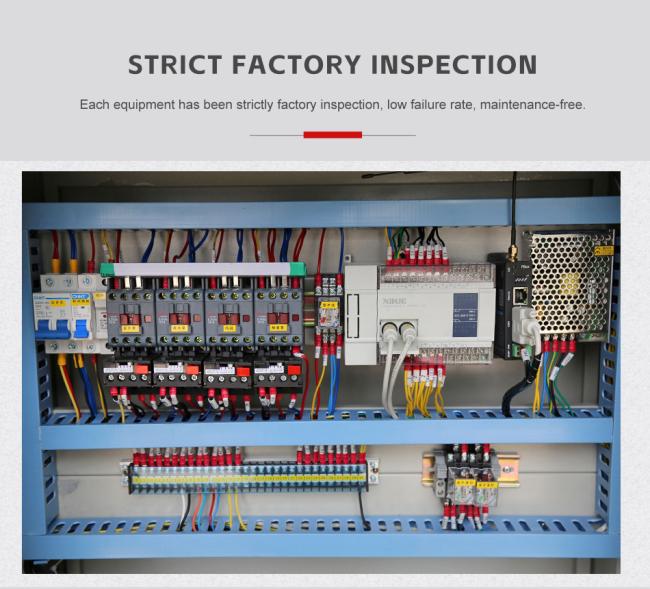

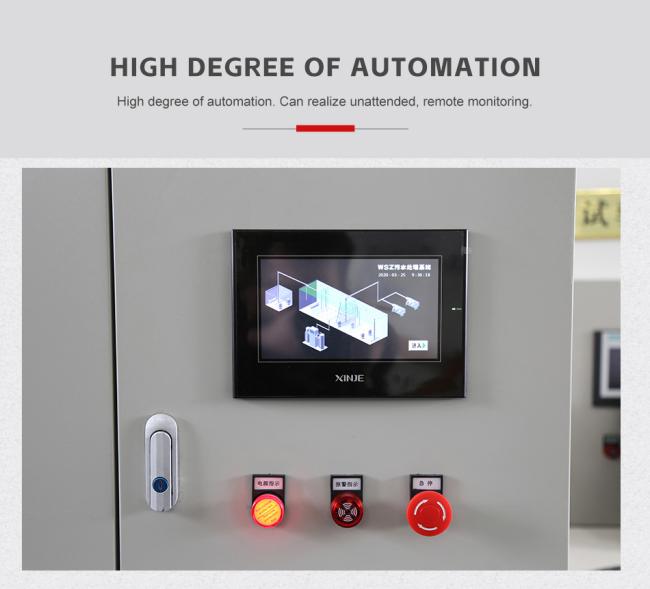

Equipped with an intelligent PLC control system, the equipment operates automatically with low energy consumption and minimal maintenance. It is highly customizable to fit various industrial scenarios and different treatment capacities. With strong structure, stable performance, easy operation and low operating cost, this equipment is an ideal choice for decentralized industrial wastewater treatment projects worldwide.
| model | Water treatment capacity (m³/d) | outline dimension | weight of equipment |
running weight |
installed power | Power consumption |
running expense | running expense | Cable specifications | floor space |
|---|---|---|---|---|---|---|---|---|---|---|
| L x W x H (mm) | (t) | (t) | (kW) | (kW) | (Yuan/ton of water) | (CNY/day) | (mm²) | (m²) | ||
| WSZ-0.25 | 5 | 2500×1000×1500 | 0.97 | 4.72 | 4.08 | 2.41 | 3.20 | 16.01 | 1.5 | 19 |
| WSZ-0.5 | 10 | 2500×1500×2000 | 1.65 | 9.15 | 4.08 | 2.41 | 1.60 | 16.01 | 1.5 | 21 |
| WSZ-1 | 20 | 5000×1500×2000 | 2.50 | 17.50 | 4.08 | 2.41 | 0.92 | 18.47 | 2.5 | 26 |
| WSZ-1.25 | 30 | 5000×2000×2000 | 2.90 | 21.70 | 4.08 | 2.41 | 0.78 | 23.33 | 2.5 | 26 |
| WSZ-1.67 | 40 | 6500×2000×2000 | 4.36 | 30.36 | 4.08 | 2.41 | 0.68 | 27.22 | 2.5 | 31 |
| WSZ-2 | 50 | 6500×2000×2500 | 5.07 | 37.57 | 5.88 | 3.31 | 0.54 | 27.22 | 2.5 | 34 |
| WSZ-2.5 | 60 | 7500×2000×2500 | 5.58 | 43.27 | 5.88 | 3.31 | 0.54 | 32.51 | 4 | 36 |
| WSZ-3 | 70 | 7000×2500×2500 | 6.31 | 51.31 | 6.26 | 3.69 | 0.46 | 32.51 | 4 | 41 |
| WSZ-3.5 | 80 | 8000×2500×2500 | 6.88 | 57.50 | 6.26 | 3.69 | 0.48 | 38.56 | 4 | 45 |
| WSZ-4 | 100 | 10000×2500×2500 | 8.30 | 72.98 | 6.26 | 3.69 | 0.44 | 44.06 | 4 | 52 |
| WSZ-5 | 120 | 11500×2500×2700 | 9.65 | 85.59 | 7.86 | 4.49 | 0.62 | 74.30 | 6 | 60 |
| WSZ-6 | 150 | 12000×3000×2700 | 11.22 | 108.42 | 9.35 | 5.60 | 0.50 | 74.30 | 6 | 72 |
| WSZ-7 | 170 | 16000×2500×2700 (in two groups) |
12.26 | 121.61 | 9.35 | 5.60 | 0.44 | 74.30 | 6 | 77 |
| WSZ-8 | 200 | 20000×2500×2500 (in two groups) |
15.53 | 142.09 | 9.75 | 6.00 | 0.41 | 82.37 | 6 | 91 |
| WSZ-10 | 250 | 24000×2500×2700 (in two groups) |
17.30 | 175.25 | 15.80 | 9.20 | 0.43 | 108.29 | 10 | 110 |
| WSZ-12.5 | 300 | 24000×3000×2700 (in two groups) |
20.05 | 210.40 | 15.80 | 9.20 | 0.36 | 108.29 | 10 | 127 |
| WSZ-15 | 360 | 34500×2500×2700 (in three groups) |
25.11 | 251.91 | 16.50 | 9.90 | 0.41 | 146.59 | 10 | 145 |
| WSZ-17 | 400 | 37500×2500×2700 (in three groups) |
27.24 | 278.34 | 21.70 | 12.70 | 0.37 | 146.59 | 10 | 159 |
| WSZ-20 | 500 | 39000×3000×2700 (in three groups) |
33.71 | 349.61 | 21.70 | 12.70 | 0.29 | 146.59 | 10 | 193 |
