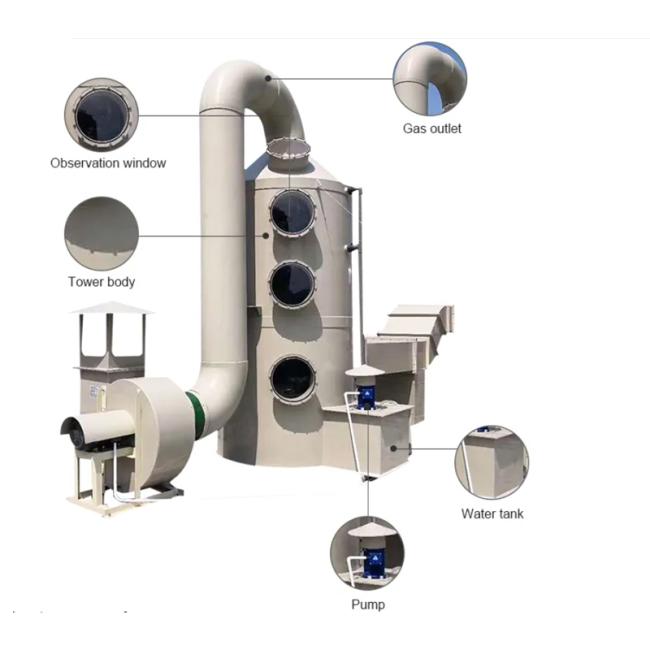

PP spray tower is a kind of waste gas treatment equipment made of polypropylene (PP) material. The utility model is mainly composed of a tower body, a packing layer, a spray system, an air inlet, an air outlet, etc. . The tower body is made of PP material, which has good corrosion resistance and chemical stability, and the packing layer can increase the contact area between waste gas and spray liquid and improve the efficiency of waste gas treatment The spray system sprays the spray liquid evenly on the packing layer through the nozzle to make the exhaust gas fully contact with the spray liquid.

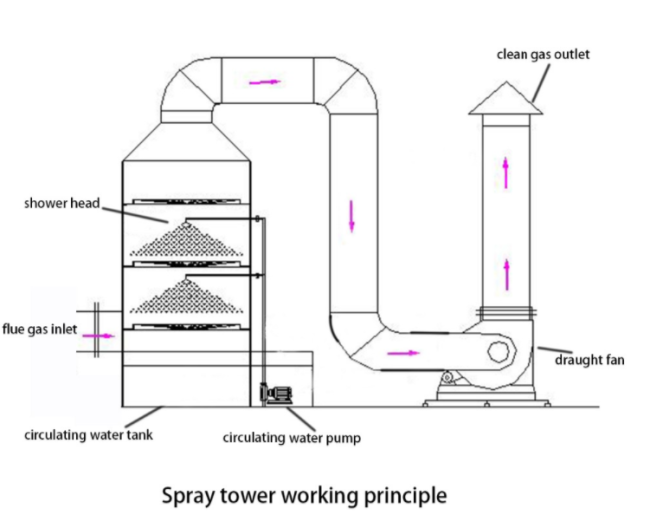

Working principle
The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.
Product parameters
| Model(mm) | Air volume(m3/h) | Pump out/in pipe diameter(mm) | Power(kw) | weight(kg) |
| φ800*3500 | 2000-3000 | 32/25 | 0.75 | 200 |
| φ1000*4000 | 4000-5000 | 40/32 | 1.5 | 450 |
| φ1200*4000 | 6000-8000 | 40/32 | 1.5 | 600 |
| φ1500*4200 | 10000-15000 | 50/40 | 2.2 | 800 |
| φ2000*5000 | 20000-25000 | 65/50 | 4 | 950 |
| φ2500*6000 | 30000 | 80/65 | 5 | 1200 |
Free packing in wooden cases. If other special requirements are required, a portion of the cost shall be increased.
Jiangsu Kingdom Environmental Technology Co, Ltd is located in Yixing China Enrironmental Science and Technology industial Park, focus on environmental technology research ana development water irealment protessional equipment development and Supporting, emvironmental protection facilities housekeeping services. We are a collection of technalogy and product development, design and consulting, sewage plant operations as one of the custody of professional, comprehensive envlronmental management services. The service scope covers urban sewage treatment, industrial wastewater treatment, village sewage treatment and soil and water environmental restoration, we also have a professional team of environmental science and Engineering, Environmental monitoring, chemical engineering,mechanical engineering, Internet of things automation, financial management,etc.
In addition ,We also have the ability to produce high-quality equipment of the unit production workshop. Excellent machining equipment, perfect detection means, strict process control measures and systematic quality assurance system guarantee the production of high-quality equipment.
Our certificate
Q1. Can you suggest me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
