Soft Seal Double Flanged Butterfly Valve Compressed Air Lug Wafer Butterfly Valve

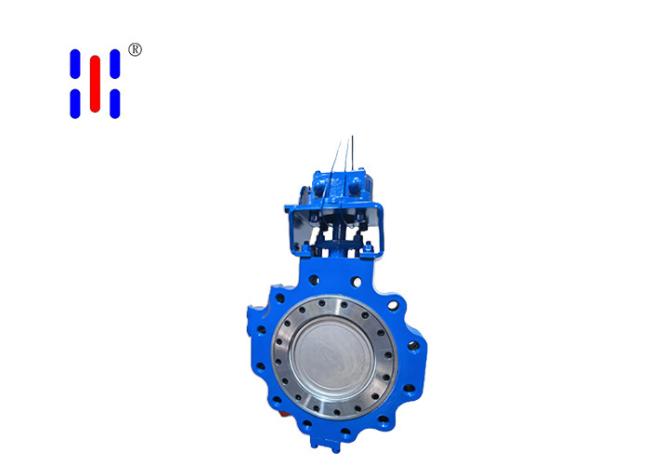

300LB Lug WCB/304 Soft-Seal Butterfly Valve for Compressed Air
Product Features
The valve body is made of WCB cast carbon steel, offering high tensile strength and excellent rigidity. It features superior machinability and weldability, making it suitable for valve seat surfacing and the machining of mounting interfaces for various actuators. The internal components are made of 304 stainless steel, containing 18%–20% chromium and 8%–10.5% nickel, providing excellent corrosion resistance in a wide range of media, including oxidizing acids, alkalis, salts, atmospheric conditions, and water.
Product Advantages
●The lug-type connection transfers bolt loads solely through the lugs, significantly reducing the overall valve size and weight. This facilitates transportation, installation, and pipeline layout, making it particularly suitable for confined spaces such as utility tunnels. The soft sealing material provides elastic compensation for temperature fluctuations and minor installation deviations, further enhancing sealing reliability and effectively reducing opening and closing noise. The double-eccentric design reduces the opening and closing torque by approximately 50% compared to center-symmetric valves, making manual operation effortless. It also allows for the selection of smaller-sized actuators, thereby reducing system costs.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
