Triple Offset Cast Steel Butterfly Valve ISO ASME Stainless Steel Lug Butterfly Valve
Titanium Gr2 Self-Sealing Lug Triple Offset Butterfly Valve PN10 Seawater
Product Features
Solves the problem of short valve service life in low-pressure, highly oxidizing, and corrosive environments! TA2 titanium offers corrosion resistance far superior to any type of stainless steel and ensures stable operation at PN10 low pressure. The all-metal hard seal is wear-resistant and erosion-resistant, while the triple-offset design enables effortless, friction-free opening and closing, significantly reducing the frequency of shutdowns for maintenance and substantially lowering overall operating and maintenance costs.
Product Advantages
● The valve body, flow-through components such as the disc are made entirely of industrial-grade pure titanium (TA2). Leveraging the dense passive film that titanium naturally forms in oxidative environments, it creates a virtually impenetrable corrosion barrier against wet chlorine gas, brine, seawater, dilute nitric acid, acetic acid, and chlorine-containing bleaching media, completely eliminating chloride-induced pitting corrosion, crevice corrosion, and stress corrosion cracking.
● Based on the principle of three-dimensional eccentric geometry, the automatic wedging effect ensures that higher medium pressure results in greater sealing pressure, truly enabling maintenance-free, long-term operation under low-pressure, highly oxidative corrosion conditions.
● Each lug features a threaded hole, allowing bolts to be directly tightened to the valve body; even after the downstream pipeline is removed, the valve remains locked against the upstream medium. Each lug features a threaded hole, allowing bolts to be directly tightened to the valve body; even after the downstream pipeline is removed, the valve remains locked against the upstream medium.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |

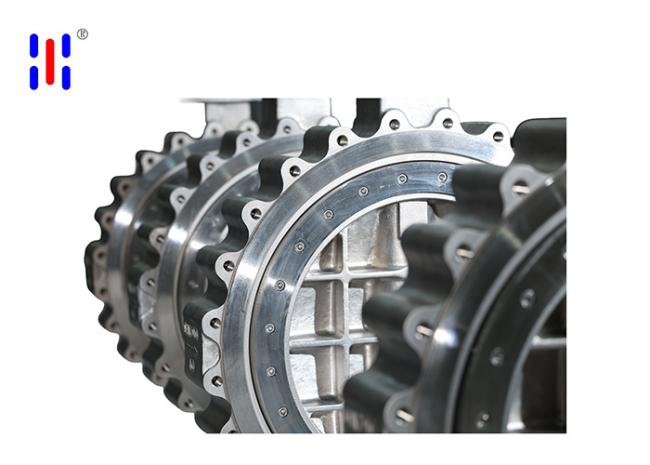

Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
