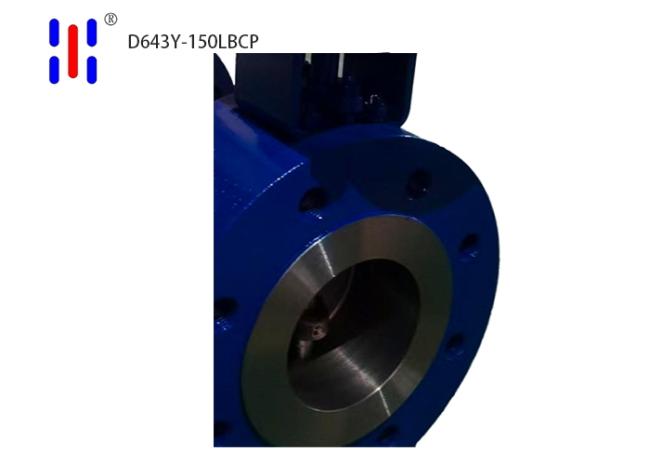

Carbon Steel Flanged 150LB Pneumatic Triple Offset Butterfly Valve 304 Disc
Carbon Steel Flanged 150LB Pneumatic Triple Offset Butterfly Valve 304 Disc
Product Features
This valve harnesses pneumatic power to enable rapid, automated shut-off in harsh operating conditions. It features a gradient combination of a robust WCB carbon steel body and 304 stainless steel sealing surfaces, with a Class 150LB low-pressure rating. By integrating pneumatic actuation, multi-layer hard seals, and a triple-eccentric design, it achieves millisecond-level shut-off, zero leakage, and long service life through intelligent control.
Product Advantages
● The double-flange gasket sealing structure ensures that fastening bolts do not penetrate the valve body. Precise installation alignment effectively disperses pipeline thrust and mechanical vibrations; during online maintenance, the valve body sealing surfaces remain undamaged, enabling quick and efficient servicing.
● The valve employs a 304 stainless steel and flexible graphite composite sealing pair, combining the rigid support of metal with the micro-compensating elasticity of graphite. The valve is strictly designed to meet the ANSI Class 150LB pressure rating.
● The rigid housing fully absorbs water hammer impacts and thermal cycling, ensuring structural integrity without deformation during high-frequency pneumatic operation.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
