Acidic Service High Pressure Butterfly Valve ASME Triple Flanged Butterfly Valves

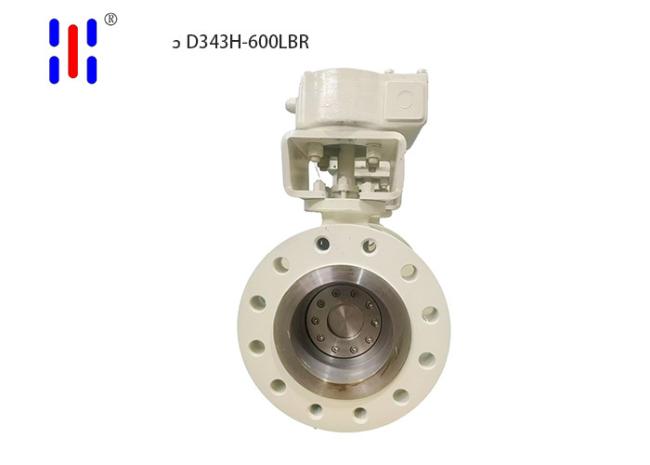

For acidic Servic Flanged 600LB 316 SS Triple Offset Butterfly Valve
Product Features
In high-pressure, chlorine-containing environments: valve corrosion and leakage, and the inability to operate during power outages. The 316 stainless steel offers comprehensive chlorine resistance, while the Class 600LB high-pressure rating ensures safety and reliability. The all-metal hard seal withstands high-temperature aging, and the valve can be shut off immediately without power, providing absolute safety assurance for environments without electricity, such as offshore platforms and remote industrial sites.
Product Advantages
● All flow-passing components, including the valve body and disc, are constructed from 316 austenitic stainless steel. The addition of molybdenum significantly enhances resistance to chloride pitting and acid-alkali corrosion, providing a durable corrosion-resistant barrier in seawater, acidic oil and gas, chemical solvents, and high-salt, high-pressure media.
● The 316 metal sealing surface is combined with a multi-layer composite of high-temperature-resistant flexible graphite. Under high-pressure cycling, there is no cold flow or thermal relaxation, ensuring bidirectional zero leakage from zero pressure to full rated pressure differential, thereby eliminating the persistent issues of internal leakage and elastic aging associated with soft seals.
● Equipped with a worm gear gearbox that significantly amplifies handwheel torque, allowing a single operator to open and close 600-lb high-pressure, large-bore valves with minimal effort.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
