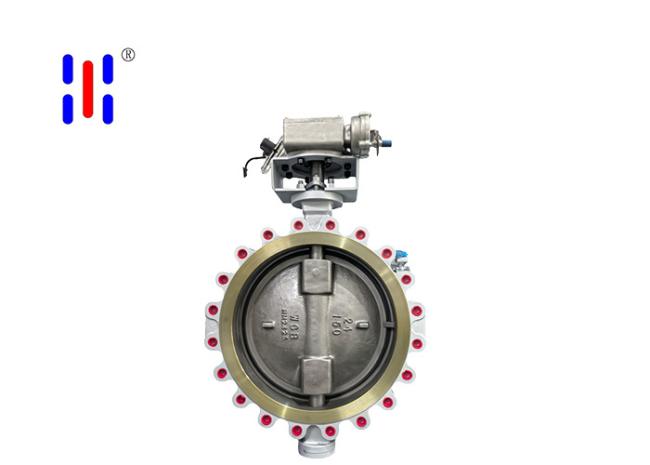

24In Triple Offset Metal Seated Butterfly Valve Lug 150LB For Power Plant Triple Offset
Triple Offset Butterfly Valve 24 Inch Lug 150LB Carbon Steel for Power Plant
Product Features
Specifically designed for large-diameter pipelines carrying non-corrosive water, steam, oil, and process gases. The WCB carbon steel body is forged as a single, robust unit; the 24-inch extra-large diameter enables massive throughput, and the 150-lb pressure rating ensures stable and reliable performance. Leveraging the exceptional strength of carbon steel and independent sealing technology via lug-type dead-end seals, this valve serves dual functions. The manual worm gearbox provides long-lasting, leak-free shutoff without the need for power.
Product Advantages
● Equipped with a worm gearbox that significantly amplifies handwheel torque, allowing a single person to open and close the 24-inch large-diameter valve with minimal effort. The self-locking characteristic of the worm gear allows the disc to remain precisely at any opening position without the need for external brakes.
● Each lug is secured directly to the pipeline with short bolts; the bolts do not penetrate the valve body, resulting in a weight significantly lighter than double-flanged valves for 24-inch large-diameter applications. Installation and hoisting are convenient, and pipeline support loads are greatly reduced; it can serve as an independent shut-off valve at the end of a pipeline, eliminating the need for additional blind flange assemblies.
● Features metal-to-metal sealing surfaces combined with high-temperature-resistant, flexible, multi-layer graphite composites, offering both the rigid support of metal and the micro-compensating elasticity of graphite.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
