Manufacturer's Best-Selling Small-Scale Laundry Soap Making Machines, Washing Soap Production Lines, and Automatic Soap Cutting Machines
Manufacturer's Best-Selling Small-Scale Laundry Soap Making Machines, Washing Soap Production Lines, and Automatic Soap Cutting Machines
Key attributes
| Machine Type | Soap Machine | Automatic Grade | Fully Automatic |
| Voltage | 380 V,220v | core components | PLC,Motor,Gearbox,Pump |
| Warranty | 1Year | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Easy To Operate |
| brand name | LOVO | model number | LV800 |
| place of origin | Henan,China | weight (kg) | 1000 |
| Condition | New | Showroom Location | None |
| Marketing Type | Hot Product 2024 | Warranty of core components | 1Year |
| Applicable Industries | Manufacturing Plant | Product Type | Soap |
| Capacity | 100-3000kg/h |

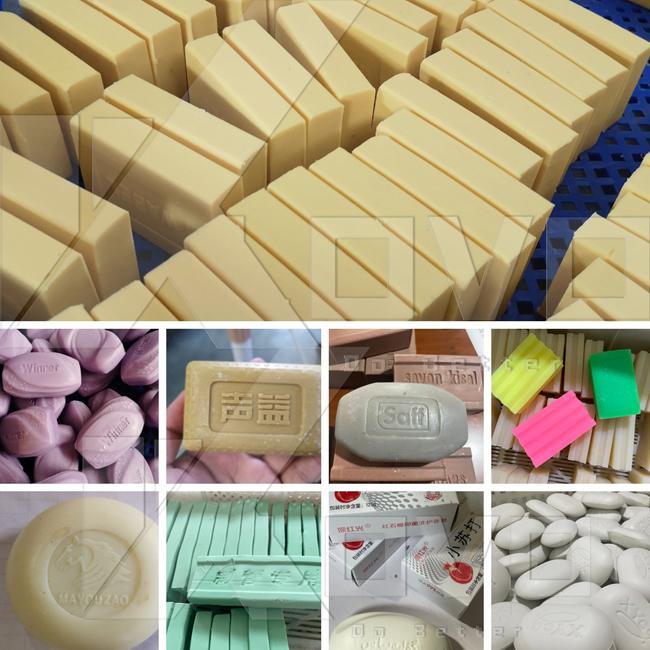

We could offer 100kg/h--2000kg/h capacity toilet and laundry bar soap production equipment line making machines .
The laundry soap production line Including :mixing,Three-Roller Mill,Double-Screw Double-Layer Vacuum Plodder,Refrigerator for soap making vacuum strip cutting.soap cutting machine.
*Mix all materials by mixing agitator, grind soap noodles by three-roller mill, make soap materials into soap bar by vacuum plodder, and cut soaps by stamping machine.
*Distribution boxes are used to control all the motors of machines, and conveyors are used to transport soap materials.
*Water pump is used to make the water to cool down the vacuum plodder, and vacuum pump is used to vacuumize the soap materials.
* The parts of mixing agitator and vacuum plodder that touch the soap materials can be made of stainless steel 304.
Packaging and delivery
| Selling Units | Single item | Package size per batch | 1000X5000X1000 cm |
| Gross weight per batch | 1000.000 kg |
Process of soap production line

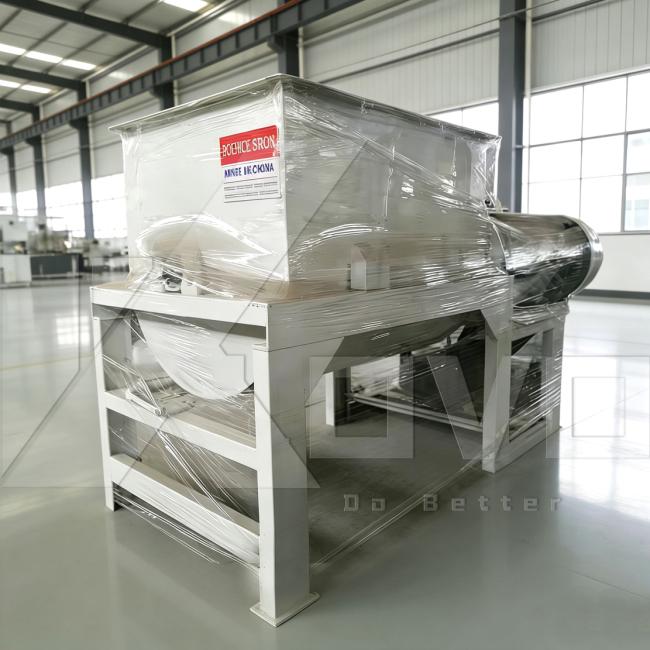

Mixer
The machine is equipped with a motor and gearbox to fully stir the soap flakes with various liquid and solid additives. The stirring effect is full and uniform, and the color paste and additives are completely dissolved into the soap base to meet the different formula requirements of customers.

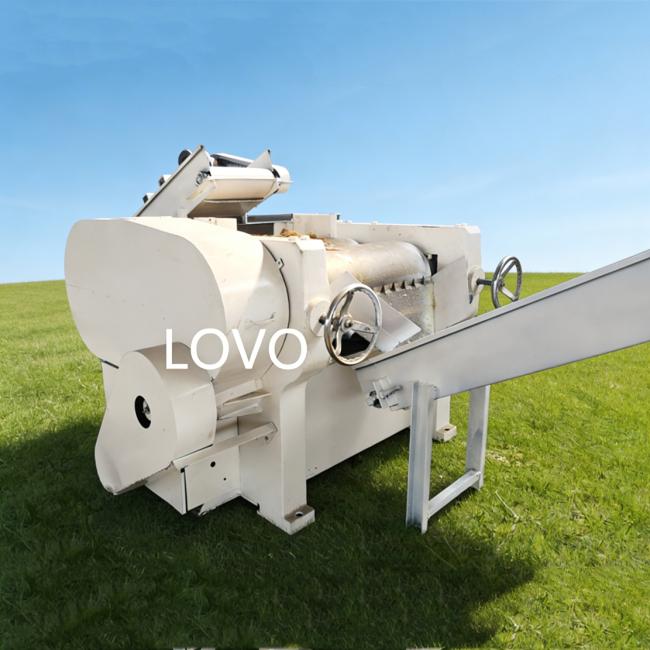

Three-roller Mill
The three rollers are arranged horizontally and vary in speed. The soap particles squeeze and shear each other on the surface of the roller, so as to achieve the grinding effect.

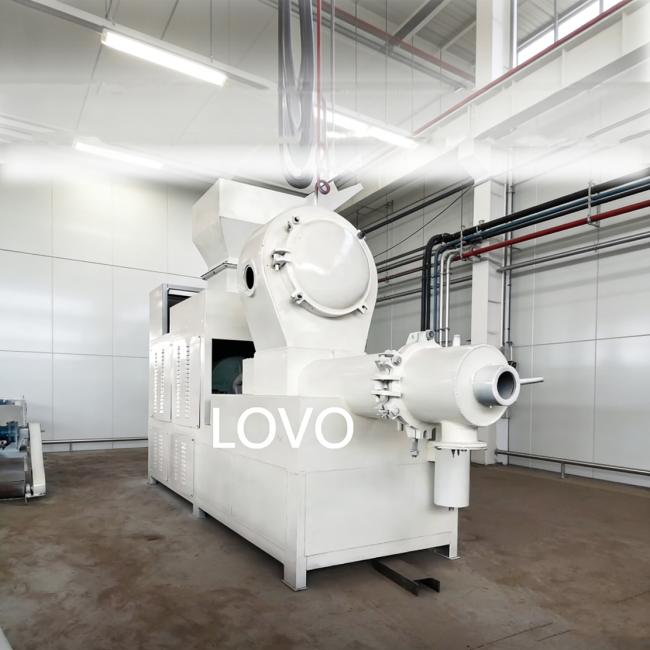

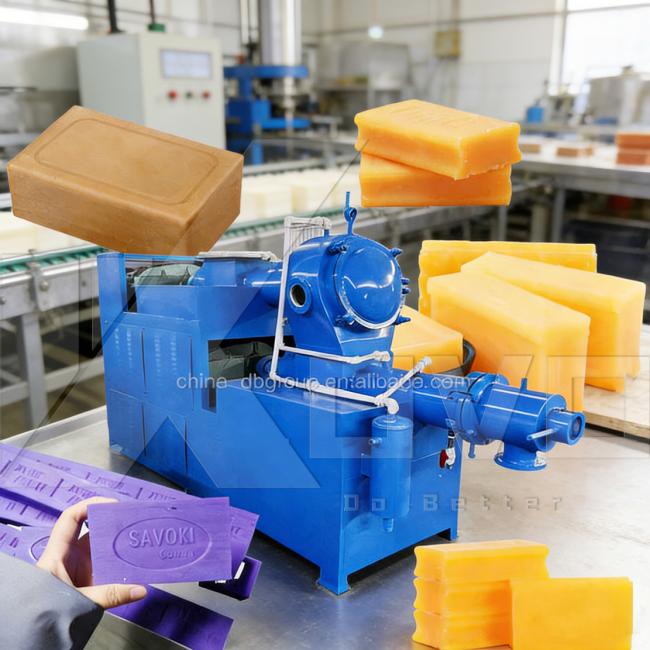

Double layer vacuum plodder machine
The plodder is composed of a two-stage discharge screw, and the primary one is equivalent to a single refiner machine to manufacture soap noodles under vacuum. At the end of the stage, the soap noodles are compressed, squeezed and continuously output in the form of soap bars.
Show Details

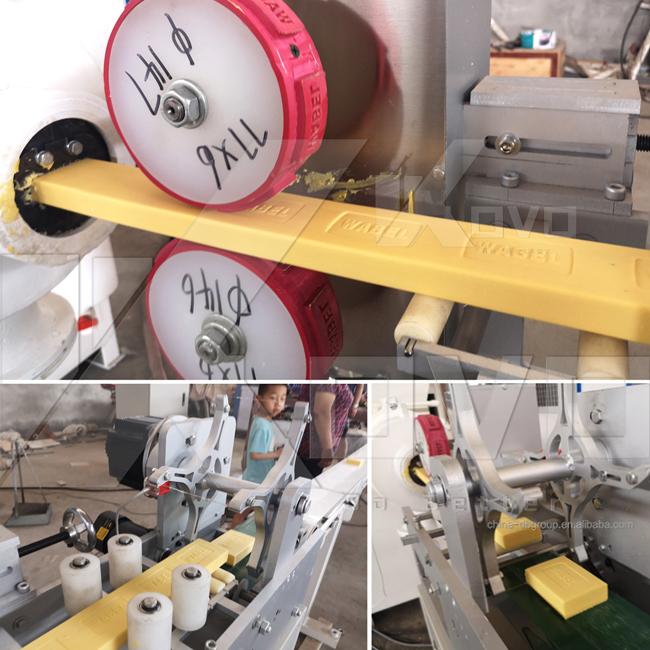

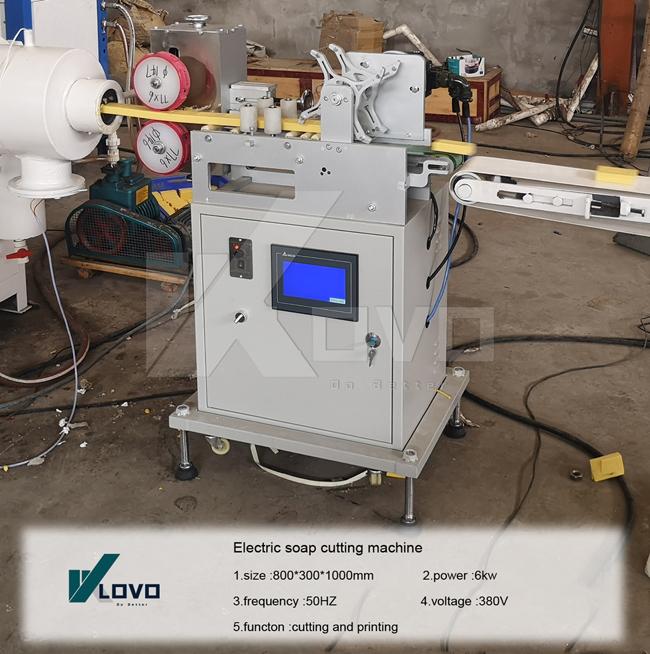

| Product name | SOAP cutting machine |
| Capacity | 100-2000kg/h |
| Speed of Mixing Drum | 20-40r/min |
| Motor Power | 2.6-6KW |
| Warranty | 1 Year |
Different Models
