High Quality Soap Toilet One to Three Printer Automatic Bath Soap Making Machine Factory Sale Soap Stamping Stamper Presser

Price Negotiable
Price: 15000-26500
MOQ: 1
Delivery Time: 20-30Workday
Brand: LOVO
Product Description
High Quality Soap Toilet One to Three Printer Automatic Bath Soap Making Machine Factory Sale Soap Stamping Stamper Presser

This high-quality automatic soap stamping press is designed for toilet and bath soaps. It supports 1 to 3 color printing and is available for sale directly from the factory.

Product Description:

Modern soap production is a continuous, automated process relying on professional soap machine sets to turn raw materials into finished soap products. The whole manufacturing process includes four core steps with dedicated equipment.

Raw Material Mixing: The production starts with a soap mixer. It fully blends soap base or soap granules with formula-based fragrances, colorants and moisturizing additives, producing smooth and homogeneous soap paste for further processing.

Refining and Fine Grinding: The mixed paste undergoes repeated shearing and grinding via roller and refining devices. This optimizes the internal structure, unifies density and lowers free alkali content, removing granular impurities to achieve fine and pure soap texture.

Vacuum Extrusion and Cutting: The refined material is fed into a soap plodder for vacuum extrusion. It eliminates internal air bubbles and molds dense, smooth and continuous soap bars. After extrusion, a professional soap cutting machine precisely cuts the long soap bars into standard-size soap blocks.

Stamping and Packaging: The cut soap blocks are delivered to a soap stamping machine, which high-pressure embosses clear brand logos and patterns for complete product shaping. After freezing shaping, automatic equipment completes cartoning, sealing and palletizing. All production scraps are recycled and reprocessed to realize zero-waste production.

1. Mixer – Blends the soap base, colorants, and fragrances until uniform.
Capacity 300kg per time
Power 11kw/h
Batch Time 3-5 minutes
Dimension 2150*1200*1450mm
Weight 650kg
2. Three-Roll Mill – Refines the soap material, ensuring a smooth, particle-free texture.
Roller Diameter 405mm
Roller Working Length 810mm
Power 15kw
Weight 5218kg
Dimension 2150*1950*1350mm
3. Soap Plodder – Performs vacuum extrusion to remove air bubbles and shape the soap bars.
Capacity 2000kg/h
Power 15KW, 30kw adjustable motor
Dimension

4000*1000*2450mm

Weight 2570kg
4. Automatic soap Cutting Machine – Cuts continuously with adjustable length settings
Power 1.5KW
Capacity 100-3000kg/h
Cutting Size 60-400mm
Dimension 800*360*800mm
Weight 58kg
5. Soap stamping machine--For printing on toilet soap and imprinting logos.
Power 3.5KW
Capacity 500-1000kg/h
Soap specifications 20-200g
Dimension 1530*1050*1900mm
Weight 1600kg
Client Visit:

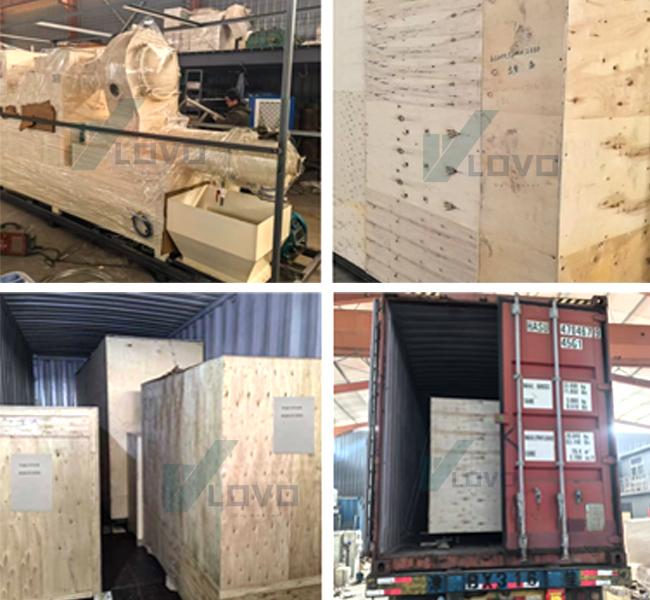

Logistics and Packaging:

Positive Feedback from Clients:

FAQ:
  1. 1. What soap types can this line make?
    Laundry, toilet, beauty, hotel, and gift soap. We can test your formula.
  2. 2. Carbon steel or stainless steel?
    Stainless for high-quality soap and export. Carbon steel for low-cost production.
  3. 3. Do you send engineers abroad?
    Yes. We arrange onsite installation and training. Customer covers travel & stay.
  4. 4. When does delivery time start?
    After deposit received and all drawings confirmed.
  5. 5. Warranty and after-sales?
    12 months warranty. Video support + free spare parts. Onsite service if needed.
