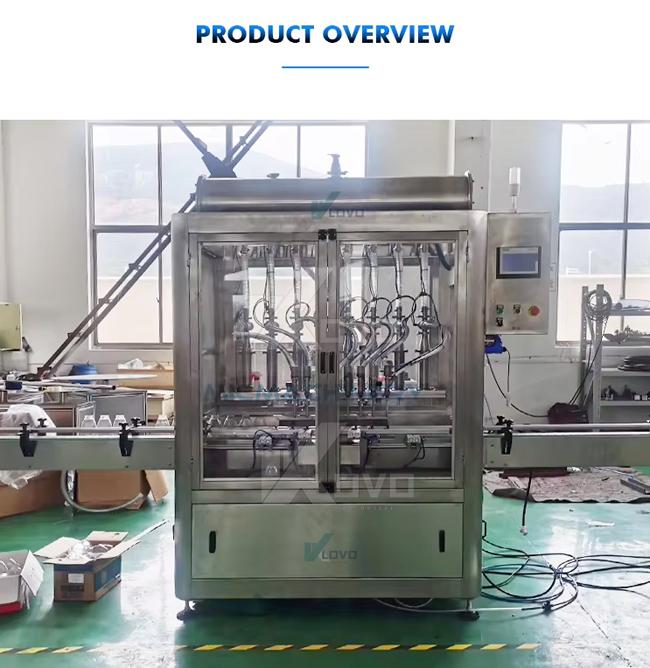

Auto 100-1000ml Liquid Soap Aundry Hand Washing Gel Dishwashing Liquid Filling Machine

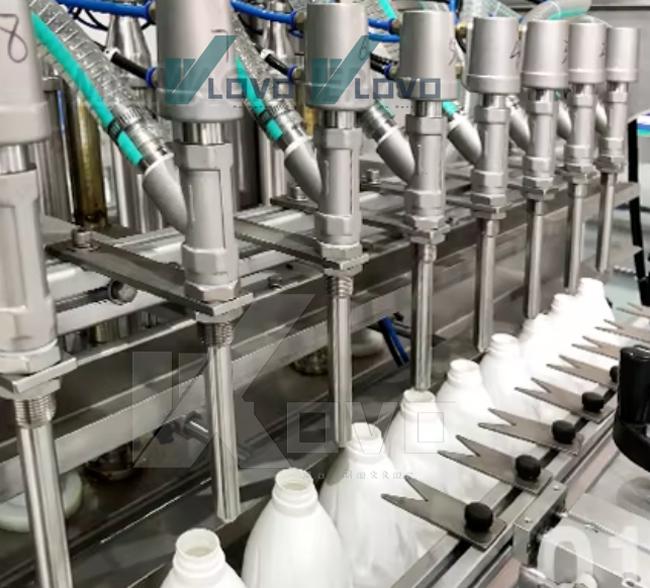

Every filling head has anti-drop design. Itpromise do not waste the material. Anddiameter of filling head basis on thediameter of customer's barrel's mouth.

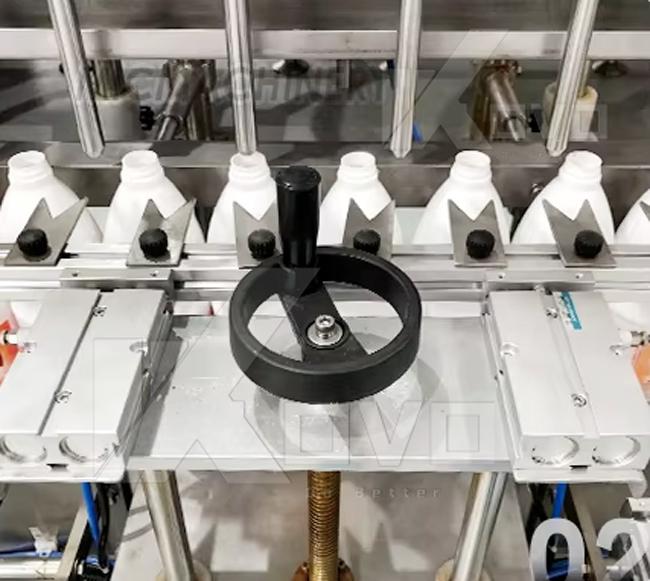

This function is for prevent materialdripping on the bottle and conveyor. Andthere will be a flexible plate coming outand back to take the dripping materials

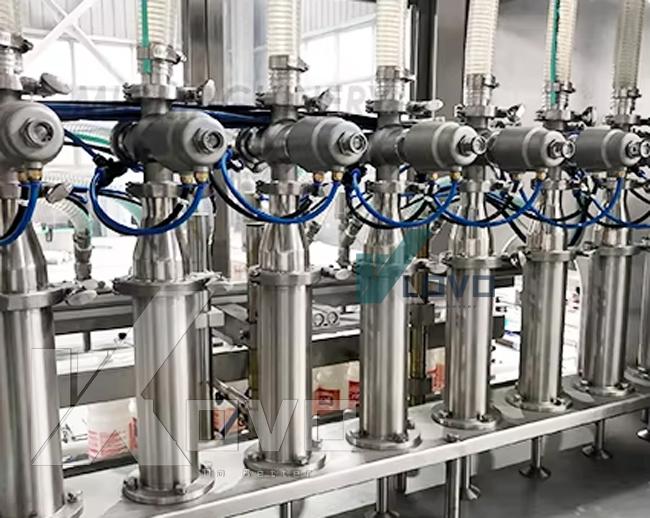

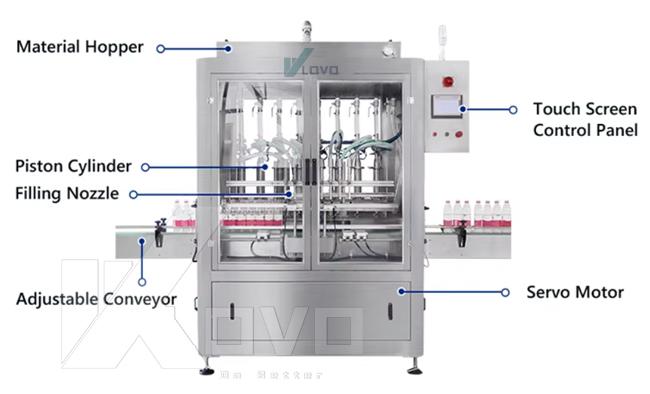

The piston is drawn back in its cylinderso that the product is sucked into thecylinder. The rotary valve then changesposition so that the product is pushedout of the nozzle instead of back into thehopper.

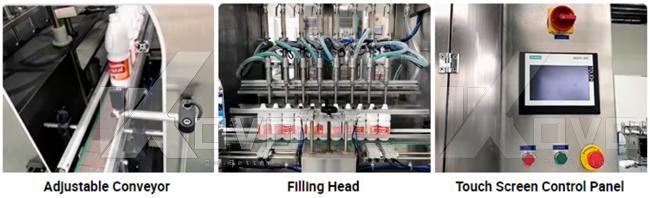

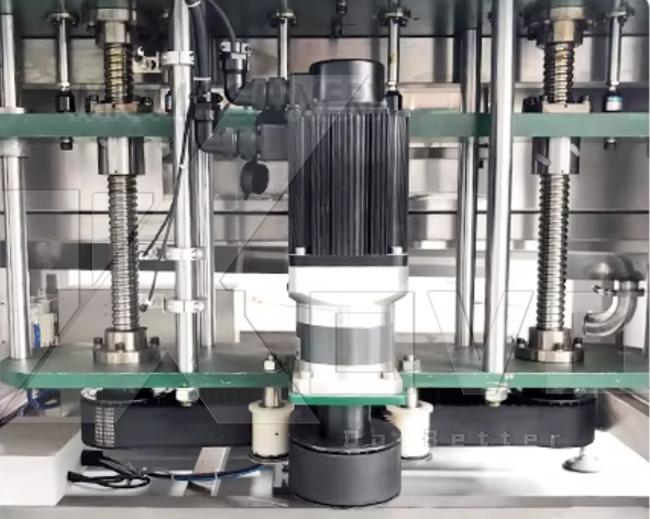

Servo motor can control filling moreaccurately and can realize filling nozzlediving bottom-up filling. The fillingvolume can also be adjusted on thetouch screen and has an automatic fineadjustment function for each fillinghead.
|
Weight
|
700KG
|
|
Filling Volume
|
100-1000ml
|
|
Filling Error
|
≤3%
|
|
Suitable Filling Material
|
Oil,shampoo,detergent,sauce, honey, etc
|
|
Suitable Barrel Width
|
120-250mm
|
|
Dimension
|
2000*1300*2200mm
|
|
Power
|
1.5Kw
|
|
Filling nozzle
|
8 nozzles
|
|
Capacity
|
≤3000BPH
|
|
Suitable Barrel Length
|
180-330mm
|
|
Suitable Barrel Height
|
80-450mm
|
FAQ
1. What is the filling volume range of this machine?
This machine fills from 100ml to 1000ml (1 liter) per container. The volume is easily adjustable via the control panel – no tools required. Custom ranges (e.g., 50-500ml or 200-2000ml) are available upon request.
2. Can this machine fill both thin and thick liquids?
Yes, it handles a wide viscosity range – from thin liquids like water-based detergents to thicker liquids like hand wash gel and liquid soap. The pump system is selected based on your specific product viscosity.
3. What is the filling speed of this automatic filler?
Filling speed depends on volume and viscosity, typically:
-
20–40 bottles per minute for 100-500ml fills
-
10–20 bottles per minute for 500-1000ml fills
Please contact us with your target fill volume for an exact speed estimate.
4. How accurate is the filling volume?
The filling accuracy is ±0.5% to ±1% of target volume. For example, a 500ml fill will be within ±2.5-5ml. Higher precision systems (up to ±0.2%) are available for premium applications.
5. How do I clean the machine when changing products?
Cleaning is simple. The machine features quick-release clamps on nozzles and hoses. All product-contact parts are made of stainless steel. You can flush the system with warm water or cleaning solution in 10–15 minutes.
