90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm
Price:
$200-500 / piece
MOQ:
2 pieces
Delivery Time:
30 days
Brand:
XINHE MOTOR
Product Description
48VDC Brushless BLDC Motor 2.2KW 1200rpm～3200rpm with Hall Sensor
Product Overview
Technical Specifications
Brushless DC Motor Specifications
Installation Options:

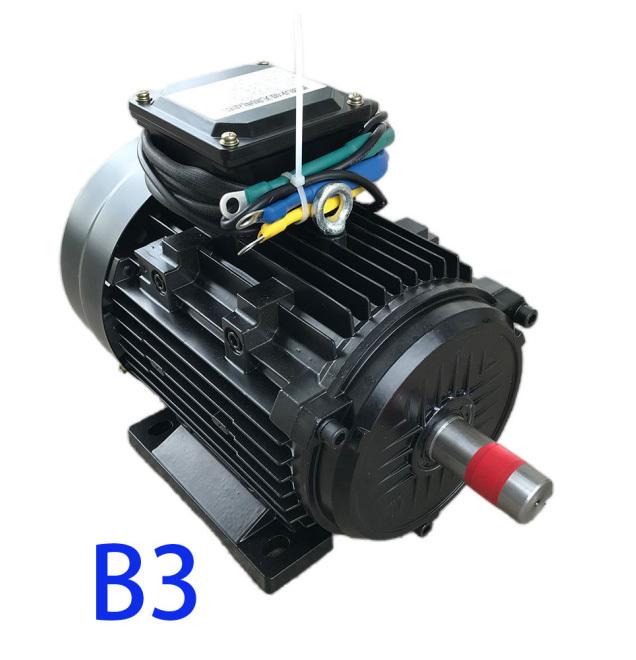

B3 Horizontal installation: Horizontal mounting with mounting feet
B5 Vertical flange installation: Vertical mounting without mounting feet

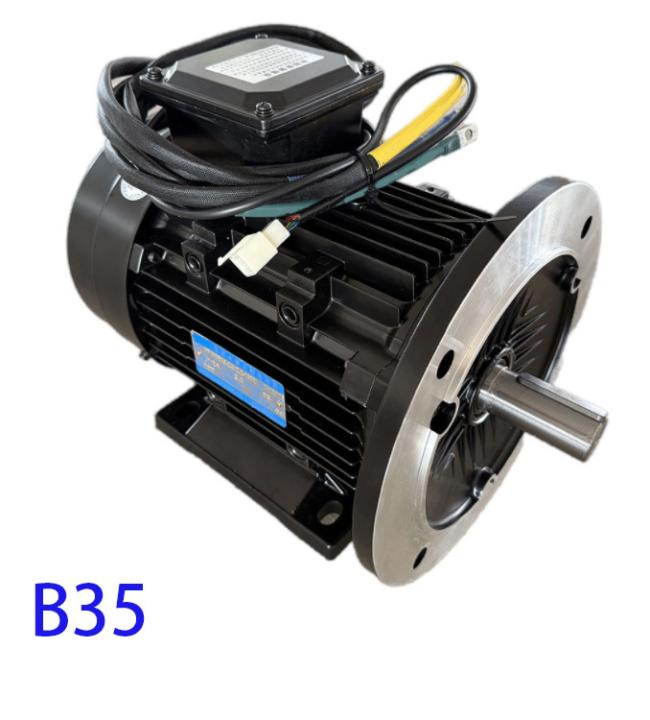

Motor installation fixed mode, vertical horizontal installation B35. The installation mode of B14 and B34 is optional.
B3 Horizontal installation: Horizontal mounting with mounting feet
B5 Vertical flange installation: Vertical mounting without mounting feet
Motor installation fixed mode, vertical horizontal installation B35. The installation mode of B14 and B34 is optional.
| BLDC MOTOR Model | Voltage | Rated Power (KW) | Rated Speed (RPM) | Rated Current (A) | Rated Torque (N.m) | Weight (kg) | Cooling |
|---|---|---|---|---|---|---|---|
| BL90B3/5-24V1.5-1500 | 24 | 1.5 | 1500 | 65 | 9.5 | 10.0 | Fan cooling |
| BL90B3/5-24V1.8-1400 | 24 | 1.8 | 1400 | 78 | 12.2 | 12.0 | |
| BL90B3/5-36V1.5-1500 | 36 | 1.5 | 1500 | 43 | 9.5 | 10.0 | |
| BL90B3/5-36V2.0-1500 | 36 | 2.0 | 1500 | 57 | 12.6 | 12.5 | |
| BL90B3/5-48V1.5-1500 | 48 | 1.5 | 1500 | 32 | 9.5 | 10.0 | |
| BL90B3/5-48V1.8-2000 | 48 | 1.8 | 2000 | 39 | 8.5 | 12.0 | |
| BL90B3/5-48V2.0-1500 | 48 | 2.0 | 1500 | 43 | 12.6 | 12.5 | |
| BL90B3/5-48V2.5-2800 | 48 | 2.5 | 2800 | 54 | 8.4 | 9.5 | |
| BL90B3/5-48V3.0-3000 | 48 | 3.0 | 3000 | 65 | 9.5 | 10.5 | |
| BL90B3/5-60V1.5-1500 | 60 | 1.5 | 1500 | 26 | 9.5 | 10.0 | |
| BL90B3/5-60V2.0-1500 | 60 | 2.0 | 1500 | 34 | 12.6 | 12.5 | |
| BL90B3/5-60V3.0-3200 | 60 | 3.0 | 3200 | 52 | 8.9 | 10.5 | |
| BL90B3/5-72V1.5-1500 | 72 | 1.5 | 1500 | 21 | 9.5 | 10.0 | |
| BL90B3/5-72V2.0-1500 | 72 | 2.0 | 1500 | 28 | 12.6 | 12.5 | |
| BL90B3/5-72V3. -3000 | 72 | 3.0 | 3000 | 43 | 9.5 | 10.5 |
Key Features
- The rotor is of rare-earth permanent magnet structure, featuring large starting torque and low starting current
- Small in size, light in weight, and has high efficiency
- Excellent speed regulation performance with wide efficient operating range
- Permanent magnet structure has no carbon brushes, simple structure, requires no maintenance, and has good reliability
- Can be frequently started and stopped, and can operate continuously under the rated load
- Same size as the Y2 series AC asynchronous motor, making it convenient for replacement and installation
Performance Characteristics
Overload Capacity:
The motor can handle a short-term power overload of 1.5 times, a torque overload of 3 times, and can operate continuously under the rated load.
The motor can handle a short-term power overload of 1.5 times, a torque overload of 3 times, and can operate continuously under the rated load.
Operating Environment:
Altitude below 4000 meters, air humidity ≤ 90% RH, environmental temperature ranging from -25℃ to +60℃.
Altitude below 4000 meters, air humidity ≤ 90% RH, environmental temperature ranging from -25℃ to +60℃.
Technical Drawings
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We're manufacturer, We specialize in micro ac/dc motor and dc gear motor for more than 16 years.
Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc.
Q: What should I provide when I choose gearbox/speed reducer?
A: 1) Load condition 2) Speed of rotation or speed ratio 3) Work circumstance 4) Space of installation
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30 days, a bit longer for customized products.
