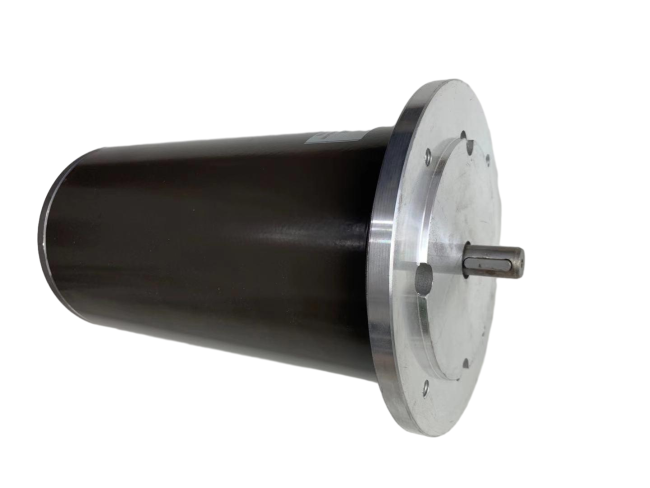

72V 1200W 2000RPM High Performance Brushed PMDC Motor High Speed for Industrial Tool HVAC Fan
High torque, low noise permanent magnet DC motor designed for medical wheelchairs, light conveyors, and various industrial applications.
Best for: Light-duty conveyors, medical mobility, small hoists, agricultural feeders
Best for: Floor scrubbers, pallet trucks, gate operators, packaging machines
Best for: AGV robots, material handling, electric forklift aux, industrial pumps
Best for: Electric tricycles, industrial blowers, textile machinery, woodworking tools
Best for: Electric scooters, marine winches, heavy door drives, mining small equipment
Best for: High-speed industrial tools, vehicle traction, large HVAC fans, hydraulic units
- Rare-earth permanent magnet rotor structure with large starting torque and low starting current
- Compact size, lightweight design with high efficiency
- Excellent speed regulation performance with wide efficient operating range
- Permanent magnet structure eliminates carbon brushes, requires no maintenance, and ensures good reliability
- Capable of frequent starting and stopping operations
- Can operate continuously under rated load conditions
- Same dimensions as Y2 series AC asynchronous motors for easy replacement and installation
Overload Capacity: The motor can handle short-term power overload of 1.5 times, torque overload of 3 times, and can operate continuously under rated load.
Operating Environment: Altitude below 4000 meters, air humidity ≤ 90% RH, environmental temperature ranging from -25℃ to +60℃.
Installation Options:
- B3 Horizontal installation: Horizontal mounting with mounting feet

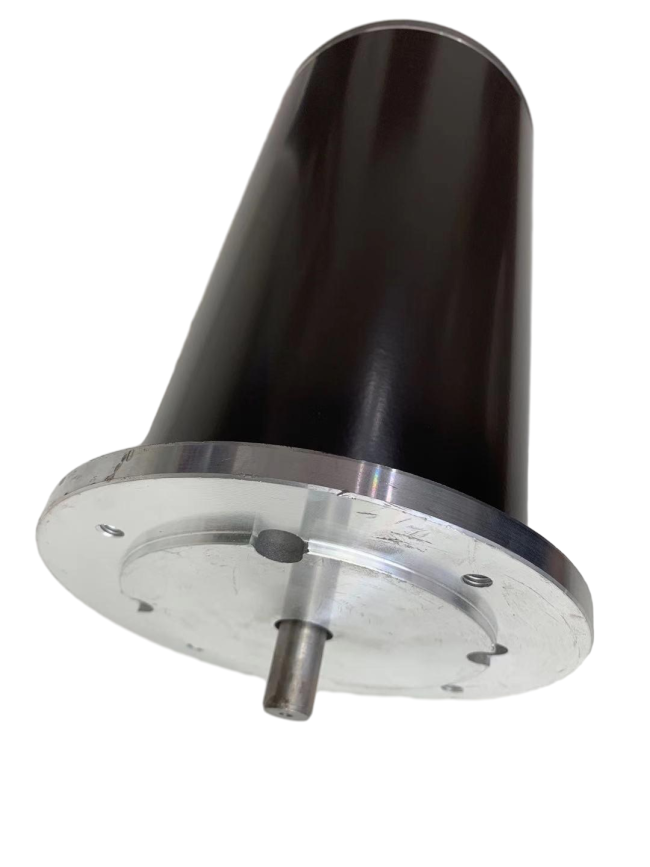

- B5 Vertical flange installation: Vertical mounting without mounting feet
- Motor installation fixed mode, vertical horizontal installation B35
- The installation mode of B14 and B34 is optional
| PMDC Motor Model | Voltage | Rated Power (KW) | Rated Speed (RPM) | Rated Current (A) | Rated Torque (N.m) | Weight (kg) | Cooling |
|---|---|---|---|---|---|---|---|
| D90B3/5-24V1.5-1500 | 24 | 1.5 | 1500 | 65 | 9.5 | 10.0 | Fan cooling |
| D90B3/5-24V1.8-1400 | 24 | 1.8 | 1400 | 78 | 12.2 | 12.0 | |
| D90B3/5-36V1.5-1500 | 36 | 1.5 | 1500 | 43 | 9.5 | 10.0 | |
| D90B3/5-36V2.0-1500 | 36 | 2.0 | 1500 | 57 | 12.6 | 12.5 | |
| D90B3/5-48V1.5-1500 | 48 | 1.5 | 1500 | 32 | 9.5 | 10.0 | |
| D90B3/5-48V1.8-2000 | 48 | 1.8 | 2000 | 39 | 8.5 | 12.0 | |
| D90B3/5-48V2.0-1500 | 48 | 2.0 | 1500 | 43 | 12.6 | 12.5 | |
| D90B3/5-48V2.5-2800 | 48 | 2.5 | 2800 | 54 | 8.4 | 9.5 | |
| D90B3/5-48V3.0-3000 | 48 | 3.0 | 3000 | 65 | 9.5 | 10.5 | |
| D90B3/5-60V1.5-1500 | 60 | 1.5 | 1500 | 26 | 9.5 | 10.0 | |
| D90B3/5-60V2.0-1500 | 60 | 2.0 | 1500 | 34 | 12.6 | 12.5 | |
| D90B3/5-60V3.0-3200 | 60 | 3.0 | 3200 | 52 | 8.9 | 10.5 | |
| D90B3/5-72V1.5-1500 | 72 | 1.5 | 1500 | 21 | 9.5 | 10.0 | |
| D90B3/5-72V2.0-1500 | 72 | 2.0 | 1500 | 28 | 12.6 | 12.5 | |
| D90B3/5-72V3.0-3000 | 72 | 3.0 | 3000 | 43 | 9.5 | 10.5 |
