12mm N20L DC Gear Motor 6V/12V High Torque Low Speed With Encoder For Smart Locks & Electronic Toys
Price:
USD5/PC
MOQ:
1PC
Delivery Time:
30 days
Brand:
XINHE MOTOR
Product Description
6V 12mm N20 LP Lower Power Micro Brushed DC Metal Gear Motor with Stainless Steel Gears
N20 brushed DC metal gear motors with stainless steel gears available in a wide range of gear ratios for electronic lock applications and precision machinery.
Technical Features
- Low Power version with 0.36A stall current
- Available with 12CPR encoder or without encoder
- Optional back shaft configuration
- Choice of metal brush or carbon brush

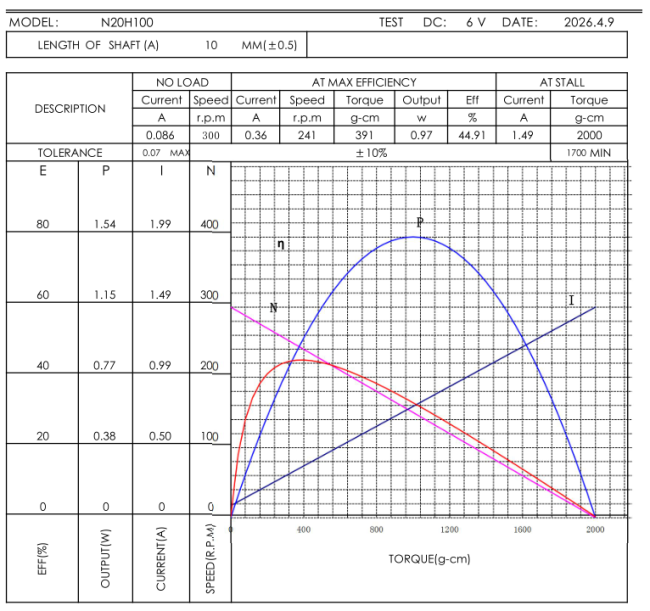

FOR EXAMPLE: N20H100 (6V 100:1 TEST CURVE)
Technical Parameters
| Model | Voltage (VDC) | No Load Speed (rpm) | No Load Current (mA) | Stall Torque (kg.cm) | Gear Ratio |
|---|---|---|---|---|---|
|
N20L5 |
6V/12V |
2500 rpm |
30/15mA |
0.05kg.cm |
5:1 |
|
N20L10 |
6V/12V |
1300 rpm |
30/15mA |
0.1 kg.cm |
10:1 |
|
N20L20 |
6V/12V |
650 rpm |
30/15mA |
0.2 kg.cm |
20:1 |
|
N20L30 |
6V/12V |
440 rpm |
30/15mA |
0.4 kg.cm |
30:1 |
|
N20L50 |
6V/12V |
250 rpm |
30/15mA |
0.5 kg.cm |
50:1 |
|
N20L75 |
6V/12V |
170 rpm |
30/15mA |
0.8 kg.cm |
75:1 |
|
N20L100 |
6V/12V |
120 rpm |
30/15mA |
1.0 kg.cm |
100:1 |
|
N20L150 |
6V/12V |
85 rpm |
30/15mA |
1.5 kg.cm |
150:1 |
|
N20L210 |
6V/12V |
60 rpm |
30/15mA |
2.0 kg.cm |
210:1 |
|
N20L250 |
6V/12V |
50 rpm |
30/15mA |
2.4 kg.cm |
250:1 |
|
N20L298 |
6V/12V |
45 rpm |
30/15mA |
2.8 kg.cm |
298:1 |
|
N20L380 |
6V/12V |
35 rpm |
30/15mA |
3.5 kg.cm |
380:1 |
|
N20L1000 |
6V/12V |
14 rpm |
30/15mA |
5.0 kg.cm |
1000:1 |
Product Specifications
| Speed (RPM) | 14~2500 RPM |
| Continuous Current (A) | 0.4A MAX. |
| Efficiency | IE 2 |
| Warranty | 3 months - 1 year |
| Place of Origin | Guangdong, China |
| Brand Name | XINHE MOTOR |
| Model Number | N20L |
| Use | Smart Locks, Electronic Toys, Small Robots, Automatic Dispensers, Camera Mounts |
| Type | GEAR MOTOR |
| Stall Torque | 5kg.cm max. |
| Construction | Permanent Magnet |
| Commutation | Brush |
| Protect Feature | Totally Enclosed |
| High Torque | 1600mA |
| Middle Torque | 700mA |
| Low Torque | 360mA |
| Gear Rate | 5:1 TO 1000:1 |
| Long Life | 300 HOURS |
| Gear Material | Stainless steel |
| Encoder | 12CPR |
| Bracket | Copper |
| Noise | Less than 20dB |
| Certification | RoHS, CE |
Product Drawings
Application Areas
This type of gearbox motor is mainly used in electronic locks, robots, cameras and small machinery.
Common Application Scenarios
• Intelligent door locks, electronic lock bodies
• Intelligent curtains, electric curtain tracks
• Smart toilet, automatic bathroom lid closing
• Shared charging stations, automatic devices
• Electric toothbrushes, beauty devices
• Camera pan-tilt, auto-focus mechanisms
• Robots, small mechanical arms
• Automotive electronics: mirrors, seat adjustment
• Smart Home: window openers, pet feeders
• Security equipment: surveillance cameras
• Financial equipment: printers, currency counters
• Electronic toys, remote-controlled vehicles
• Medical equipment: pumps, analyzers
• Office equipment: printers, scanners
• Electronic devices
• Intelligence development robot, intelligent toy
Our Services
- ODM & OEM Services
- Gearbox design and development
- Related technology support
- Custom packaging & shipping solutions
Packaging Details
Motors are packed in nylon first, then carton, and reinforced with wooden case for outer packing. Custom packaging available according to client requirements.
Shipping Details
Samples shipped within 10 days. Batch order lead time varies according to order quantity and specifications.
Factory Introduction
SHENZHEN XINHE MOTOR Co., Ltd, located in Shenzhen city, is a specialized factory with over 16 years of experience producing AC/DC motors for various applications including kitchen appliances, air flow products, air conditioners, water heaters, pumps, power tools, robots, 3D printers, medical products, smart wear, electrical toys, and household appliances.
Our management philosophy emphasizes humanistic values and supreme (good faith), with a quality consciousness focused on striving for perfection. We have gathered a team of specialists in engineering, manufacturing, quality control, production management and technology development.
From our powerful DC brushed and brushless motors, our experienced engineers and extensive application expertise make us a valued partner for project development and production with customer-specific motion solutions.
Our company manufactures, develops, designs and markets electronic products sold successfully in more than 20 countries worldwide. We offer complete professional solutions including superior customer service, reliable high-quality products, innovative design, wide product range, competitive prices, and convenient ordering quantities.
We are in full compliance with EU & America restrictions and regulations: CE standards, RoHS, child safety, environment safety and social responsibility. Our company comprehensively promotes ISO9001:2001 management systems and supplies motors to many famous worldwide companies with different applications in Europe, America, Middle East, East Asia, and South America markets.
Testing and Experimental Equipment
Frequently Asked Questions
Q1. What about the payment way?
A1. By TT at sight or trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. How long is the guarantee?
A2. We offer you high quality motors with 12 months guarantee and reply you as soon as possible within 5 hours.
Q3. If the motor some parts is broken one day, how can we get help from you?
A3. We will send you spare parts free of charge if they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q4. How does your factory do regarding quality control?
A4. We have CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q5. What is your packaging?
A5. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the motor on the wooden bracket.
Q6. How can we check the motor before delivery?
A6. We can provide online checking when testing the motor on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing and will provide detailed testing reports.
