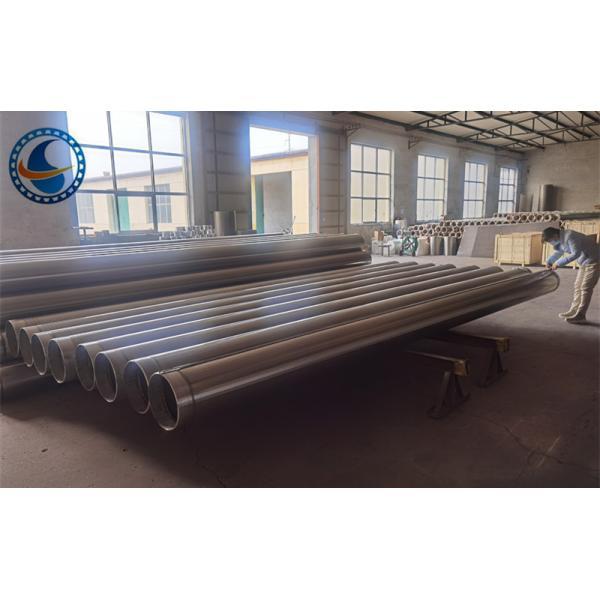

Non Magnetic Stainless Steel Johnson Well Screen 273mm 0.25mm Slot Opening
Non-magnetic Stainless Steel Johnson Well Screen
Improving Drilling Efficiency
Over the last century of growth and acquisition, Johnson Well Screen has become the screen of choice for industries as diverse as food, pulp and paper, mineral processing, oil and gas production, petrochemical refining, water and wastewater treatment and potable water supply.
Hengyuan Johnson Well Screen is confident that whatever part screening plays in your process, we can improve it through our design experience, our vast manufacturing capabilities and our around-the-world support..
Johnson Well Screen Normal Sizes:
| Name: Johnson well screen,Water wire screen, Johnson screens,Wire warp screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen,Oil screen. | |||||||
| Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,Duplex steel etc. | |||||||
| Diameter: From 29-1300mm (Normal diameter is in the below table) | |||||||
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) | |||||||
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container) | |||||||
| Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc. | |||||||
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. | |||||||
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. | |||||||
| Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. | |||||||
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tenslie Strength | Collapse Strength | Wrap wire Vee-shaped wire(mm) | Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2*3.5 (Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.0(Width*height) | ø4.0MM×54 |
Johnson Well Screen Characteristic:
1. It has high mechanical strength, can bear large pressure drop;
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reusing;
3. The wedge type slot can improve backflushing and regeneration performance ;
4. It has resistance for pressure, temperature, aging,corrosion, can be applied for different kinds of fluid .
