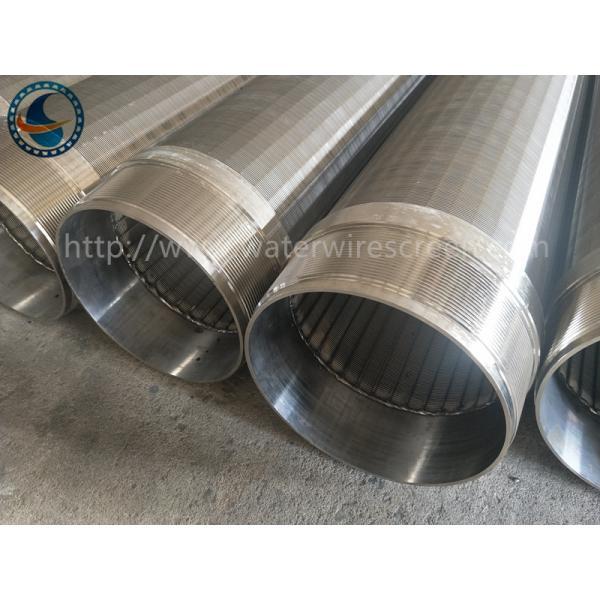

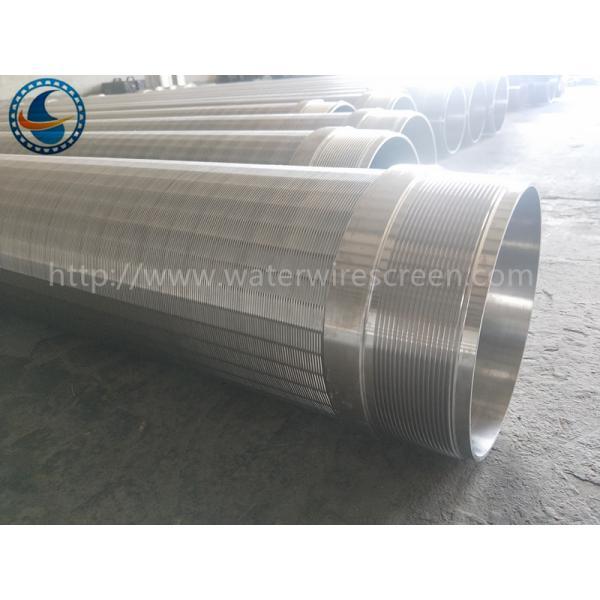

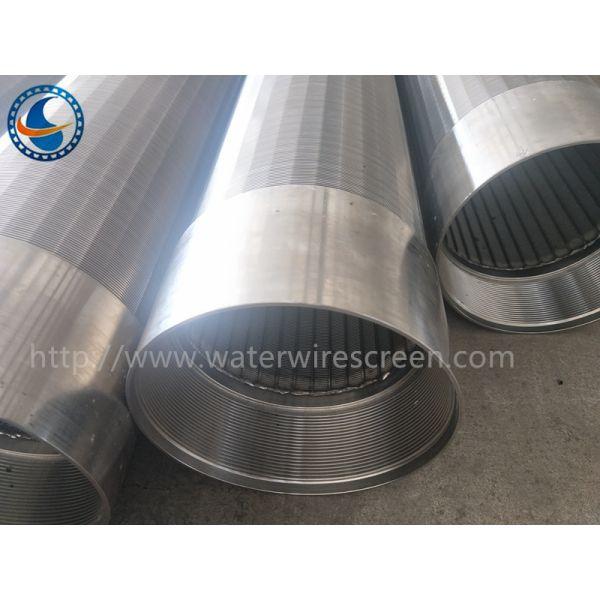

Stainless Steel 304 8-5/8" Diameter Small Wire Water Wire Screen Tube
Stainless Steel 304 8-5/8" Diameter Small Wire Water Wire Screen Tube
Description:
| Product Name | Profile Vee Wire Water Wire Screen Tube |
| Material | Stainless Steel |
| Grade | 304, Also can be 201, 205, 316L,321,904L, 2205, 2507 etc |
| O.D | 219mm,Also can be 114mm, 168 mm, 273mm, 325mm, 356mm, 377mm, 426mm etc |
| Size | 8-5/8", Also can be 4-1/2", 6-5/8", 10-3/4", 12-3/4", 14", 16" etc. |
| Slot size | 1.0 mm, Also can be 0.5mm, 0.63mm, 0.75mm, 1.5mm etc. |
| Length | 2.9m to fit container, Alao can be 5.8m or other lengths (upto 6 meters) |
| End connection | Thread Couplings ( male / female );, Also can be Welded rings, flange, closed etc. |
| Wire size | 1.5*2mm, Also can be 2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm etc |
| Support rod | ø3.8mm, Also can be ø2.8- ø5.0mm round wire or Vee shaped wire |
| Wire shape | Vee shaped (width* height) in mm |
Regular Specifications:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 4.8MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 3.8MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.0MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Special specification can be made according to your need!
Advantages:
When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
Industry:
Water Well Screen Pipe Screen, continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
