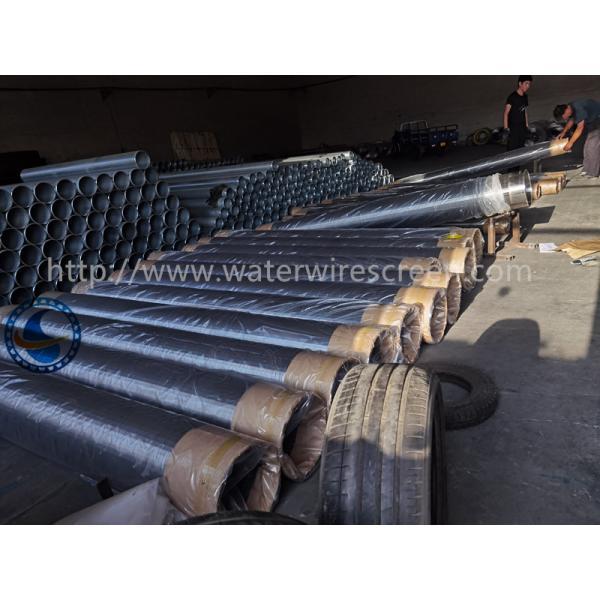

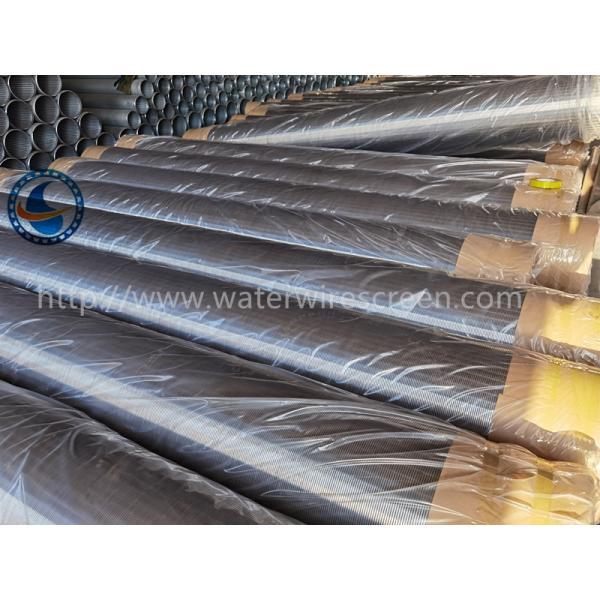

100 Bar Stainless Steel Water Wire Screen Used In Deep Well For Sand Control
100 Bar Stainless Steel Water Wire Screen Used In Deep Well For Sand Control
Product Description:
Stainless Steel Water Wire Screen is manufactured with Vee-shaped profile wire which is spirally wound around a cage of longitudinal support rods.
Each intersecting point of these wires is fusion welded.
The pitch of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
Stainless Steel 304 Water Wire Screen Specificarion:
| Material | Stainless steel |
| Grade | 304 |
| O.D | 273mm |
| Size | 10-3/4" |
| Length | 5800mm |
| Solt size | 1.0 mm |

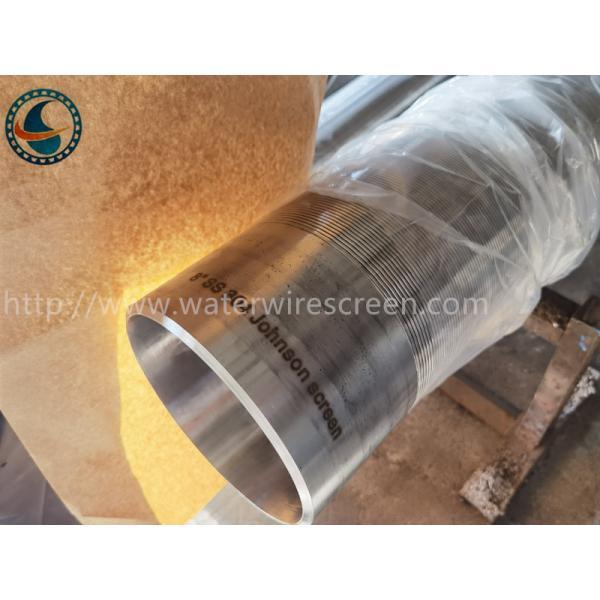

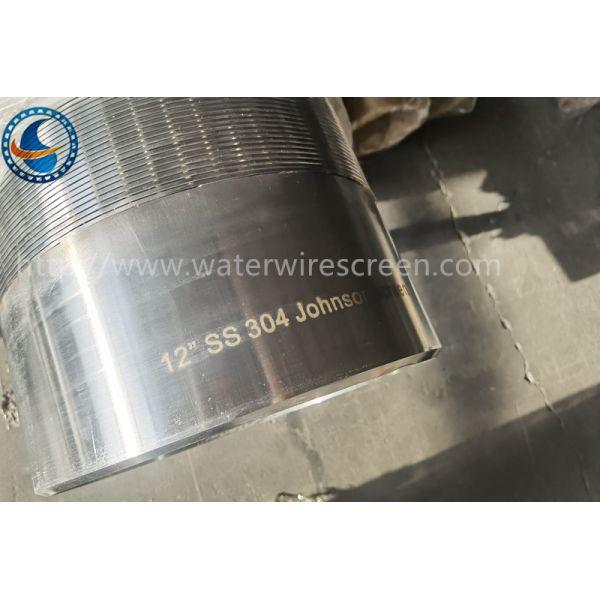

| End connection | Welded rings |
| Wire size | 3.0*5.0mm |
| Support rod | ø4.0mm*55PCS |
| Wire shape | Vee-shaped |
Stainless Steel 304 Water Wire Screen Characteristic:
1. Water Well Screen with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Stainless Steel 304 Water Wire Screen Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Stainless Steel 304 Water Wire Screen Use:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Stainless Steel Water Wire Screen size is customized by my client from Afghanistan,
We have make any other sizes by your request,
Pls give me drawing is ok, Or you can tell me the size directly.
