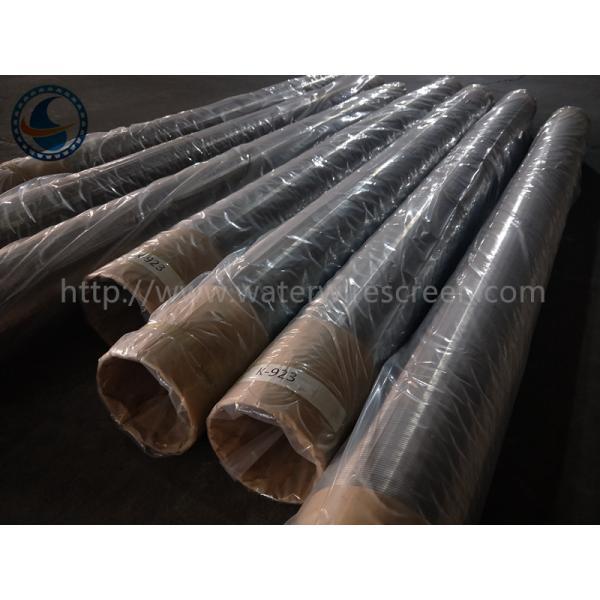

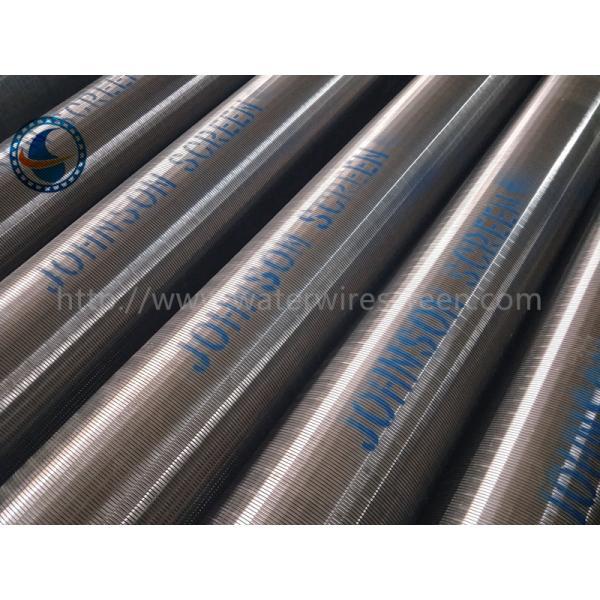

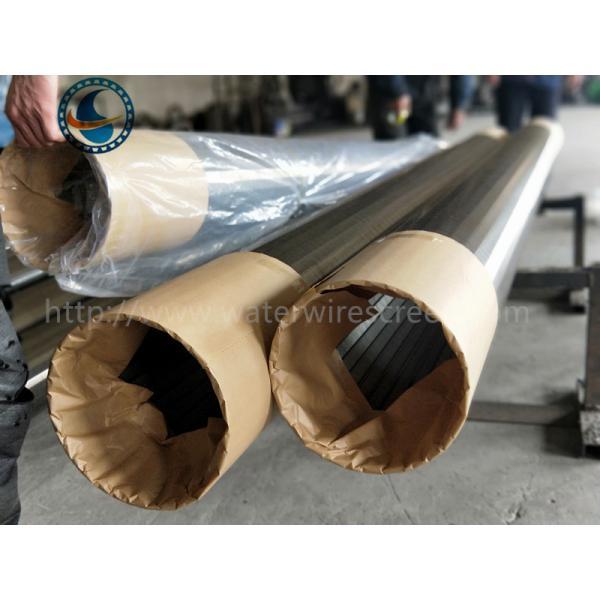

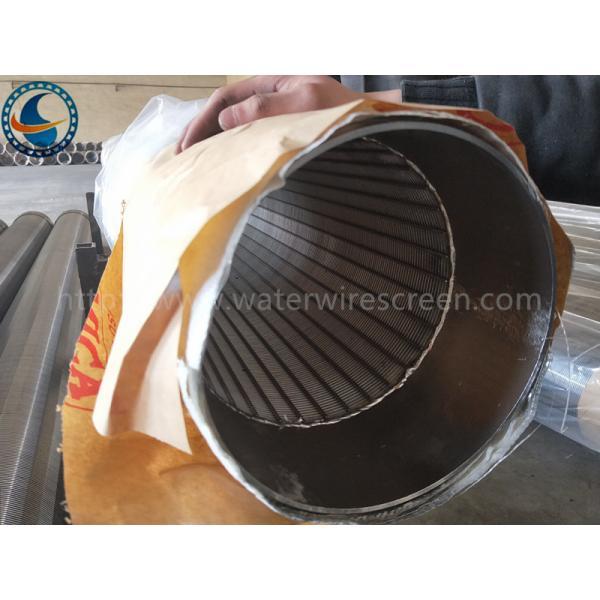

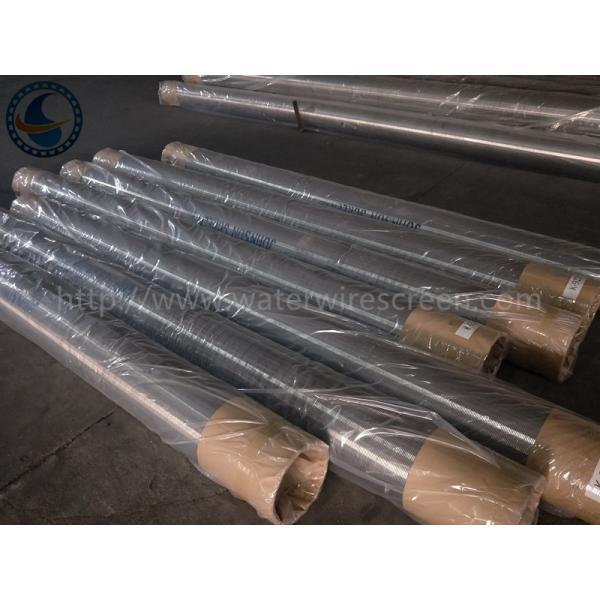

8-5/8" SS304 Johnson Well Screen Used In Water Wells For Sand Control
8-5/8" SS304 Johnson Well Screen Used In Water Wells For Sand Control
Johnson Well Screen Specificarion:
| Material | Stainless steel |
| Grade | 304, Also can be 205, 321, 316L etc. |
| O.D | 219mm, Also can be 89mm 117mm 168mm 273mm 325mm 377mm 426mm etc |
| Size | 8-5/8", Also can be 2-1/2", 3-1/2", 4-1/2", 5-1/2", 6-5/8", 10-3/4", 12-3/4", 14", 16" |
| Length | 5.8 m / 2.9 m in usual, to fit container (upto 6 meters ) |
| Solt size | 1.0 mm, Also be can 0.5mm, 0.63mm, 0.75mm, 1.5mm etc. |
| End connection | Welded rings, Also can be Male/female threaded couplngs; Flange and so on. |
| Wire size | 2*3.5mm, 2.2*3.5mm, 3.0*4.6mm, 3*5mm, 3.2*6mm, etc. |
| Support rod | ø2.5-6.0mm round wire , Also can be Vee shaped wire |
| Wire shape | Vee-shaped wire |
Johnson Well Screen Characteristic:
1. Johnson Well Screen with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Johnson Well Screens with high open area shall favor groundwater infiltration.
Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Johnson Well Screen Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Johnson Well Screen Use:
water well
water supply systems
Refining & petrochemical
Filter equipment
Sand control
