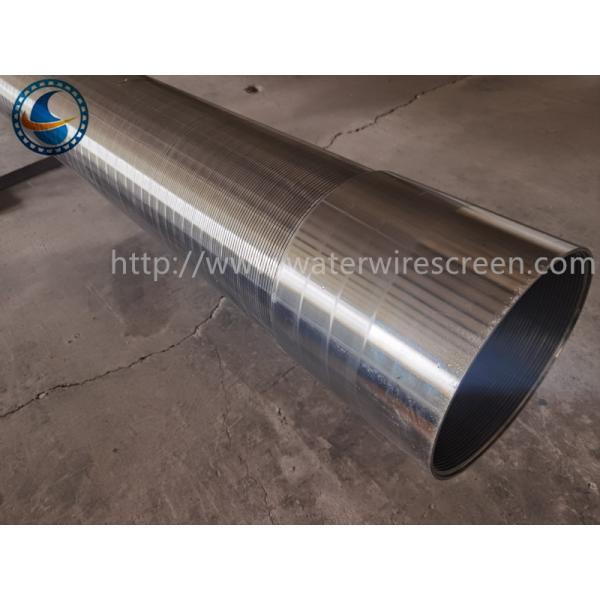

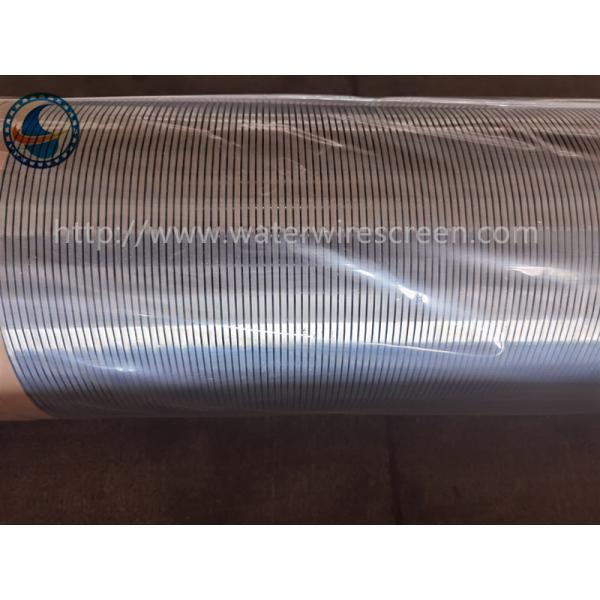

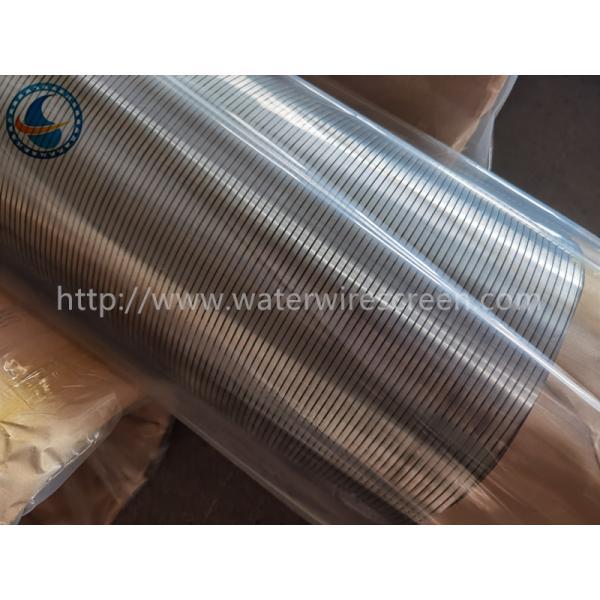

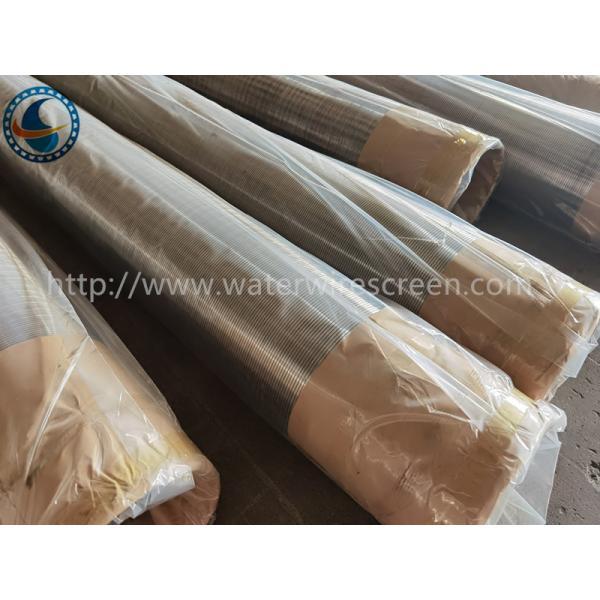

Stainless Steel 304 Slot 1.0mm 8-5/8" Water Wire Screen For Deep Wells
Stainless Steel 304 8-5/8" Lengthen Male/female Threaded Water Wire Screen Tube For Deep Well
Water Wire ScreenSpecificarion:
| Material | Stainless steel |
| Product Grade | SS304, Also can be SS316L, SS321, 904L, Duplex 2205, 2507 etc. |
| O.D | 219mm |
| water wire screen Size | 8-5/8", Also can be 4-1/2", 6-5/8", 10-3/4", 12-3/4", 14", 16" etc |
| water wire screen Length | 2.9m and 5.8m in usual , to fit container |
| Solt size | 1.0mm, Also can be 0.5mm, 0.63mm, 0.75mm, 1.5mm etc. |
| End connection | Male/female threaded, Also can be Welded Rings or Flange etc. |
| Wire size | 118# (3*4.6mm), Also can be 2*3.5mm, 2.2*3.5mm, 2.5*4mm, 3*5mm, 3*6mm etc |
| Support rod | ø5.0mm round wire, Also can be ø2.8-6.0mm, Or Vee shaped wire. |
| Wire shape | Must Vee shaped Wire |
Water Wire Screen Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Water Wire Screen Use:
High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Water Wire Screen OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Rod Based Continuous Slot material: mainly stainless steel, carbon steel galvanized or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 32 mm - 1300 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: Welded ring, Flange or male/female threaded connection.
