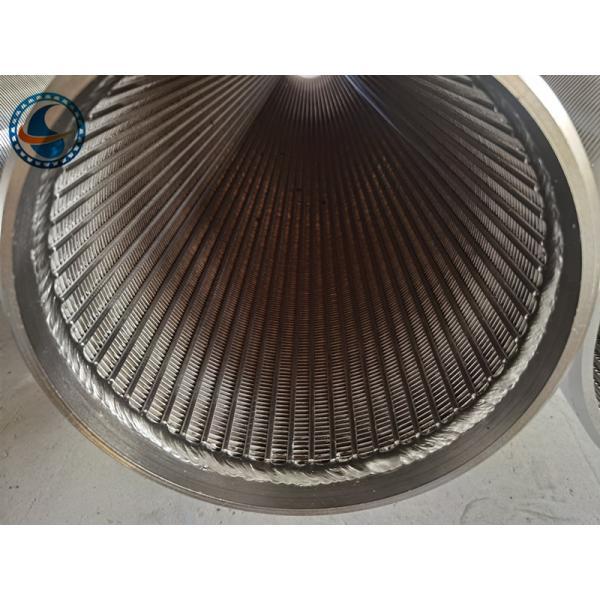

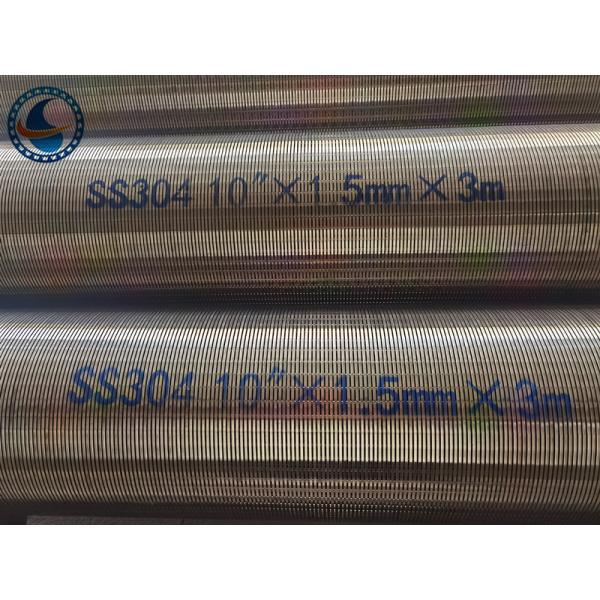

10" Slot 60 1.5mm Water Well Screen Stainless Steel For Sand Control
Water Well Screen Pipe Used In Water Well For Sand Control
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot size (mm): 0.25,0.5,0.63,0.75,1.0,1.50,2.00 etc ,also achieved upon customer request.
Diameter:4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14" etc.
Unit length:2.9m or 5.8m to fit container. also can be 3m or 6m.
Ends:Male/femle threaded, Bevel welded rings
Filtration Style: From outside to inside
Advantages of using Water Well Screen:
When compared to conventional slotted pipe, wire wrapped wedge wire screens have superior open area due to their continuous slot openings. The benefits of which will:
. Reduce energy consumption and increase water flow.
. Reduce erosion of entry surfaces and increase well life.
. Allow a uniform and efficient well development.
. Reduce significantly potential pump damage and subsequent maintenance costs.
Specifications of Water Well Screen:
- Material: stainless steel wire or galvanized wire.
- Surface profile: triangle wire.
- Support profile: triangle wire, round bar and wedge wire.
- Slot size: 0.25 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
- Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
- Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
Water Well Screen Regular Specification:
| SIZE | O.D | SLOT | LENGTH | COLLAPSE STRENGTH | TENSILE STRENGTH | WRAP WIRE | RODS |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 4.0MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.2MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.2MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.8MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.2MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.2MM/59 |
