Nonmagnetic SS Wire Wrapped Screen 1.0mm Slot Screen Tube Export To Pakistan

Product Description:

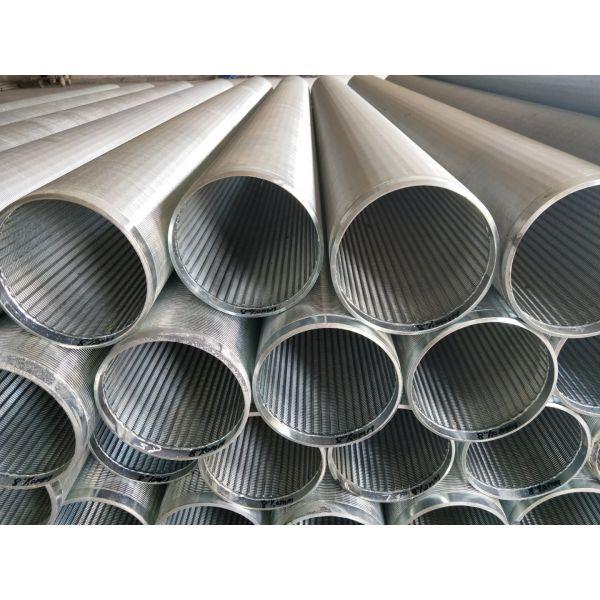

Johnson Wire Wrap Screen are made by welding v-shaped wire on support rods, creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness,durability, consistency and slot openings. The v-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Specificarion:

Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Regular Specification:

Material: Stainless steel 304, 304L, 316, 316L, 321. Low Carbon Steel Galvanized

Diameter: 30 - 1000mm, such as 63mm, 89mm, 117mm, 168mm, 219mm, 273mm, 325mm, 377mm and so on.

Inch: 3 " , 4 " , 6 " , 8 " , 10 " , 12 " , 14 " , 16 "  and so on.

Length: 2.9m and 5.8m is the regular length ,and we can make the length 300mm - 6000mm.

Slot size: 0.2mm , 0.5mm , 0.7mm , 1.0mm , 1.5mm. 0.1 - 45mm.

End connection: welded rings, thread couplings ( male / female )

V wire: 63 #, 93 #, 118#, and so on.

Support rod : diameter 300mm, 350mm, 380mm, 400mm, 480mm, 500mm and so on.

We can make the screen pipe as the customers' requested!

Use:

Johnson wire wrap screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
