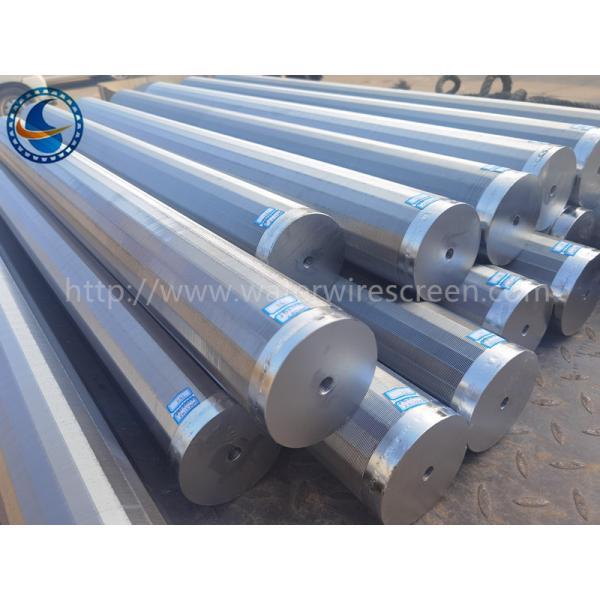

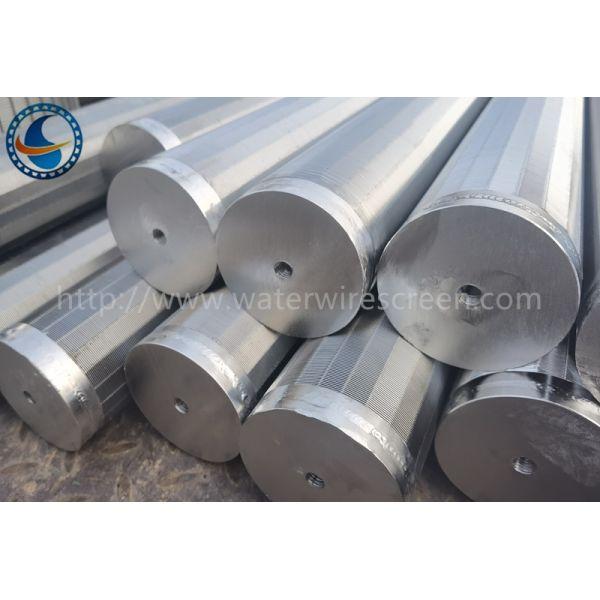

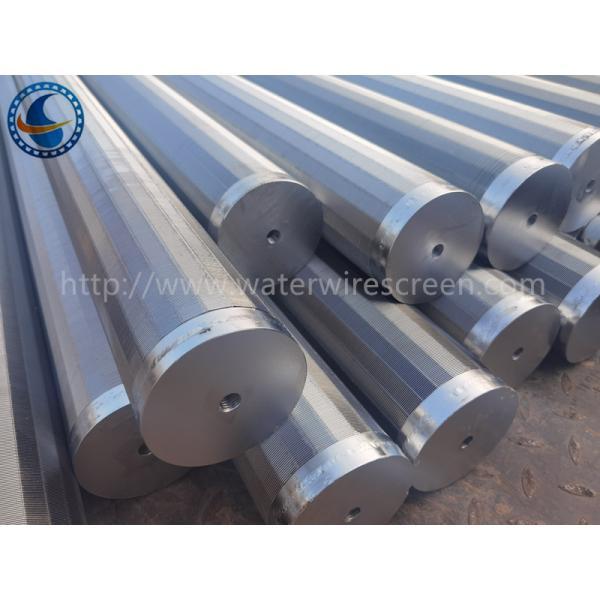

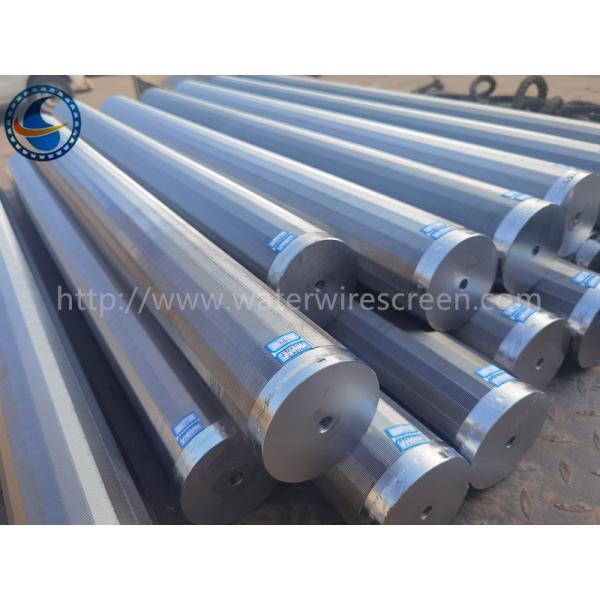

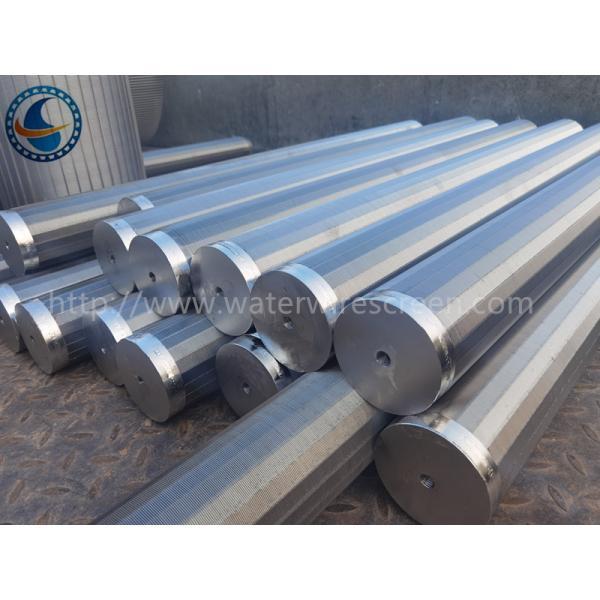

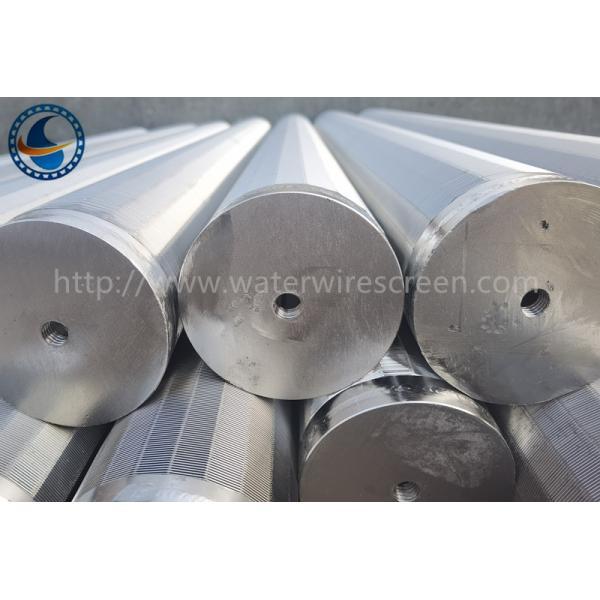

Stainless Steel 316L Inverted Shallow Well Screen With 150um Slot
Stainless Steel 316L Inverted Wire Wrapped Screen Tube
External circumferential inverted wire and axial internal support rods.
Inverted Wire Wrapped Screen Tube Benefite:
Economical
Inverted Wire Wrapped Screen Tube Applications:
Inside to outside flow
Inverted wire wrapped screen tube, Also be named profile wire wrap screen,Johnson screen, water well screen, water wire screen,wound screen.
Inverted Wire Wrapped Screen Tube Normal Specification:
1: Material:AISI 304, 316L etc.
2: Technique: welding
3: Features :non-clogging
4: Application:filtration
5: Diameter: 29-1300mm are all available
6: Common slot opening: 0.05-1000mm
7: Used in wastewater treatment.
8.Profile wire:1*2mm, 1.2*2mm, 1.5*2mm
9. Support rod:2*3mm
10.Ends:Can with welded rings, male/female threaded couplings, closed up, Open ends etc.
| Inverted Wire Wrapped Screen Tube Sizes: | ||
| Specification (Profile wire): VEE-shaped Wire: (Width*height) | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 | |
| Specification (support rods): VEE-shaped Wire: (Width*height) | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm | |
| Note: other wires and rods available upon request. | ||
| Slot size (um) | 50,100,150,200,250,300……also achieved upon request. | |
| Material: | AISI 304, 304L, 316L ,321 etc. | |
| Length | Upto 4 meters | |
| Diameter | 29-1300mm | |
| Screen end | Plain beveled ends, male/female threaded, flange, close up.Open ends | |
| Other sizes available on request. | ||
| Advantage
| Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. | |
