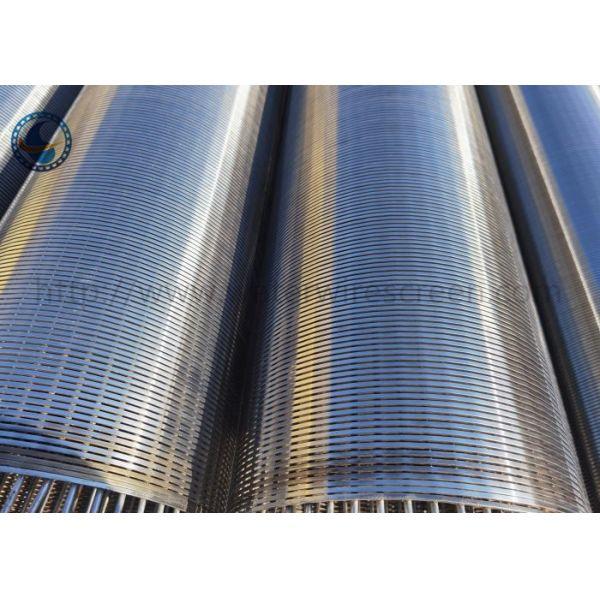

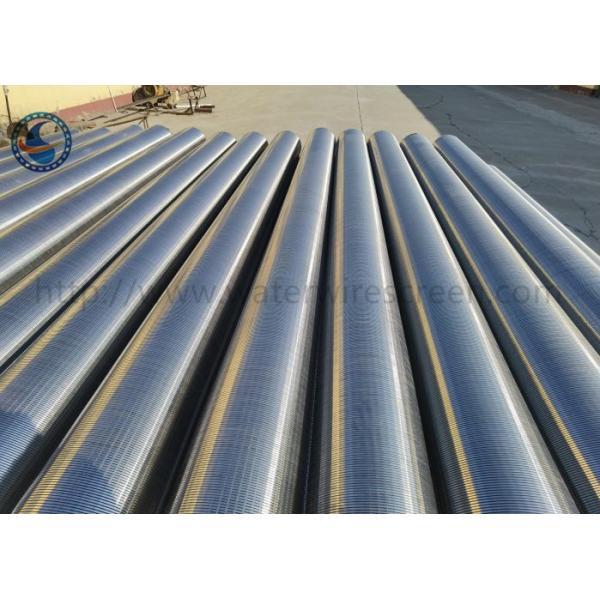

Stainless Steel Slot 40 Water Well Sand Control Wire Wrapping Screen Tube

Description:

The water well screen is a perforated water filter. It can be used with deep well pumps and submersible pumps, and can also be used in water treatment equipment, environmental protection, desalination of seawater into industrial water and domestic water, tap water treatment, water softening treatment, petrochemical industry, and terminal filtration of petroleum products. And the filtration of chemical acid and alkali liquid, the recovery and filtration of organic solutions such as alcohol.

Features:

1. The application of trapezoidal wire forms a V-shaped opening between the Schroder screen gaps. This design form works more efficiently than other forms of products, ensuring the smoothness of water filtration.
2. The continuous winding of the trapezoidal wire forms a continuous high-density uniform gap on the supporting wire arranged in a circular pattern, which ensures the opening area and non-blocking of the Schroeder screen, and avoids the high-density accumulation of sediments. Productivity and extended filter life are guaranteed.

Application of First choice of industrial Wire Wrap Screen

1. Water well smining & Mineral Processing
2. Municipal water supply, refining & petrochemical
3. Water treatment
4. Architecture and construction, etc.

OEM Specifications:

Material: stainless steel 201, 205, 304, 304L, 316L or low carbon galvanized
O.D.: 4, 6, 8, 10, 12 inch and as request.
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Length: 50mm-6000mm
End Connection: welded rings or thread couplings ( male / female )
Specification of the wrap wire:2*3.5mm, 2.2*3.5mm, 3*4.6mm ,3*5mm, 3*6mm,3*7mm.
Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

Special specification can be made according to your requirement !

Delivery details :

1. For small quantity, shipped by courier.Tracking number will be emailed to you after order has been shipped.

2. For large quantity, shipped by air or by sea. (According to your request)

  Will send the documents to you timely.
