Wastewater Treatment Wedge Wire Mesh Screen Anti - Corrosion 1.0 Mm Slot Opening
Stainless Steel 630mm Diameter Wedge Wire Screen For Wastewater Treatment
According to the surface of the wedge wire screen tube,There are two types of wedge wire screen tube seen from the surface.
1:One is the normal types, which has continuous and regular angles on the edge. It is economical, which is suitable for the applications where the accuracy is not very strict.
2:The other type is the perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.
Wedge Wire Screen Introduction

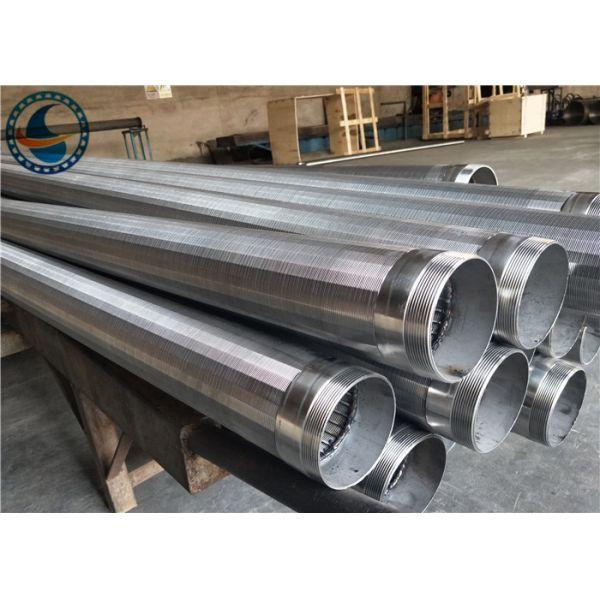

Wedge wire screen tube also called round slot tube.
It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
The wedge wire screen tube is composed of working profile and support profile.
It is produced on an automotive machine.
The support profiles are placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Wedge Wire Screen Basic Parameters
Material: Stainless Steel 304 ,316L etc.
Diameter:29-1300mm
Slot size (mm):0.5, 0.63, 0.75, 1.0,1.5mm in usual
Length: 2.9m or 5.8m in usual to fit container
End connection:male/female threaded couplings Or welded rings/plain beveled ends
| Tube Diameter | 25 mm-1500mm |
| Tube length | 0.3m-12 m. |
| Slot Size | 0.02mm-2.5mm |
| Surface Profile Type | Triangle Wire |
| Support Profile | Triangle Wire, Round Wire,Flat Bar or Wedge Wire |
Contact me:hengyuan1@aphywire.com Skype:songcc0209
---------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen, screen nozzle /water and gas strainer, sieve plate, slot mesh, ARC screen,header and hub laterals &hub radial lateral etc.
