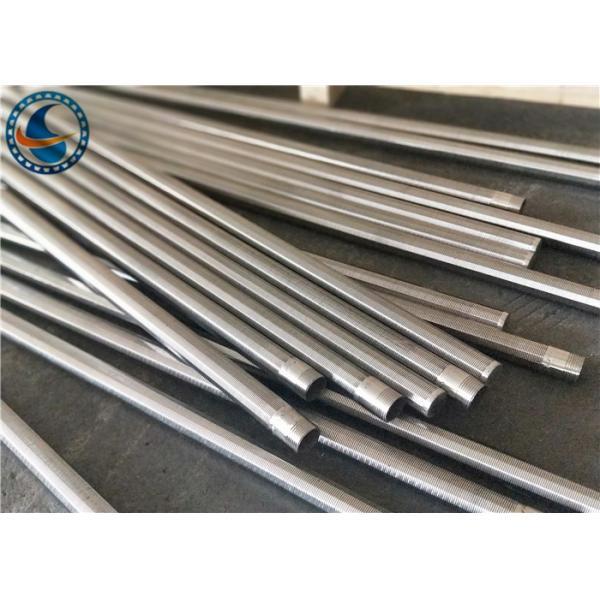

Stainless Steel Wedge Wire Screen Pipe OD 100mm For Wastewater Treatment
Professional OD 100mm Welded Wedge Wire Screen Non Plugging And Easy Clean
Stainless Steel Wedge Wire Screen Drum For Wastewater Treatment
Hengyuan Wedge Wire Screen also be named Wedge wire screen drum, Vee-Wire screen pipe, Continuous slot Vee-wire screen tube,Wire wrapped screen,Wire wound screen,water filter.
It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.Accurate slot and high filtration precision.
Wedge Wire Screen Drum Specification:
| Rotary Wedge Wire Johnson Screen Size | ||

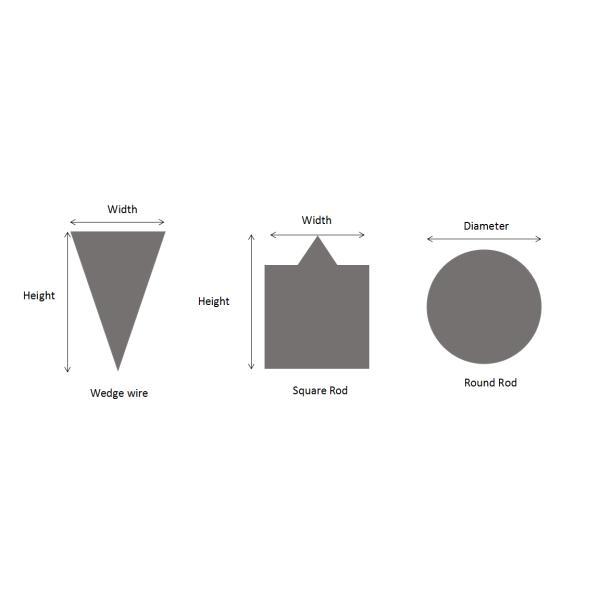

| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 | |
| Specification (support rods): | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm | |
| Note: other wires and rods available upon request | ||
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1200mm | |
| Screen end | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
| Advantage
| Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. | |
Wedge Wire Screen Drum Basic Parameters
